FITTING GUIDE
ADJUSTABLE CORNER
BASE UNIT
HEIGHT: 34 1/2”
WIDTH: 36”-42”
DEPTH 24”-25”
Sample cabinet shown

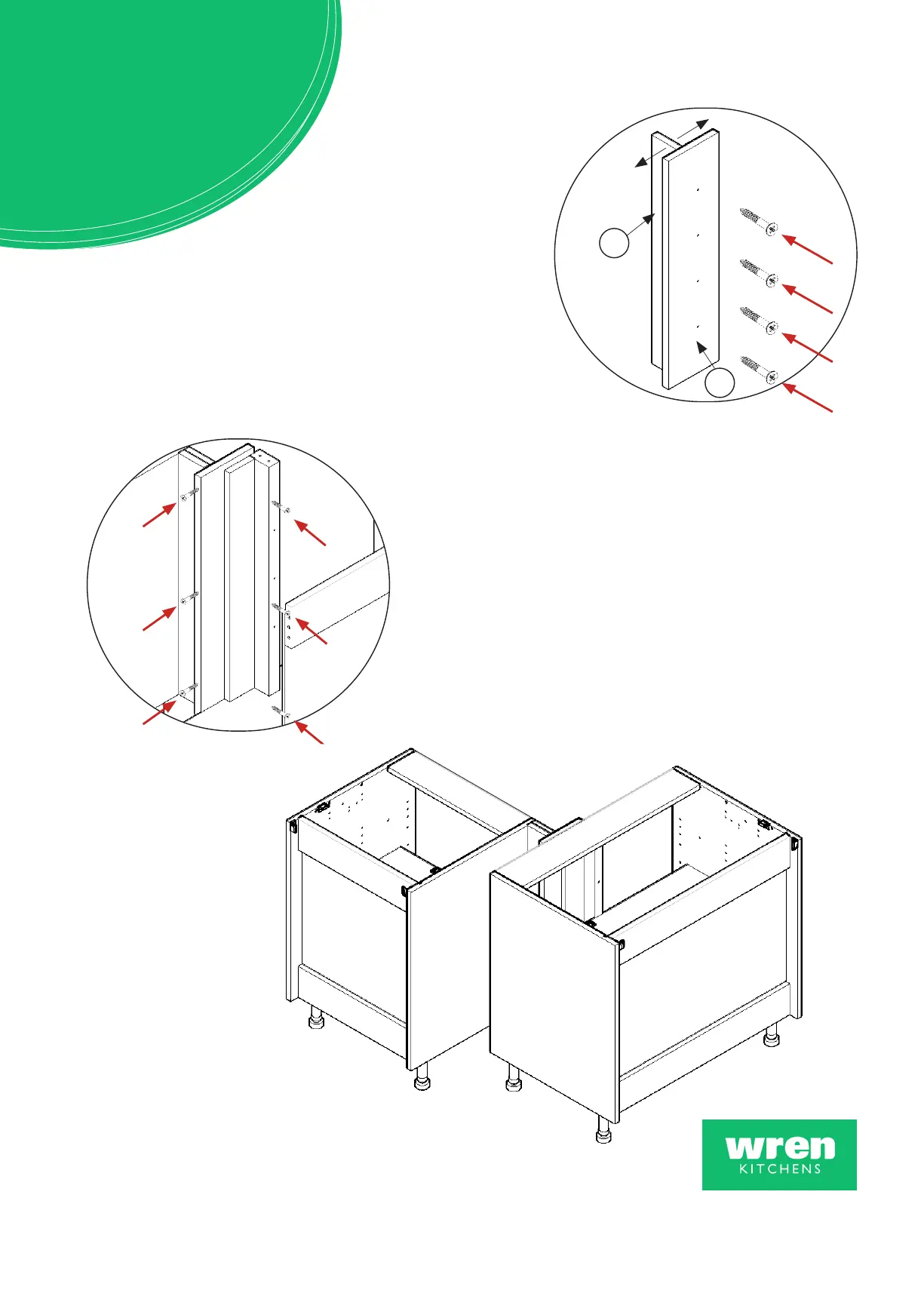

Step 6.
To create your corner post attach
panel (W) and panel (X) as shown.
screw through panel (W) into panel
(X) at 4 locations using
4 x 1 1/4” (H) screws.
Corner post size can be adjusted by
positioning panel (X) along panel (W).
Step 7.
Place your assembled corner post
into position then screw through
packers using 3 x 1 1/4” (H) screws
into each panel.
H
H
H
H
H
H
Page 2
Step 5.
Cut panel (X) to size according to
Kitchen Plan.
W
X
H
H
H
H
