Wren INFRAMED KITCHEN - Page 24

WALL UNIT
Inframed kitchen Wall Unit Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 24
Step 6.
Refer to Customer Specic Kitchen plan for unit layout and frame conguration.
Step 7.

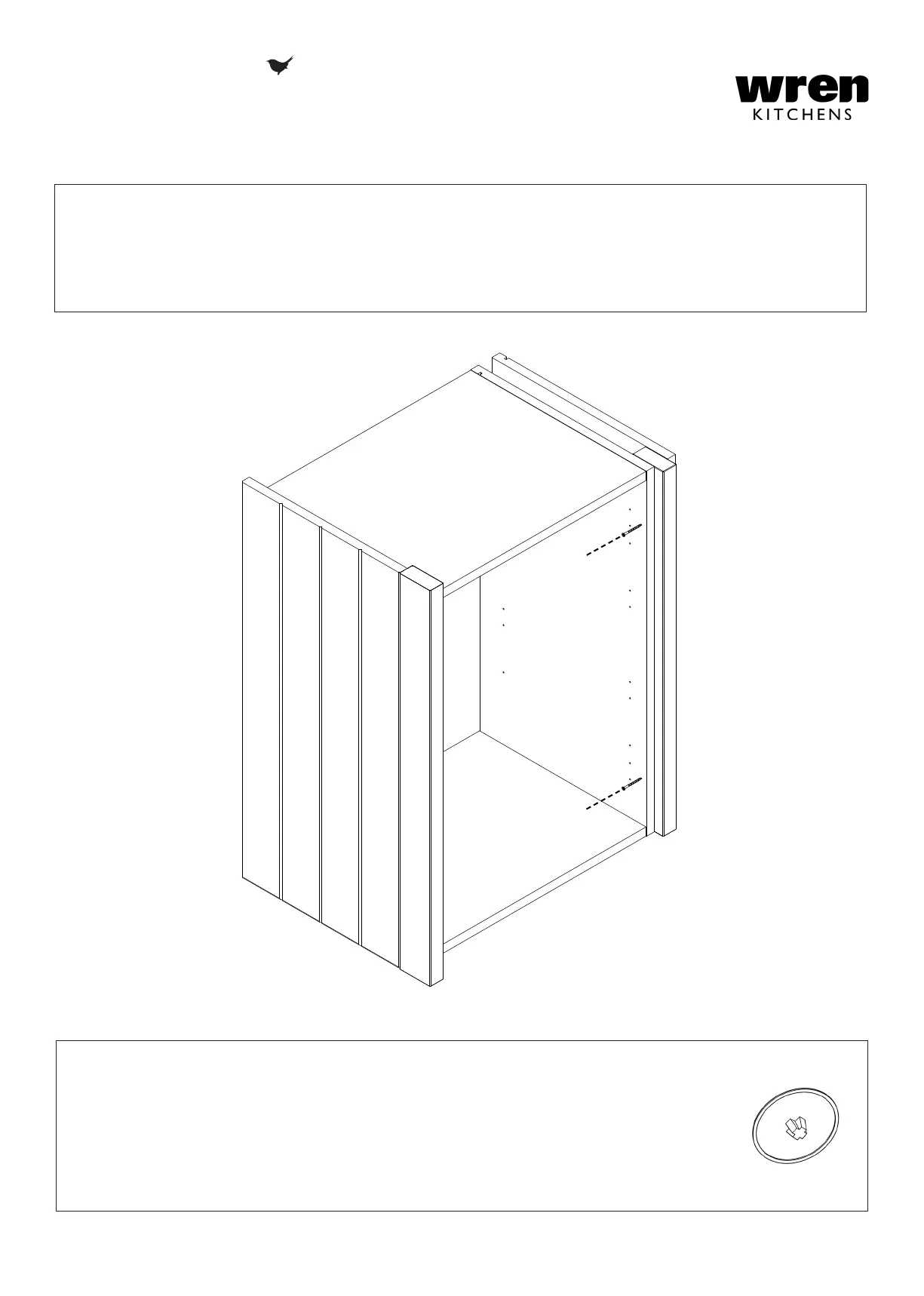

Using 2 x 40mm screws, attach 70 x 30mm rail to the end of the unit.
Ensure rail is positioned door thickness + 1.5 mm forward from the front of the unit.
Cover screw heads with cover caps.
The rail is ush with the top and bottom of the unit.
See Customer Specic Kitchen Plan for rail positioning.
