WARNING AND CAUTION
WARNING
WARNING
WARNING
CAUTION
To avoid personal injuries and/or equipment damage, be sure that every hydraulic
component of the hydraulic torque wrench, hydraulic hose assembly, hydraulic power
To minimize the danger of injury and damage to equipment: Never use a hydraulic
torque wrench without a hydraulic gauge to indicate the working pressure. The hydraulic
Immediately replace any worn or damaged parts of the tool with genuine WREN replacement
parts .
Reduce damage to the hydraulic hose assembly by avoiding sharp bends and kinks when
routing the hydraulic hose assembly. Using a bent or kinked hydraulic hose assembly will
cause severe back-pressure. Also, sharp bends and kinks will internally damage the hose
leading to premature failure. A kinked or damaged hydraulic hose assembly should be
replaced immediately.
DO NOT drop heavy objects, crush, or drive over the hydraulic hose assembly. A sharp
impact may cause internal damage to the hose wire strands. Applying pressure to a
damaged hose may cause it to rupture. A crushed hydraulic hose assembly should be
ITEM
NAME
①
②
③
④
⑤
⑥
⑧
⑦
LOW PROFILE CASSETTE
PIN
POWER HEAD
QUICK COUPLING
REACTION ARM
LINK PIN
RATCHET
360° 360 SWIVEL JOINT× °
⑨
360°SWIVEL JOINT

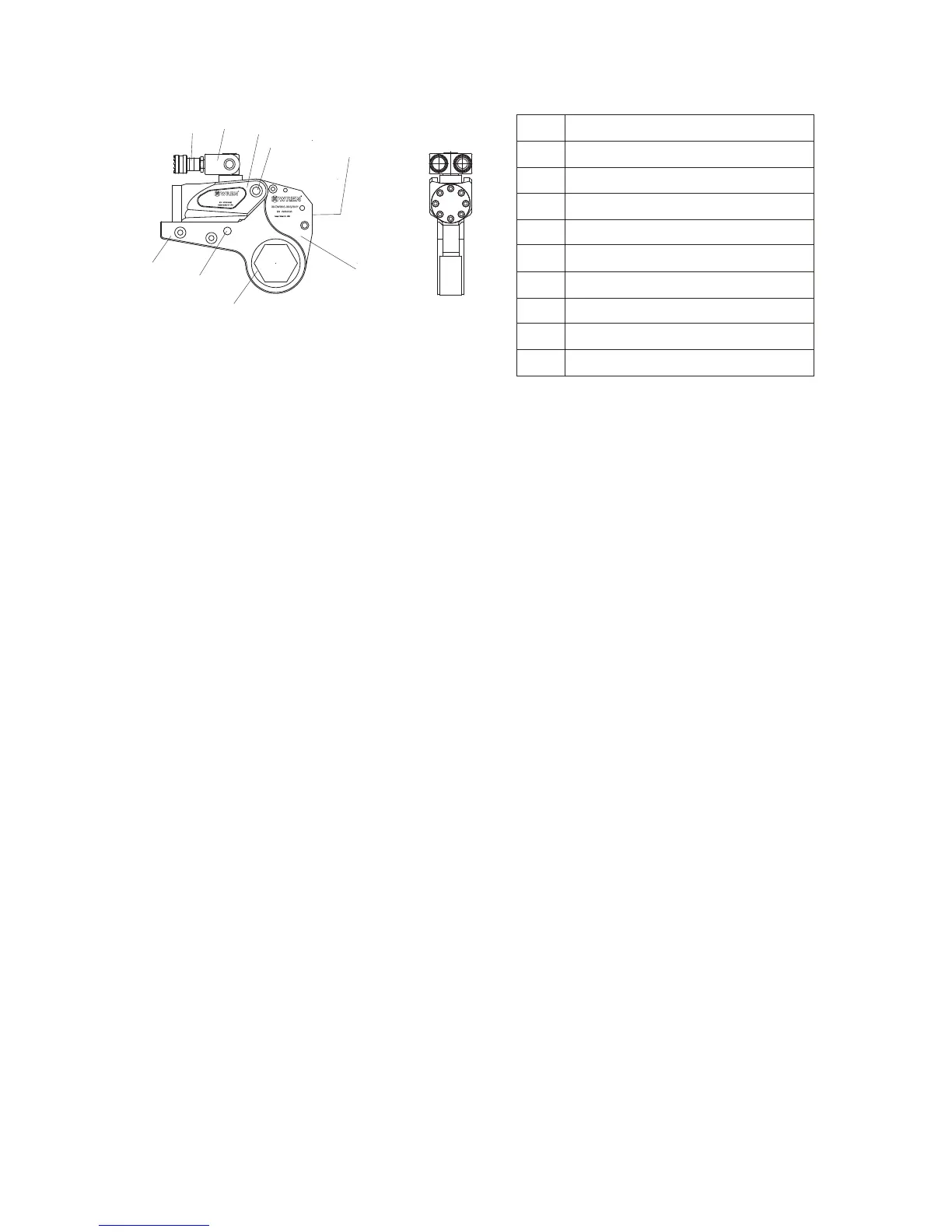

XLCT series,XLCT Porque Wrenches:
SIDE
①
⑤
⑥
⑧
⑦
④
③
②
⑨
SAFETY FIRST!
pack and gauge are rated for 10,000 PSI (700kg/cm2) operating pressure.
gauge is a window to show what is happening in the hydraulic system.
DO NOT exceed the allowable maximum torque of the hydraulic torque wrench.
CAUTION
replaced immediately.
Avoid high temperature exposure to the hydraulic hose assembly.
CAUTION
ALWAYS INSPECT THE HYDRAULIC HOSE ASSEMBLY FOR DAMAGE AND
WEAR PRIOR TO USE.
To avoid personal injuries, equipment damage and/or warranty invalidation:
DO NOT: Remove the shroud from the hydraulic torque wrench. Modify any component
of the hydraulic torque wrench. Adjust the hydraulic torque wrench safety relief valve
WARNING
located inside the swivel couplings.
