wsm 200M - 4 Operation; 4.1 Front Panel Layout

13
1
Current meter
2
Abnormal indicator
3
Pulse switch
4
TIG/MMA switch
5
2T/4T switch
6
Power switch
7
Down slope adjustment
8
Pulse frequency adjustment
9
Base current adjustment
10
Peak current adjustment
11
Negative output terminal
12
Gas connector
13
Hand switch socket
14
Positive output terminal
4 Operation
4.1 Front Panel Layout

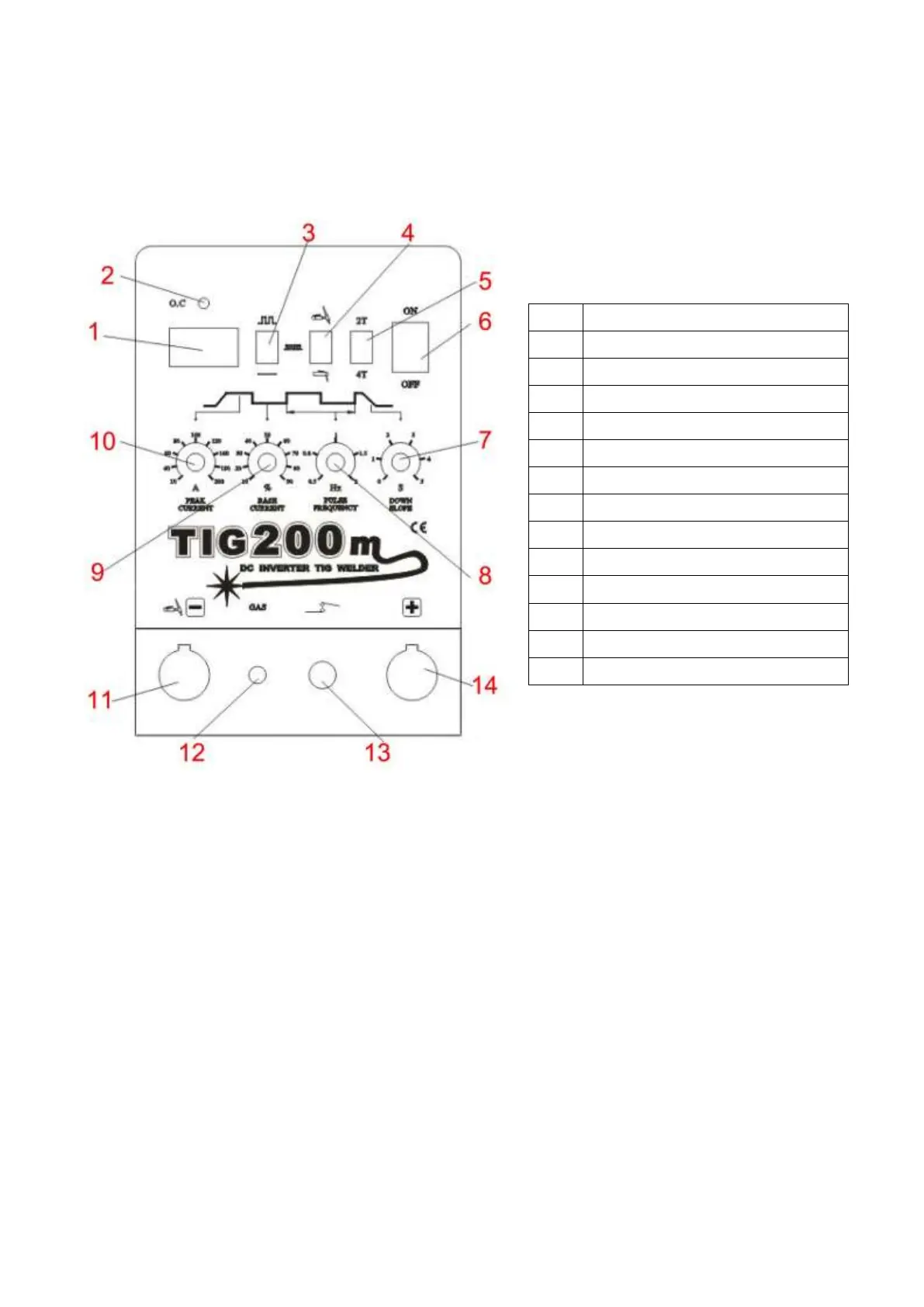

Note. The image above is for reference only. If any difference with the real machine, please follow
with the real machine.
