G-64
ME8200, ME9000, WSM
G GENERAL

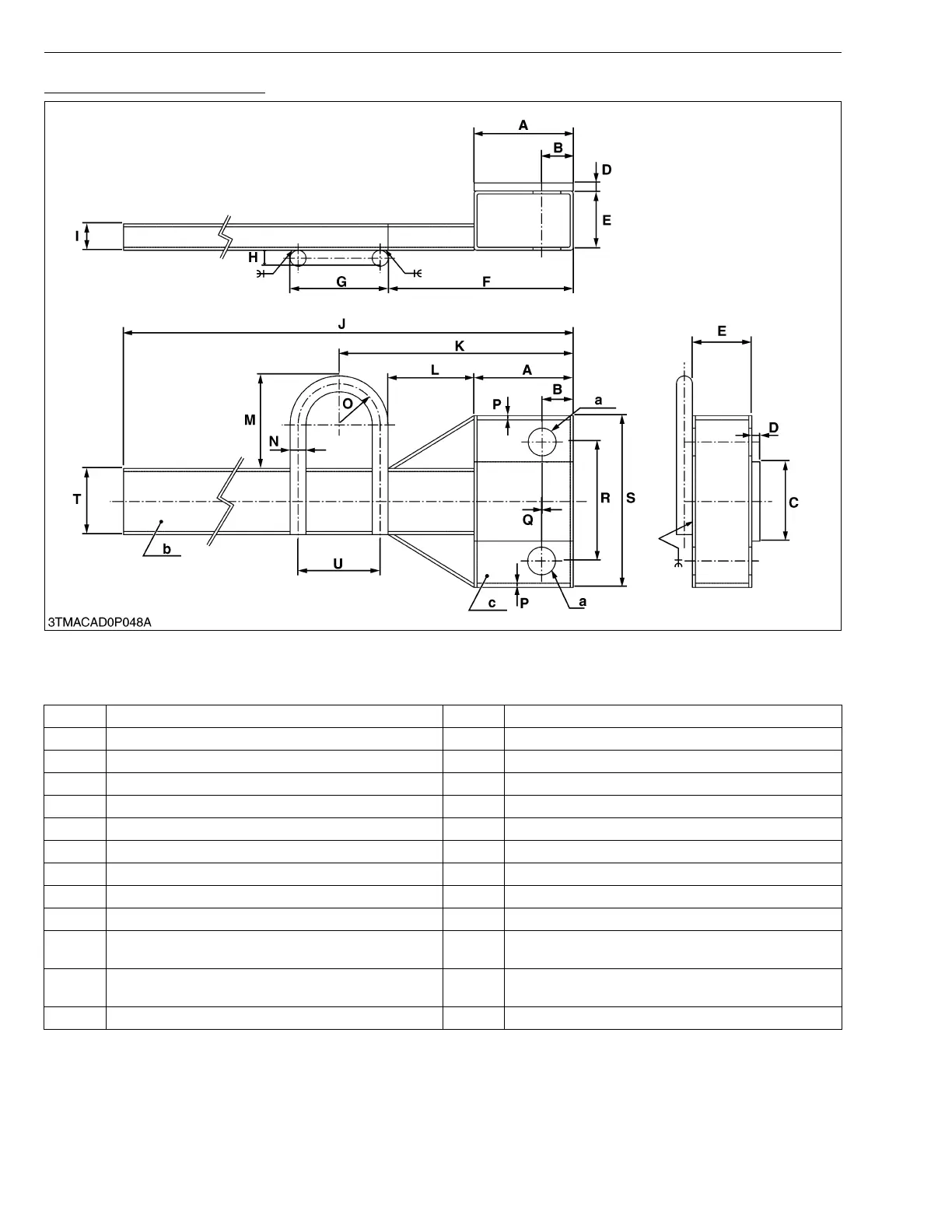

Hydraulic Cylinder Block Tool
Application : Use for separating a hydraulic cylinder block.
• The sealing surface of the connecting parts must be welded.
A 75 mm (2.95 in.) N 12 mm dia. (0.47 in. dia.)
B 24 mm (0.94 in.) O 31 mm radius (1.22 in. radius)
C 60 mm (2.36 in.) P t3.2 mm (t0.126 in.)
D 6 mm (0.24 in.) Q 4 mm (0.16 in.)
E 45 mm (1.77 in.) R 72.4 mm (2.85 in.)
F 140 mm (5.51 in.) S 130 mm (5.12 in.)
G 74 mm (2.91 in.) T 50 mm (1.97 in.)
H 12 mm (0.47 in.) U 62 mm (2.44 in.)
I 20 mm (0.79 in.)
J 1580 mm (62.2 in.) a 21 mm dia. (0.83 in. dia.)
K 177 mm (6.97 in.) b
Square steel tube 50 mm x 20 mm x t2.3 mm
(Square steel tube 1.97 in. x 0.79 in. x t0.09 in.)
L 65 mm (2.56 in.) c
Square steel tube 75 mm x 45 mm x t2.3 mm
(Square steel tube 2.95 in. x 1.77 in. x t0.09 in.)
M 70 mm (2.76 in.)
To Next Page
