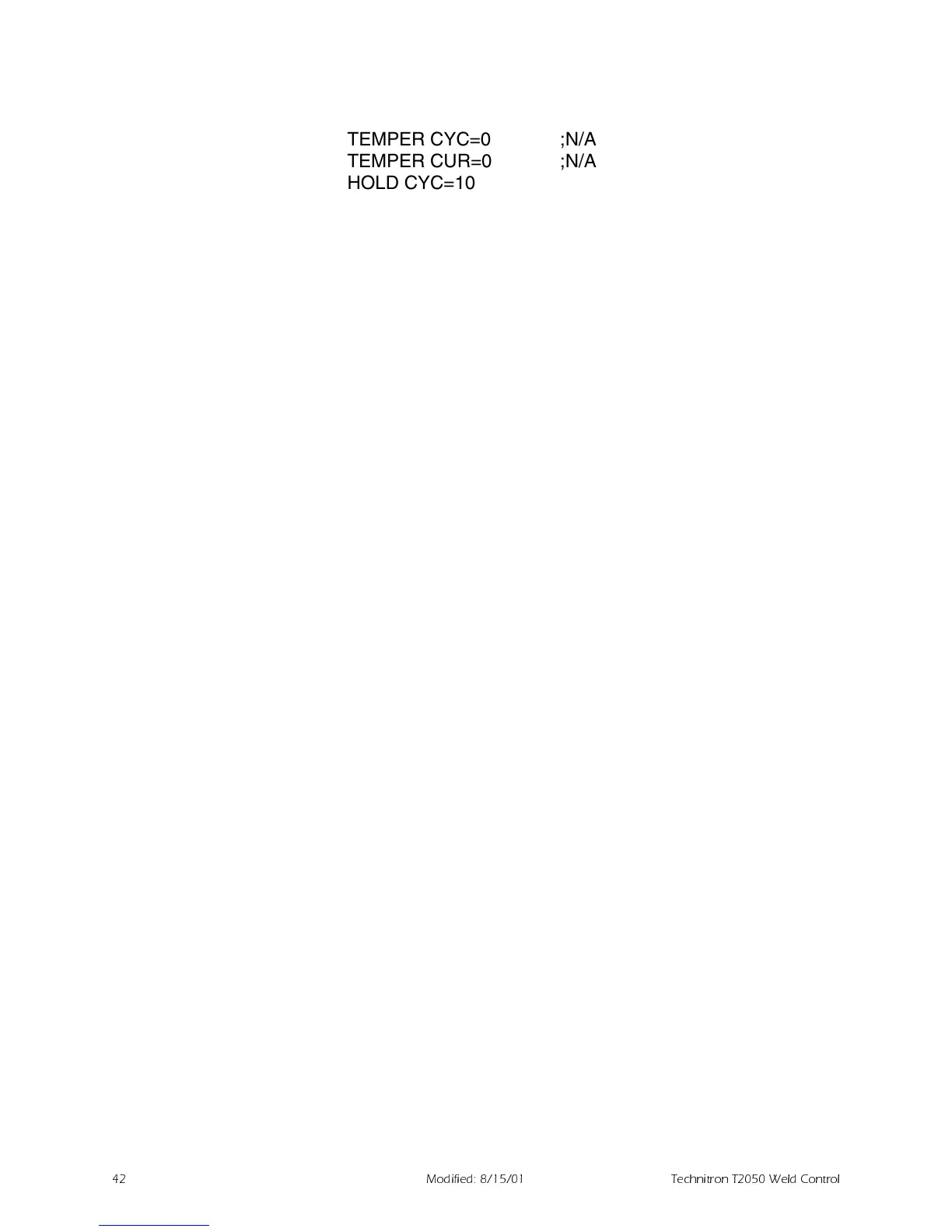

TEMPER CYC=0 ;N/A
TEMPER CUR=0 ;N/A
HOLD CYC=10 ;N/A
WELD COMPLETE=0 ;N/A
SUCCESSIVE SCH=0 ;N/A
CHAIN SCH=2 ;The part is now clamped go to
Schedule #2 and make the first
weld
OFF CYC=0 ;N/A the sequence jumped to
Schedule #2.
&RQILJXUDWLRQ
3DUDPHWHUV
LOW CURRENT = Your values. Remember: There is a value for
each schedule (Schedules #2 and #4 weld).
STEPPER COUNT1 = Your choice. (There is only one stepper in
binary valve mode.)
INCREASE 1 = Your choice. (There is only one stepper in binary
valve mode.)
STEPPER COUNT2 = Your choice. (There is only one stepper in
binary valve mode.)
INCREASE 2 = Your choice. (There is only one stepper in binary
valve mode.)
PARTS COUNTER=25 After 25 parts are made, initiation will be
blocked. The operator replaces the box.
WELDS PER PART=2 The operator resets the parts counter, and
welding can resume. There are two welds per part.
TURNS RATIO = Weld transformer Turns Ratio.
AVC SETPOINT = A value near line voltage.
