DCC-XP V6
Rack control
with integrated condensation pressure control
DCC-XP_V6.5.0_PI_2021-08_EN Subject to technical changes Page 3 of 4

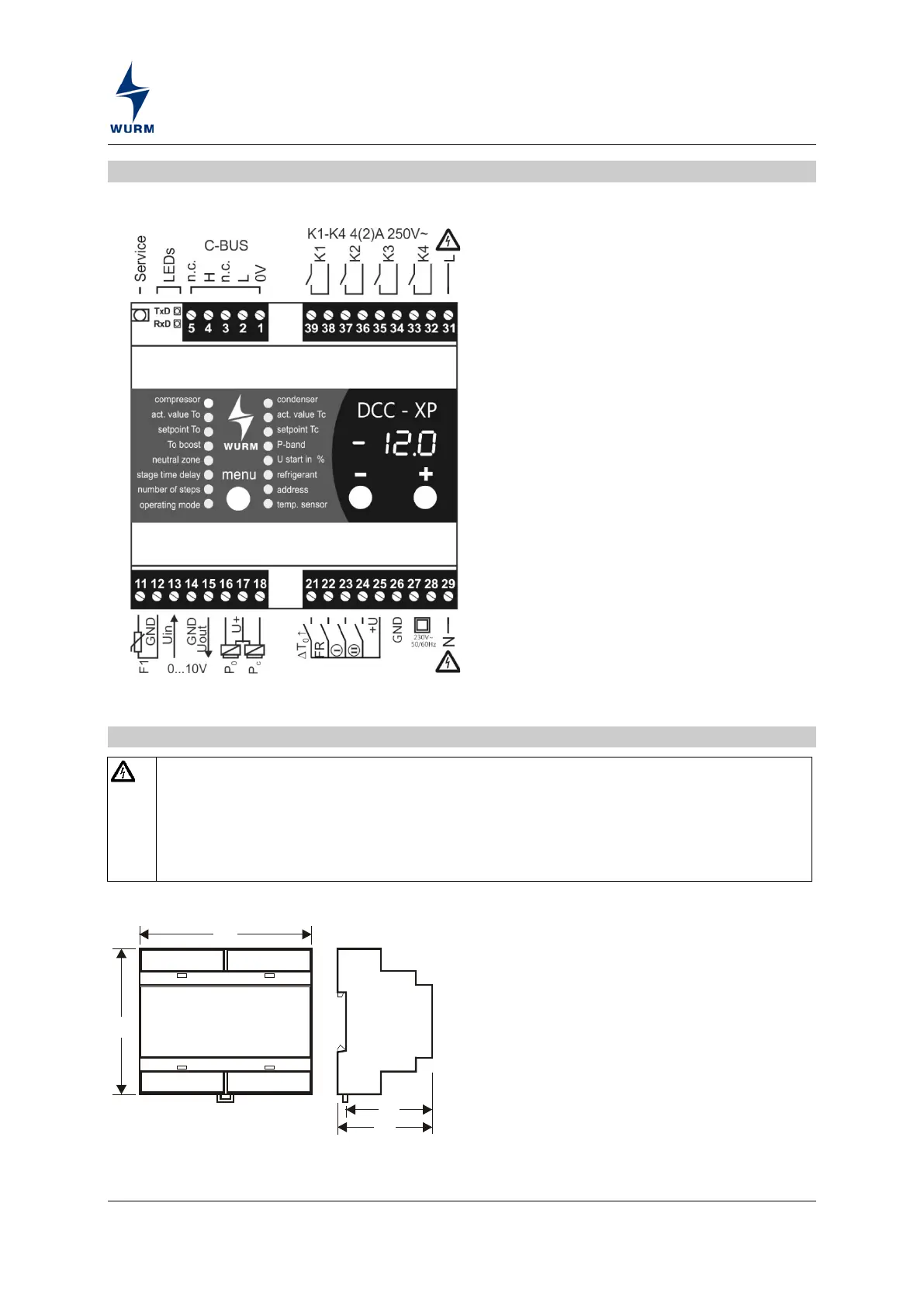

Circuit diagram
C-BUS interface Output relay
Pressure sensor Digital inputs
Installing and connecting
Danger to life from electric shock and/or fire!
Switch off the power to the entire plant when carrying out installation, wiring or
removal work. Otherwise a mains voltage and/or external voltage may still be
present even if the control voltage is switched off.
Always remove both power
This device is designed for top-hat rail
installation. The housing is a standard size
and is also suitable for installation in fuse
boxes.
The devices can be positioned next to one
another without gaps.
