Copyright © Vertical Leisure Ltd. 2017 | All rights reserved. Version: 1.02
9
LIFTING THE A-FRAME
As the A-FRAME will be assembled on the oor and then lifted into position, it is important to allow enough space to do so.
When lifted into position, make sure the feet are at, by gently shaking the 2 legs each person is holding and slowly pulling
outwards.

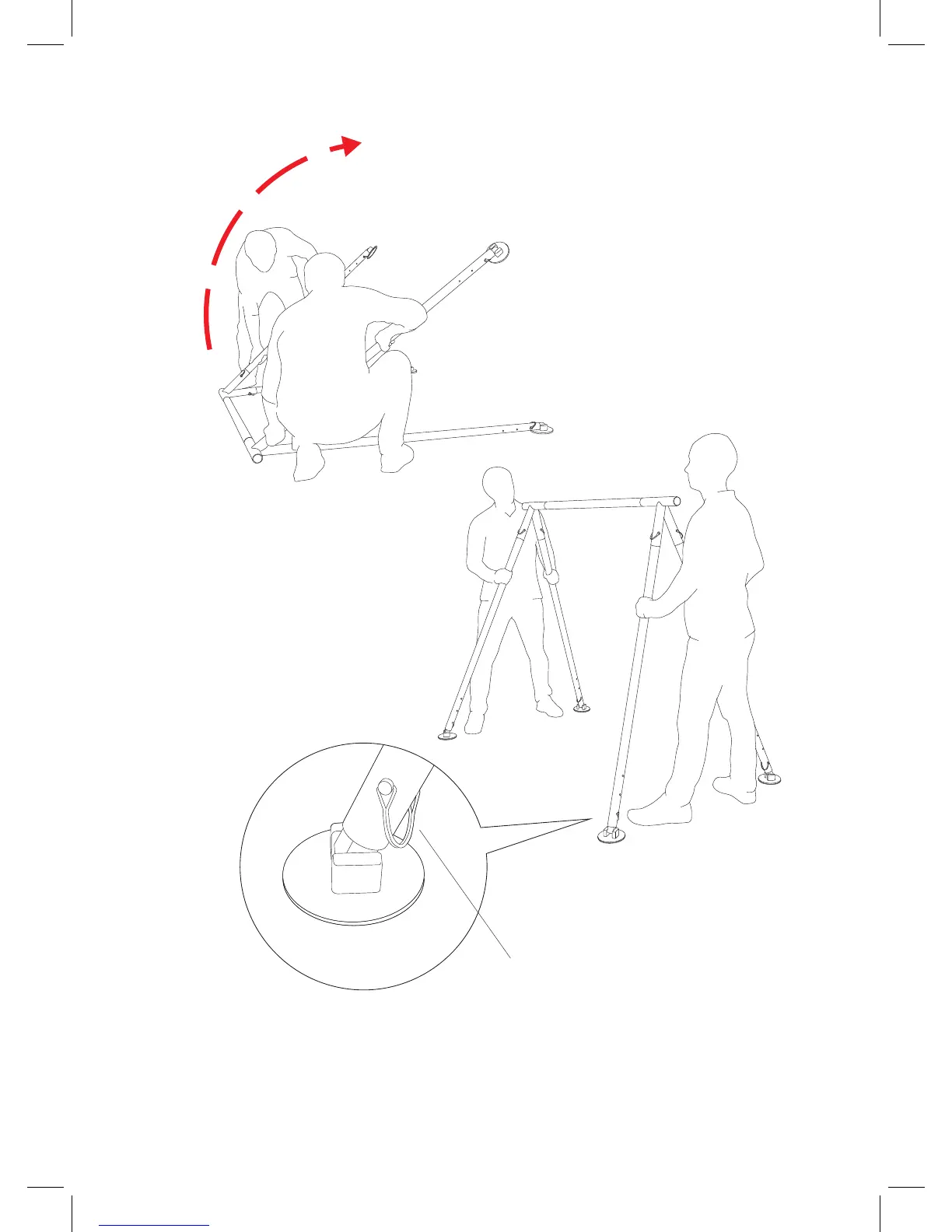

Note: Now lift the A-Frame as shown in Fig.2.0,
make sure this is done by two people.
Head of pin outside of A-Frame
Fig 2.0
Fig 2.1
