X-PROGRAM X-A10 - X-A30 Speaker Wiring: Two Speakers and Subwoofer

To Next Page

To Previous Page

X-A30

For power wiring, see page 4

For High or low level input wiring, see page 5

Filter settings -Sub channel

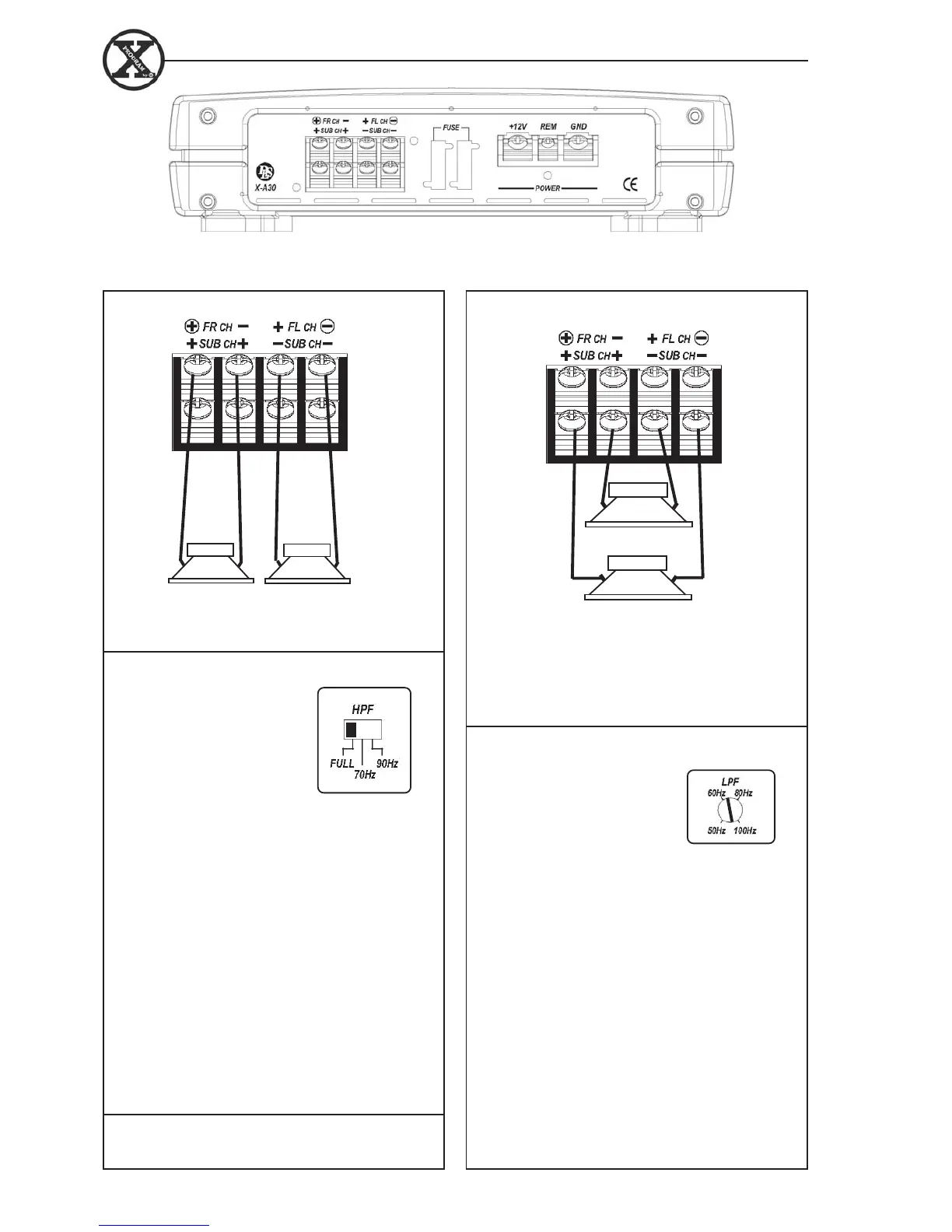

Speaker wiring X-A30

1. Two fullrange speakers to the front channels

Filter settings R & L - stereo channels

One or two subwoofers to sub channels,

Each speaker min 4 ohm.

Connect to the upper terminals for

FR CH and FL CH.

Connect to the lower terminals for SUB CH + and -.

NOTE!

Minimum amplifier load is 2 ohm, lower

impedances may damage the amplifier. This

connection gives a 2 ohm load with two 4 ohm

subwoofers.

The low pass filter (LPF)

is used for subwoofers.

It will allow low

frequencies only and

blocks higher frequencies.

A typical setting is 60 –

70 Hz.

The LPF filter can not be switched OFF.

The high pass filter (HPF)

blocks very low

frequencies from reaching

the speakers. It is mostly

used to protect small

speakers ( like 5 inch and

smaller ) from deep bass.

Set the swich in position 70 Hz or 90 Hz to activate

the filter. Test which setting sounds best.

The filter can be set at FULL position if you want to

run the amplifier in full range mode without limiting

the frequency range.

4 ohm
