 4

1.3 Product Views

1.3.1 Front View

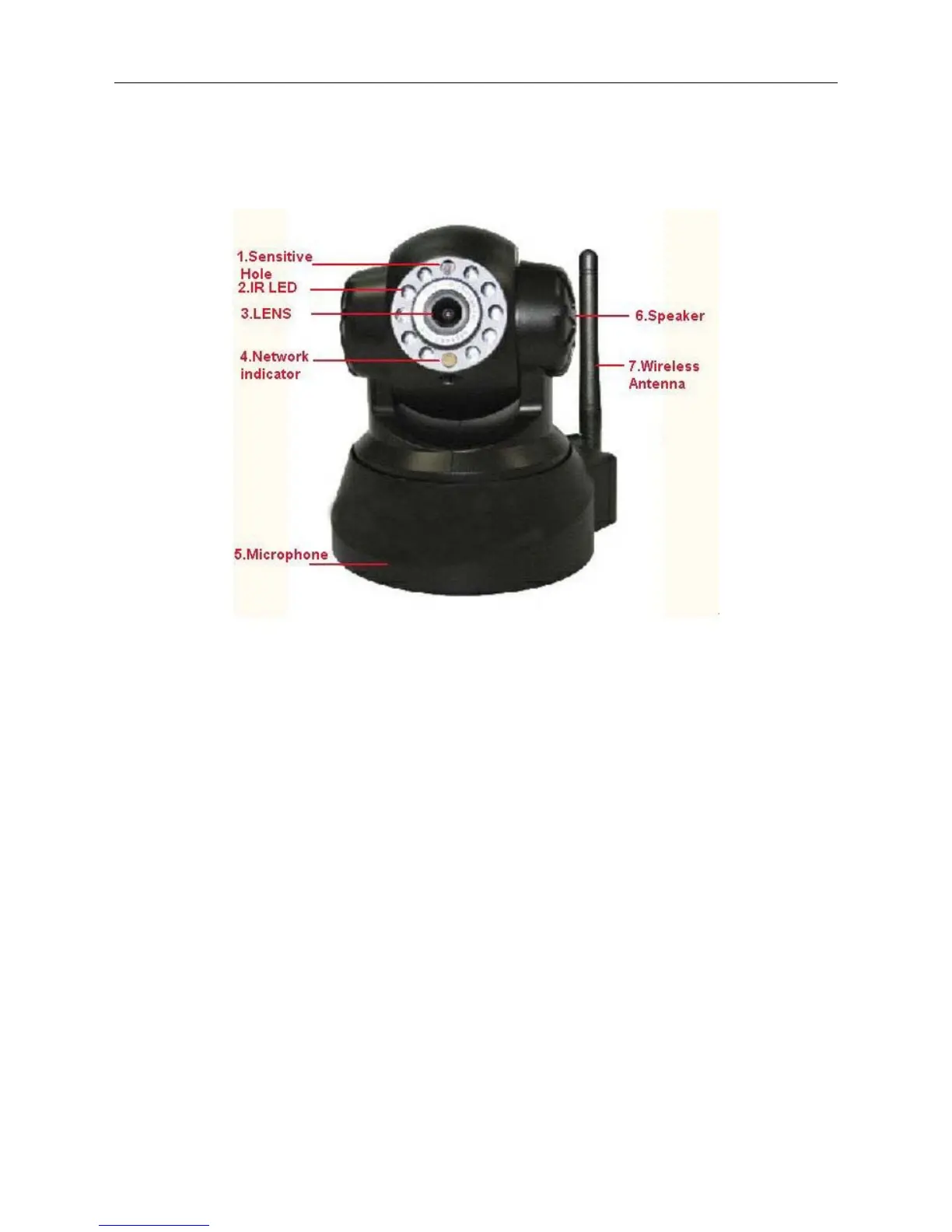

Figure 1.1

1 Light Sensitive Hole: For light sensitive photocell

2 Infrared LED: 10 LEDs

3 LENS: CMOS sensor with fixed focus lens. (Default is 6mm, 3.6mm optional)

4 Network Indicator LED: If there is network activity, the LED will blink

5 Microphone: Build-in microphone

6 Speaker: Build-in speaker

7 Wireless Antenna: WI-FI Antenna
