1.3.2 Rear Panel

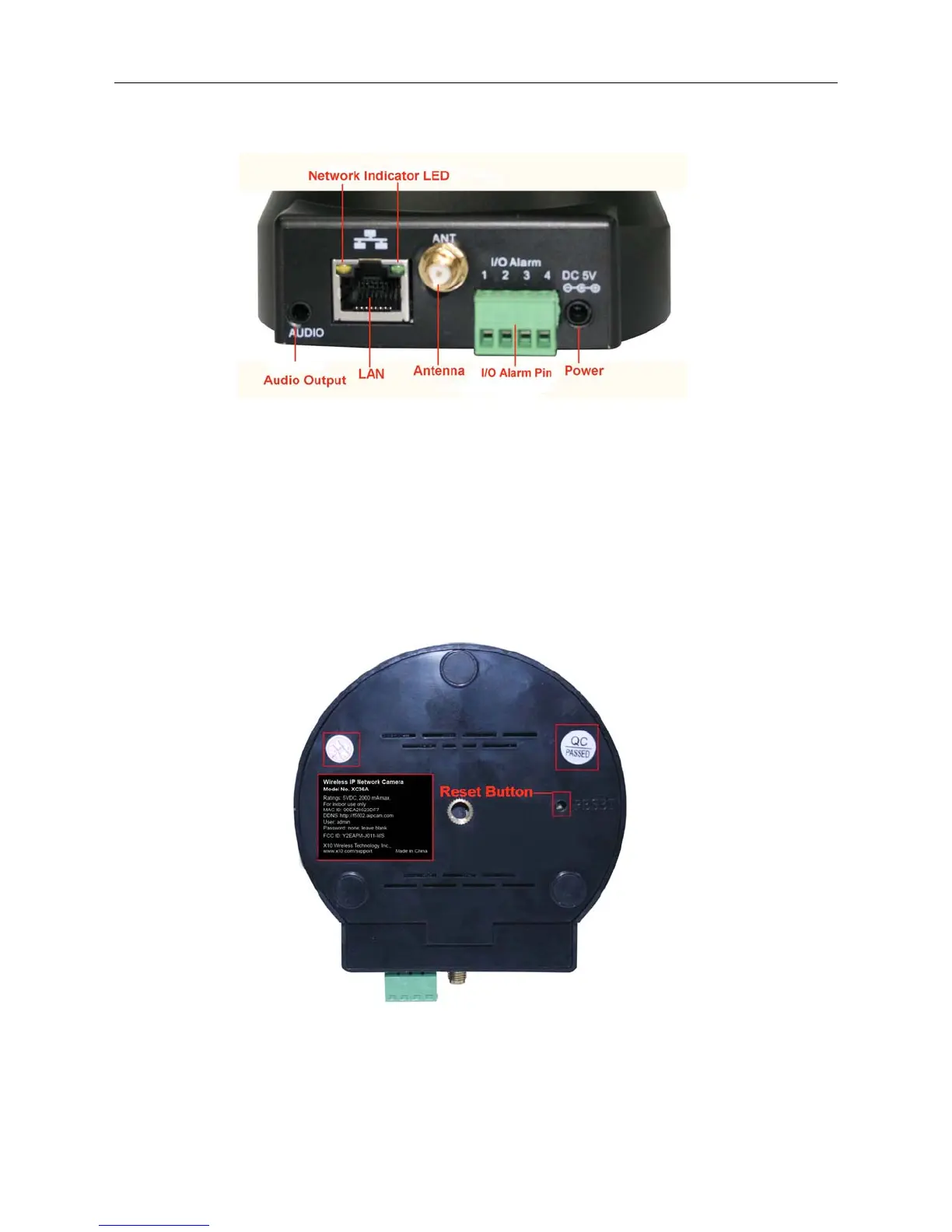

Figure 1.2
LAN: RJ-45/10-100 base T
Power: DC 5V/2A power supply
Network Light: The green LED is on when connected to the network, the yellow LED blinks when data is
transferred.
Audio Output: The jack is used to connect an external speaker
I/O PINS: 1: Output A 2: Output B 3: Alarm input 4: Input (GND)
1.3.3 Bottom View
Figure 1.3
Please note the unique MAC and DDNS addresses on the bottom of the camera (different for every camera).
RESET BUTTON: Press and hold the RESET BUTTON for 15 Seconds to reset the camera back to the
factory default settings. (Please keep the power on when doing a RESET)
