Xantech D5KP User Manual

- 11 -
3. Connections
ZONE OUT – D5RH
The ‘ZONE OUT’ RJ-45 connector’s interface with D5KP Amplified Keypad through CAT-5 cables
wired to the T-568A Standard. These connectors carry IR information from the keypad as well as
audio information to the D5KP Amplifier Keypad. Status information is also carried between the D5RH
chassis and the Amplifier Keypads. While a great deal of information is handled by the ‘ZONE OUT’
connections, the connections are straightforward. Simply connect CAT-5 cables terminated to the T-
568A configuration (Figure 2.0) from each Amplifier Keypad to the corresponding ‘ZONE OUT’
connector as shown in Figure 3.0.
Note: For wire runs up to 150', the CAT-5 connections are all that is necessary. For wire runs over 150', use the AUX
POWER OUT connectors as described in the section entitled Auxiliary Power Connector (AUX POWER OUT).
Cat-5
Cat-5
Cat-5
Cat-5
D5KP Rear
D5KP Rear
D5KP Rear
D5KP Rear
L+
L-
R+
R-
SPEAKERS
PWR IN
+
-
L+
L-
R+
R-
SPEAKERS
PWR IN
+
-
L+
L-
R+
R-
SPEAKERS
PWR IN
+
-
L+
L-
R+
R-
SPEAKERS
PWR IN
+
-
D5RH

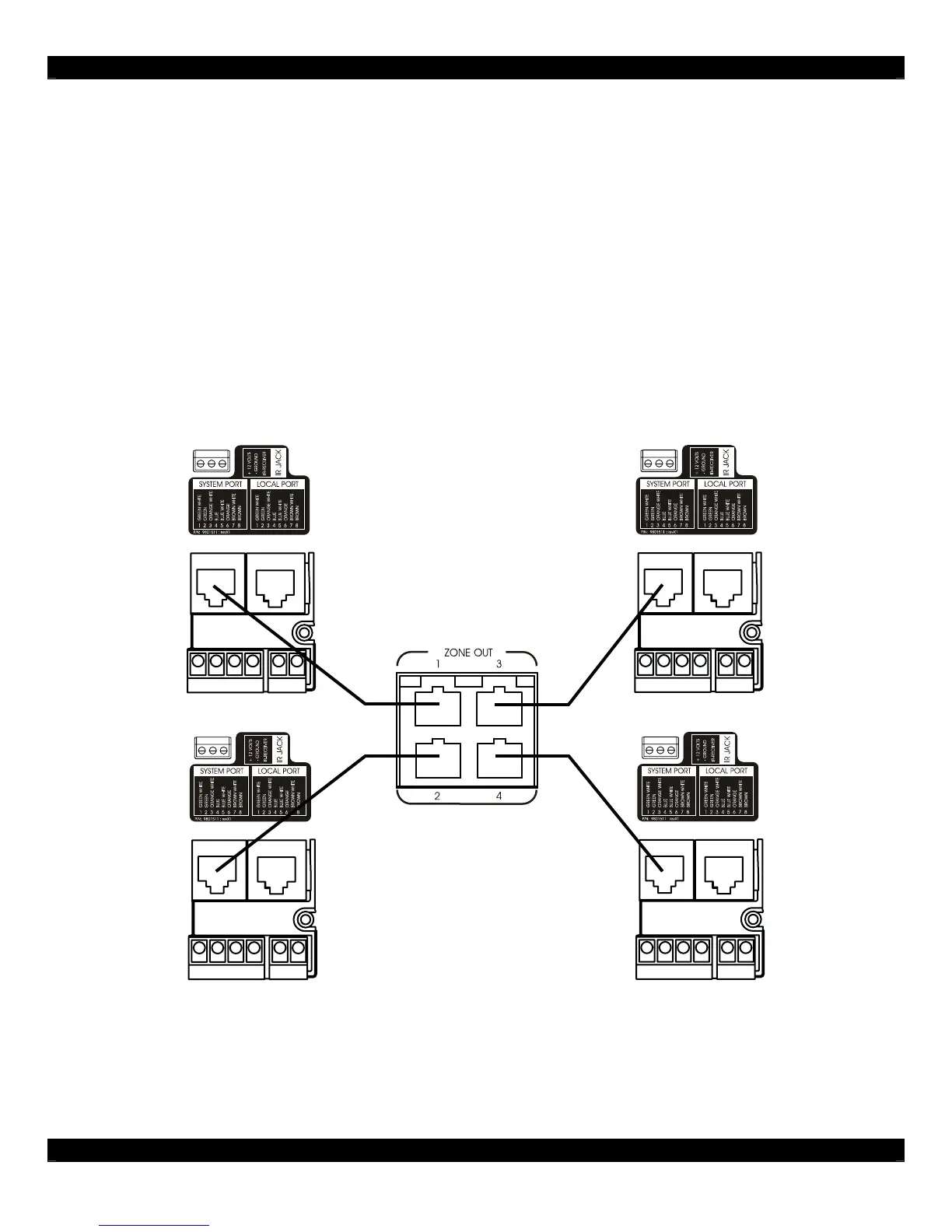

Figure 3.0: ZONE OUT Connections
