Features

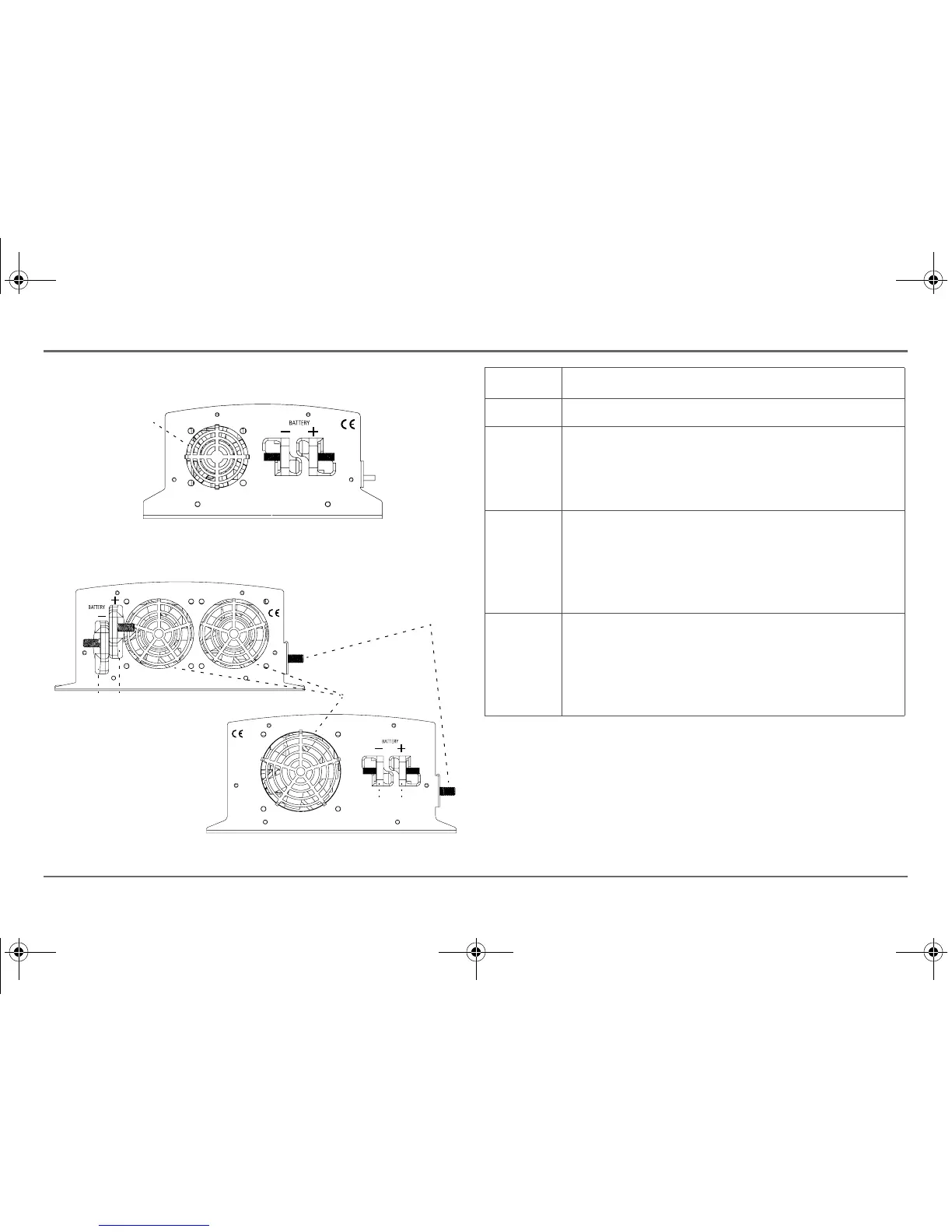

Back Panel Details
Figure 4
PROwatt SW 700i shown
Figure 5
PROwatt SW 2000i (left), PROwatt SW 1400i (right)
1
2
3
4
1
2
3
3
4
4
Feature Description
1 Chassis Ground (GND) Terminal
2 Cooling Fan/s
Automatically turns on when internal temperature
reaches more than 50 °C (122 °F). It turns off when
the internal temperature falls below 50 °C (122 °F).
3 Negative (–) DC Terminal
Accepts lug or ring connectors appropriate to the
cable size being used. See Table 1 : Voltage Drop
Per Foot of DC Cable on page 10 for
recommendations.
4 Positive (+) DC Terminal
Accepts lug or ring connectors appropriate to the
cable size being used. See Table 1 : Voltage Drop
Per Foot of DC Cable on page 10 for
recommendations.
