PODSETUP:
Integrating the LightStrike® Robot
9. Raise the frame to the tall setting aligning the next set point indicators on the frame. (Fig: 2G)
NOTE: The tall setting allows the cargo door of the pod to open to a usable height of 86 inches or 7 feet 2
inches (2.18 meters).
10. Finish securing the envelope to the frame by wrapping all of the upper Velcro security straps to each
corner post. There are 6 on the long side of the envelope and 4 on the le side.
(Fig: 2H).
NOTE: The 4 straps at the top may need to be loosened to adjust pod height.
11. Secure the sewn in storage straps out of the way during use.
(Fig: 2i&K)

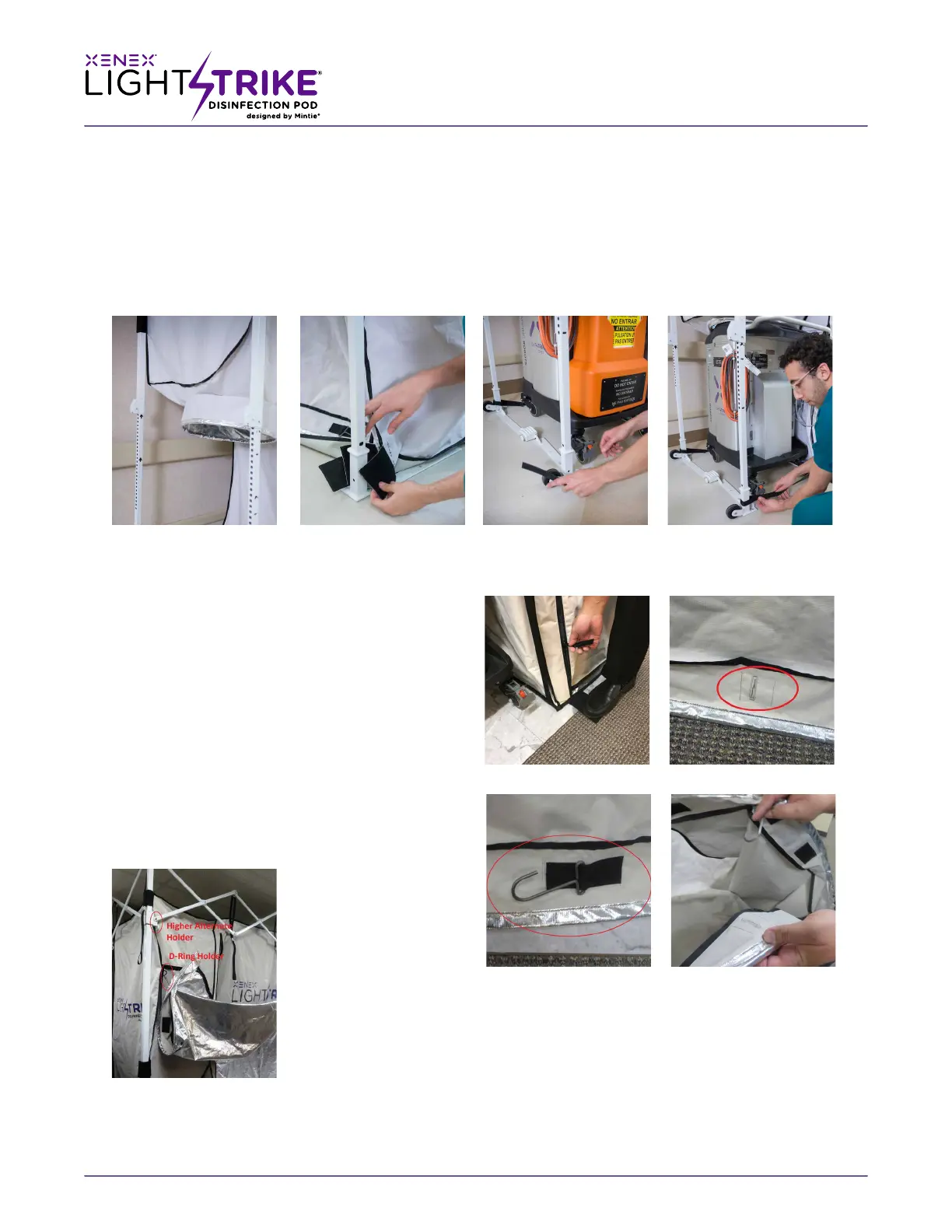

(Fig:2G)
(Fig: 2i)
(Fig: 2H) (Fig: 2K)
Set Up: Integrating the
LightStrike® Robot
1. Unzip the two zippers of the cargo door, located on
the sides of the door and zip upward from the door
to the end of the zipper track near the top of the
Pod
(Fig: 3A)
2. On the le side along the bottom edge of the cargo
door, locate the vertical hook keeper
(Fig: 3-B) and on
the right side locate the hook
(Fig: 3-C). Folding the
bottom of the envelope over on itself, push the hook
through the keeper
(Fig: 3-D) and hang the envelope
through the “D” ring sewn into the le edge of the
envelope
(Fig: 3-E).
NOTE: This holds the door
in an open position during
loading and unloading
equipment. You can also
hang the hook higher up
on the upper cross truss to
provide a taller opening.
(Fig:3A) (Fig: 3B)
(Fig: 3D)(Fig: 3C)
(Fig: 3E)
