16 XENYX X2442USB/X2222USB/X1832USB/X1622USB User Manual
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
Connect the insert send with the input and the
insert return with the output of the eects device.
Insert send return ¼" TRS connector
ring
return (in)
tip
send (out)

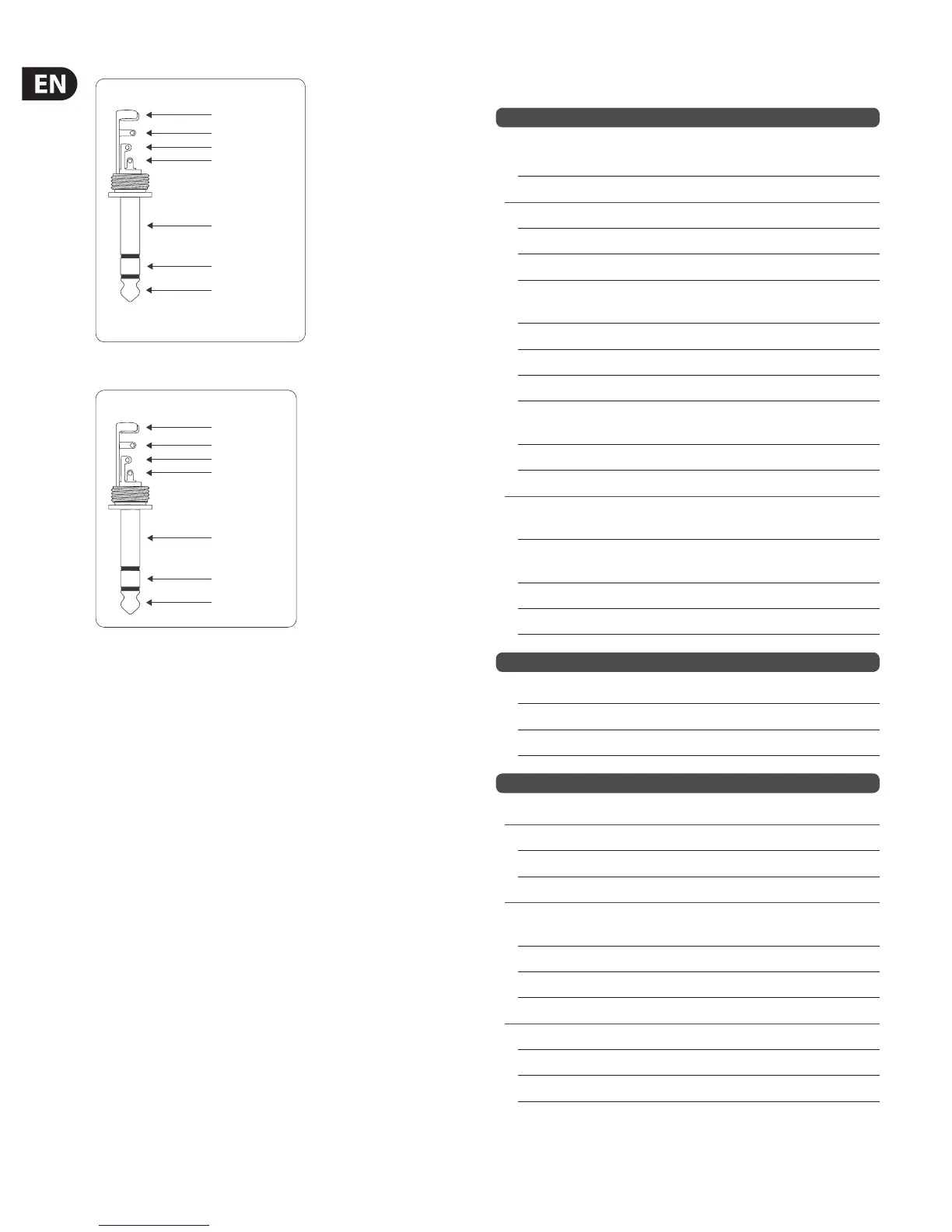

Fig. 6.5: Insert send/return stereo plug
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
¼" TRS headphones connector
ring
right signal
tip
left signal
Fig. 6.6: Stereo plug for headphones connection
7. Specications
Microphone Inputs (XENYX Mic Preamp)
Type XLR, electronically balanced,
discreteinput circuit
Mic E.I.N. (20 Hz - 20 kHz)
@ 0 Ω source resistance -134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance -131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance -129 dB / 130.5 dB A-weighted
Frequency response <10 Hz - 150 kHz (-1 dB),
<10 Hz - 200 kHz (-3 dB)
Gain range +10 to +60 dB
Max. input level +12 dBu @ +10 dB Gain
Impedance approx. 2.6 kΩ balanced
Signal-to-noise ratio 110 dB / 112 dB A-weighted
(0 dBu In @ +22 dB gain)
Distortion (THD + N) 0.005% / 0.004% A-weighted
Line Input
Type ¼" TRS connector
electronicallybalanced
Impedance approx. 20 kΩ balanced
10 kΩ unbalanced
Gain range -10 to +40 dB
Max. input level 30 dBu
Fade-Out Attenuation
1
(Crosstalk Attenuation)
Main fader closed 90 dB
Channel muted 89 dB
Channel fader closed 89 dB
Frequency Response
Microphone Input to Main Out
<10 Hz - 90 kHz +0 dB / -1 dB
<10 Hz - 160 kHz +0 dB / -3 dB
Stereo Inputs
Type ¼" TRS connector,
electronicallybalanced
Impedance approx. 20 kΩ
Max. input level +22 dBu
EQ Mono Channels
Low 80 Hz / ±15 dB
Mid 100 Hz - 8 kHz / ±15 dB
High 12 kHz / ±15 dB
