Parts Overview
2 Xerox Nuvera, iGen Production System Production Media Cart
Production Media Cart User Guide
Parts Overview

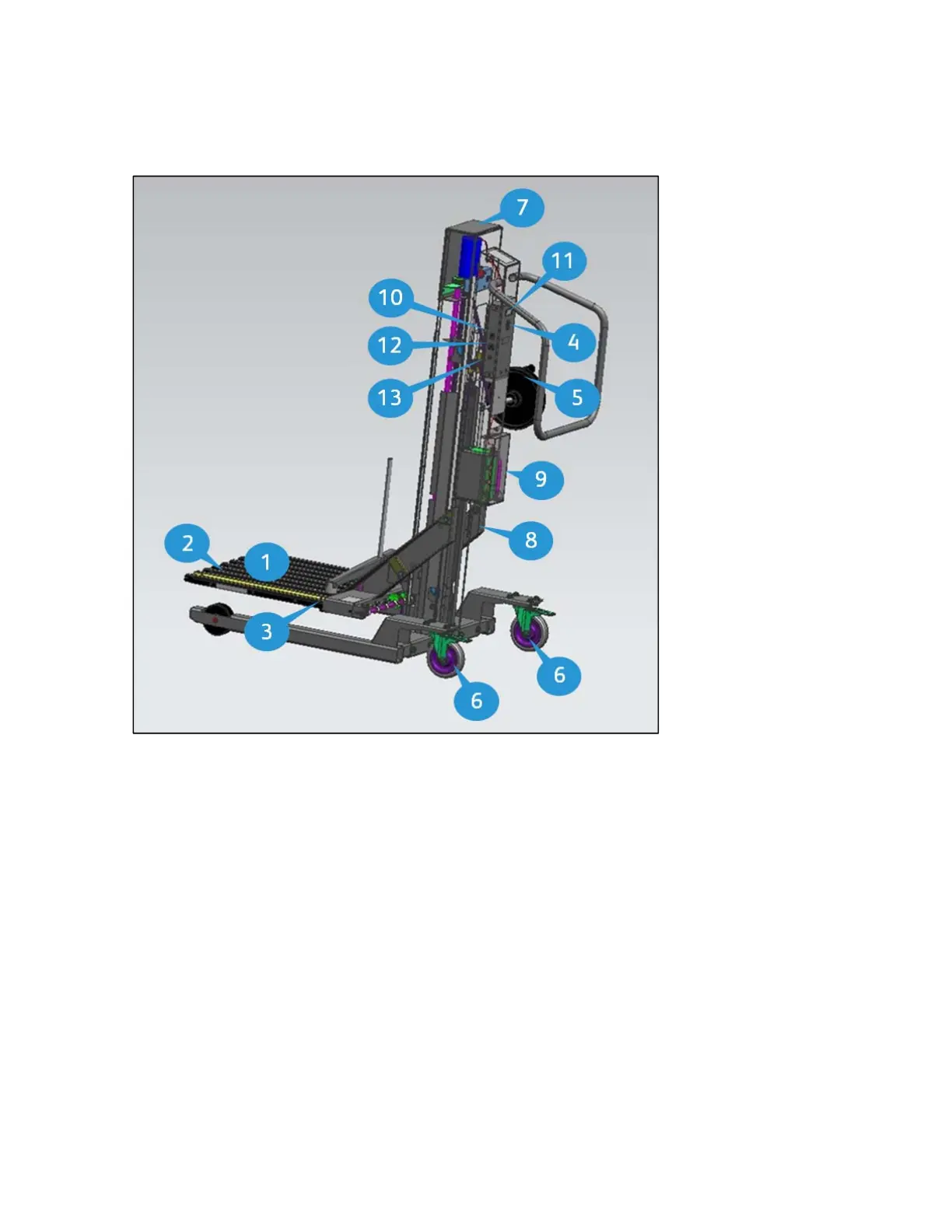

1. Hands-Off Stack Transfer (HOST): Activated with the stack transport handle to transfer the
paper stack onto a work table.
Paper table: Bears the paper stack during transport. Tines dock with the stacker for paper
stack pickup.
2. Alignment tine: Single yellow tine helps position the Cart for docking with the XPS Stacker.
3. Paper stack clamp: Keeps the paper stack secure during transport.
4. Elevation button: Changes the height at which the paper stack is loaded onto and off of
the Cart.
5. Stack transport handle: Activates the paper stack transport system to move the paper stack
from the Cart onto a work table or other finishing device.
6. Locking casters: Lock: Stabilizes the Cart during transfer of the paper stack to and from the
Cart. Unlock: Allows the Cart to roll during transport.
7. Vertical post
8. Paper table support: Joins the paper table to the vertical post.
9. Battery: Supplies the power to elevate the paper table.
10. On/Off switch: Switches the power to the Cart on or off.
