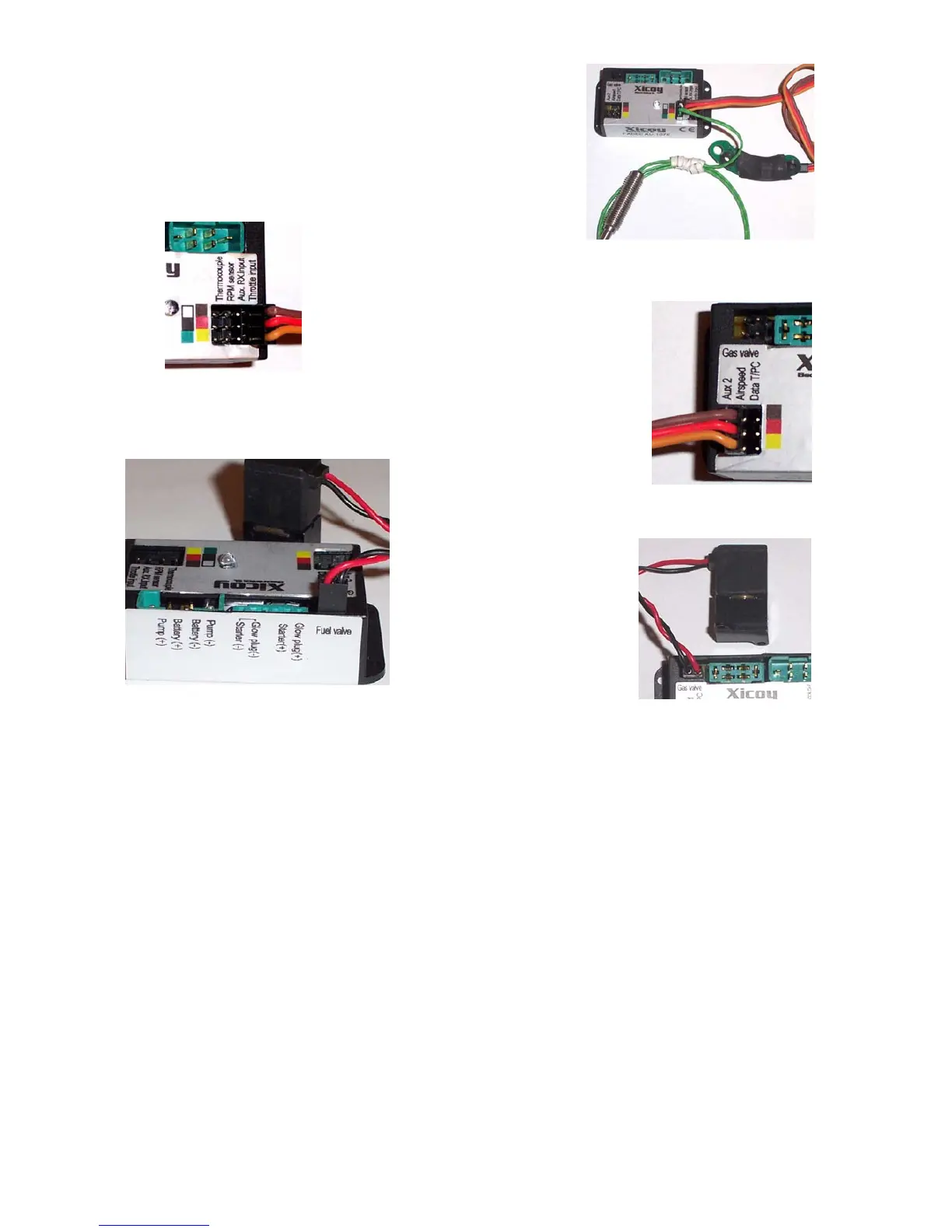

Connect the RPM sensor and thermocouple on its
respective sockets, in the orientation that is shown in the
colored labels on the fadec. If necessary, both leads can
be extended using good quality servo extensions.
Connect the throttle lead from the RX in its place, in the upper
position. Side socket is ready for a second servo signal but not used
on present firmware
Airspeed (pitot) sensor, if used, must be connected as shown in the
picture, at the side of the data terminal connection.
The last two sockets are used
for the connection of the
solenoid valves. Bottom position
for the gas/keroburner
solenoid, and the upper position
(as shown in the picture) for the
main fuel valve.
About solenoid valves, please note that they should be of the same
rated voltage as the battery and consume less than 0,5A.
