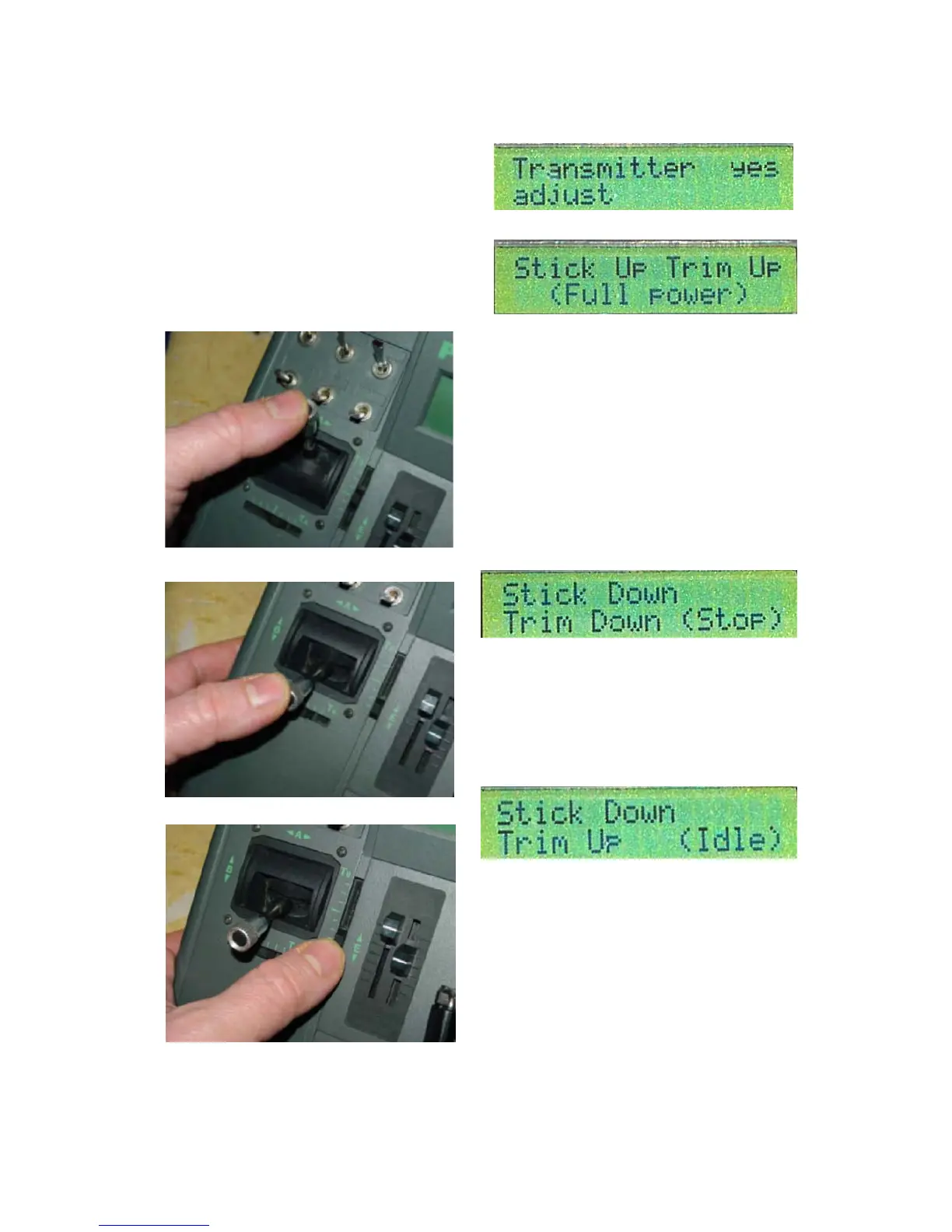

Aligning the transmitter with the FADEC
Turn on the transmitter and receiver. Using
the “menu up” and (-) buttons move to the
“Radio” menus. First screen will be this one:
If you are sure that you want to modify the
radio settings then press the right hand
button (+) and the screen will change to:
On your transmitter, raise first the
trim to full and next the throttle stick to full.
Ensure stick is firmly against the stop.
Now holding the stick against the stop, press
the right button (+) to store the current signal
value into the FADEC.
IMPORTANT NOTE: Pressing any other
button the setting WILL NOT be stored.
The screen will now change to:
Move the trim (or switch the “engine cut”
switch to on) and throttle stick back to zero
and again press the right hand button (+) to
store the position.
The display will now change to:
Leaving the throttle stick in the minimum
position, raise the throttle trim to the full up
position or switch “Engine Cut” switch to off,
and again press the “+” button. The FADEC will
store the current position as IDLE.
If you have done all steps correctly the blue
LED will light up in the ECU when the “Idle”
command, (trim and throttle stick set to idle positions on the transmitter).
Lower your throttle trim and the LED will go out indicating correct reading of the
transmitter engine shut off signal by the Fadec.
