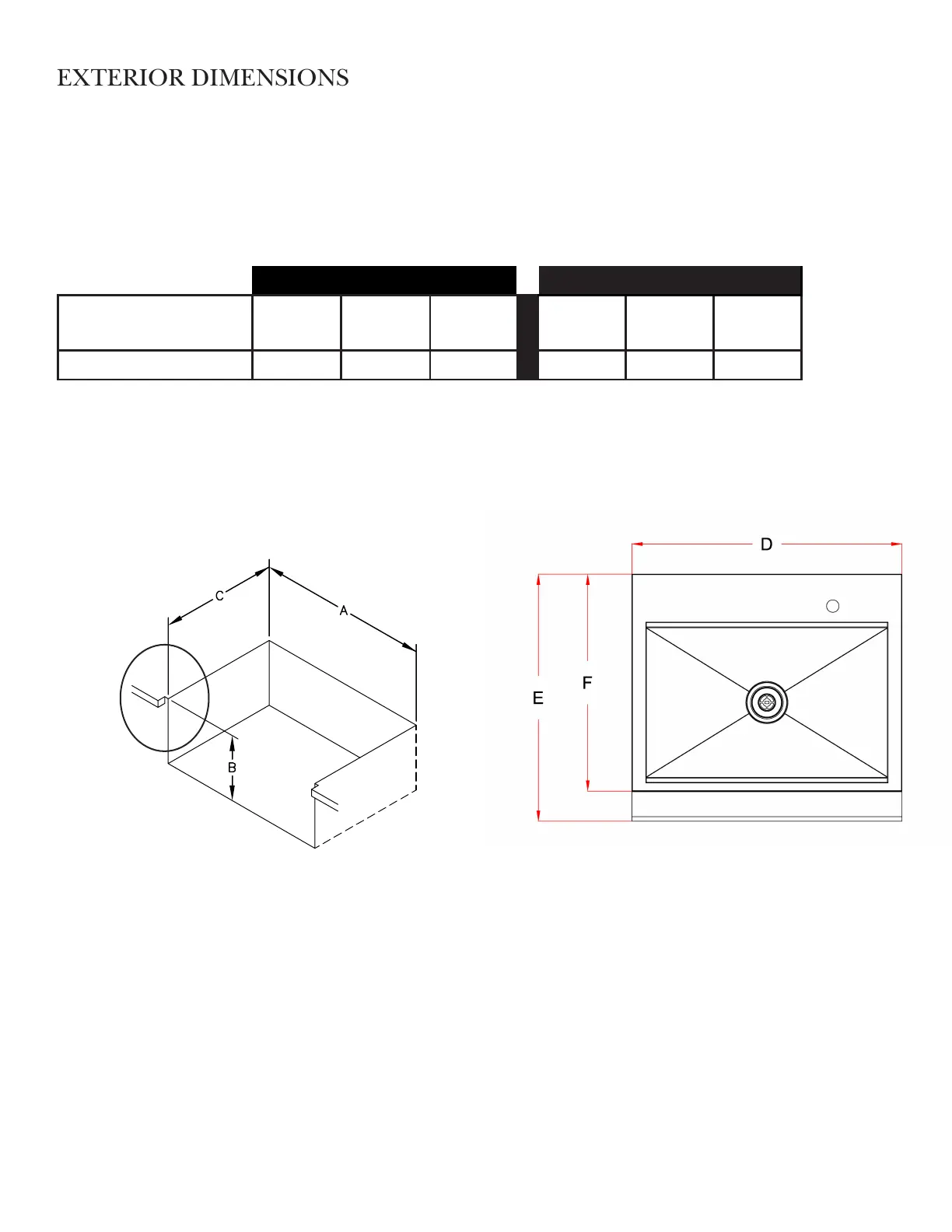

Cutout Dimensions Exterior Dimensions
Cut-out Dimension
Specifications
Width A Height B Depth C Width D Depth E Depth F
XOG30BARPRO
30 3/8" 27 3/4"
24 3
/8"
Counter top notch detail: a 1/2” width is required
with a depth equal to the counter top overhang.
INSTALLATION PREPARATION
The XO sinks are designed for outdoor use only. The sink should be installed by a qualified liscensed technician
in accordance with all local plumbing and building codes.
Prepare the counter top by cutting the appropriate cutout dimensions There must be a minimum of a 1/2”
overlap on the sides and rear of the sink on the counter top to support the sink. Note: clearances below the sink
must be maintained for maintenance, water, and drain lines.
Exterior DimensionsCutout Dimensions
INSTALLER: Read these instructions carefully before starting installation. Please leave these instructions with
the homeowner.
HOMEOWNER: Please retain these instructions for future use
27 7/16"
24 1/8"
30"
