Xray GTX8 User Manual

19
352151 FRONT UPPER ARM BALL JOINT (2) - V2
352179 COMPOSITE BUSHING & BALL MOUNT SET (2+2)
352245 C-HUB STEERING BLOCK LB WITH ALU INSERTS
352277 COMPOSITE C-HUB 16° RIGHT
352287 COMPOSITE C-HUB 16° LEFT
352293 STEEL C-HUB BUSHING (2)
352378 ALU STEERING PLATE - SWISS 7075 T6 (L+R)
352621 ADJ. TURNBUCKLE M5 L/R 58 MM - HUDY SPRING STEEL (2)
353160 MOUNTING BALL 6.8 (4)
353170 PIVOT BALL 6.8 (4)
355211 CVD DRIVE AXLE - HUDY SPRING STEEL™
355221 CVD UNIVERSAL DRIVE SHAFT - HUDY SPRING STEEL™
355237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355252 ALU WHEEL AXLE OFFSET "+2MM" - HARD COATED (2)
357230 FRONT LOWER OUTER PIVOT PIN (2)
901504 HEX SCREW SB M5x4 (10)
902305 HEX SCREW SH M3x5 (10)
902318 HEX SCREW SH M3x18 (10)
902325 HEX SCREW SH M3x25 (10)
902412 HEX SCREW SH M4x12 (10)
903308 HEX SCREW SFH M3x8 (10)
940817 BALL-BEARING 8x16x5 RUBBER SEALED - OIL (2)
941319 BALL-BEARING 13x19x4 RUBBER SEALED - OIL (2)
960030 NUT M3 (10)
980263 PIN 2.5x13 (10)
980317 PIN 3x17 (10)
940817
BB 8x16x5
903308
SFH M3x8
Follow the TECH TIP on page 5
for drive shaft pin servicing
➊
➋
➎
➍
➍
➏
➐
➑
➌
3x17mm
2.5x13mm
941319
BB 13x19x4
901504
SB M5x4
980317
P 3x17
980263
P 2.5x13
940817
355252
901504
352151
355211
355237
352277
352287
355221
903308
352378
352179
960030
980317
352245
960030
352621
902318
353160
980263
352179
352293
941319
902412
352293
902412
357230
902305
353170
902325

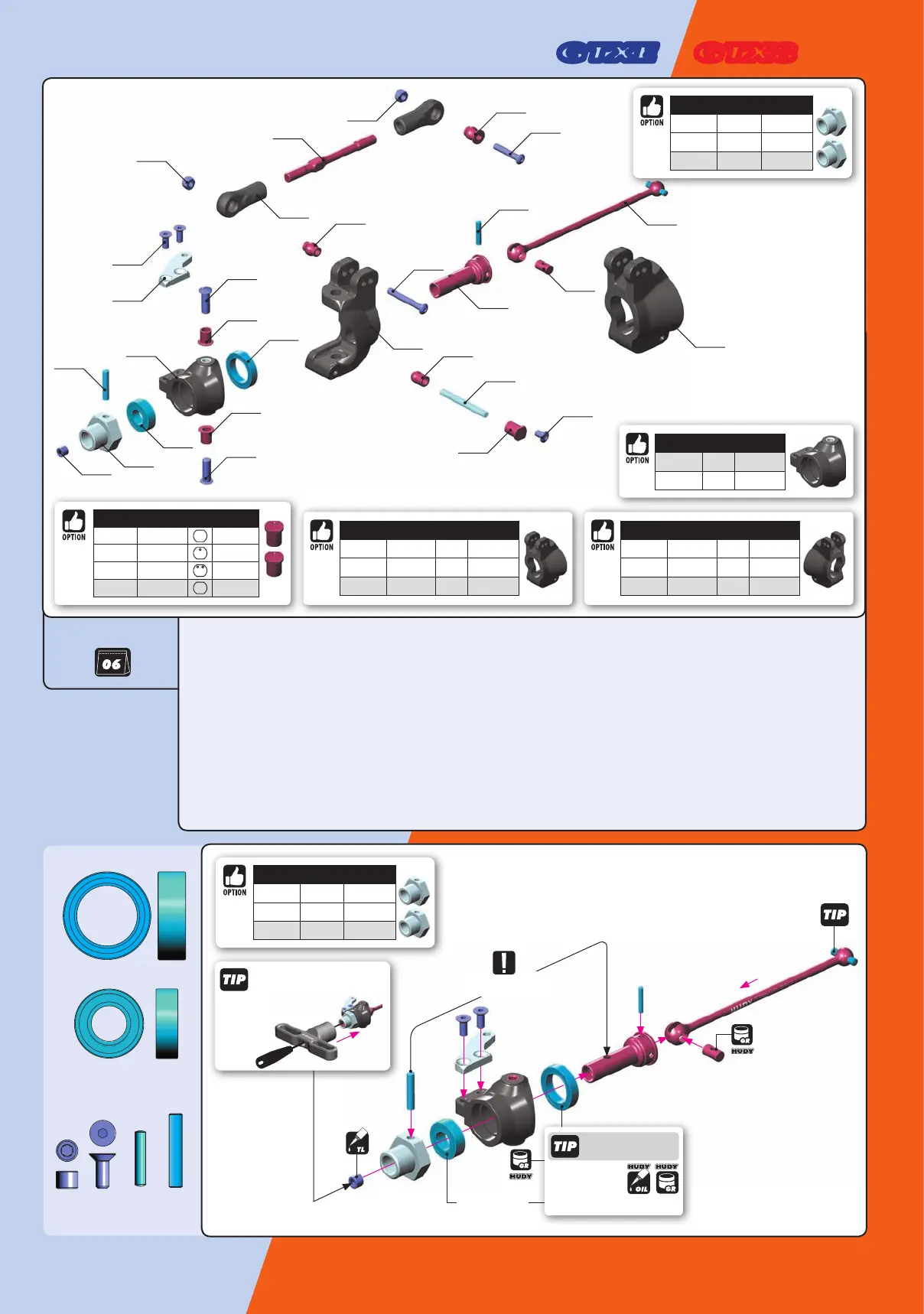

6. FRONT SUSPENSION
BAG
OFFSET WHEEL AXLES
#355250 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm INCLUDED
OFFSET WHEEL AXLES
#355250 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm INCLUDED
GTX8GTXE
2.5mm
To tighten the setscrew you can
also use the HUDY 17mm Wheel
Nut Tool #107570
NOTE ORIENTATION
Graphite Grease
(HUDY #106210)
Use HUDY Ball-Bearing
Grease or Oil for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
#106230 - Bearing Oil
8x16x5
13x19x4
ECCENTRIC BUSHINGS
#352170 0° - STEEL
OPTION
#352174 1° - STEEL
OPTION
#352175 2° - STEEL
OPTION
#352179 0° - COMP.
INCLUDED
Ball-bearing with
RUBBER covers
CASTER BLOCK - RIGHT
#352275 2° RIGHT ALU OPTION
#352276 16° RIGHT ALU OPTION
#352277 16° RIGHT COMP. INCLUDED
CASTER BLOCK - LEFT
#352285 2° LEFT ALU OPTION
#352286 16° LEFT ALU OPTION
#352287 16° LEFT COMP. INCLUDED
STEERING BLOCK
#352245 COMP. INCLUDED
#352254 ALU OPTION
