Xray GTX8 User Manual

20
ROLL CENTER
ROLL CENTER
902412
SH M4x12

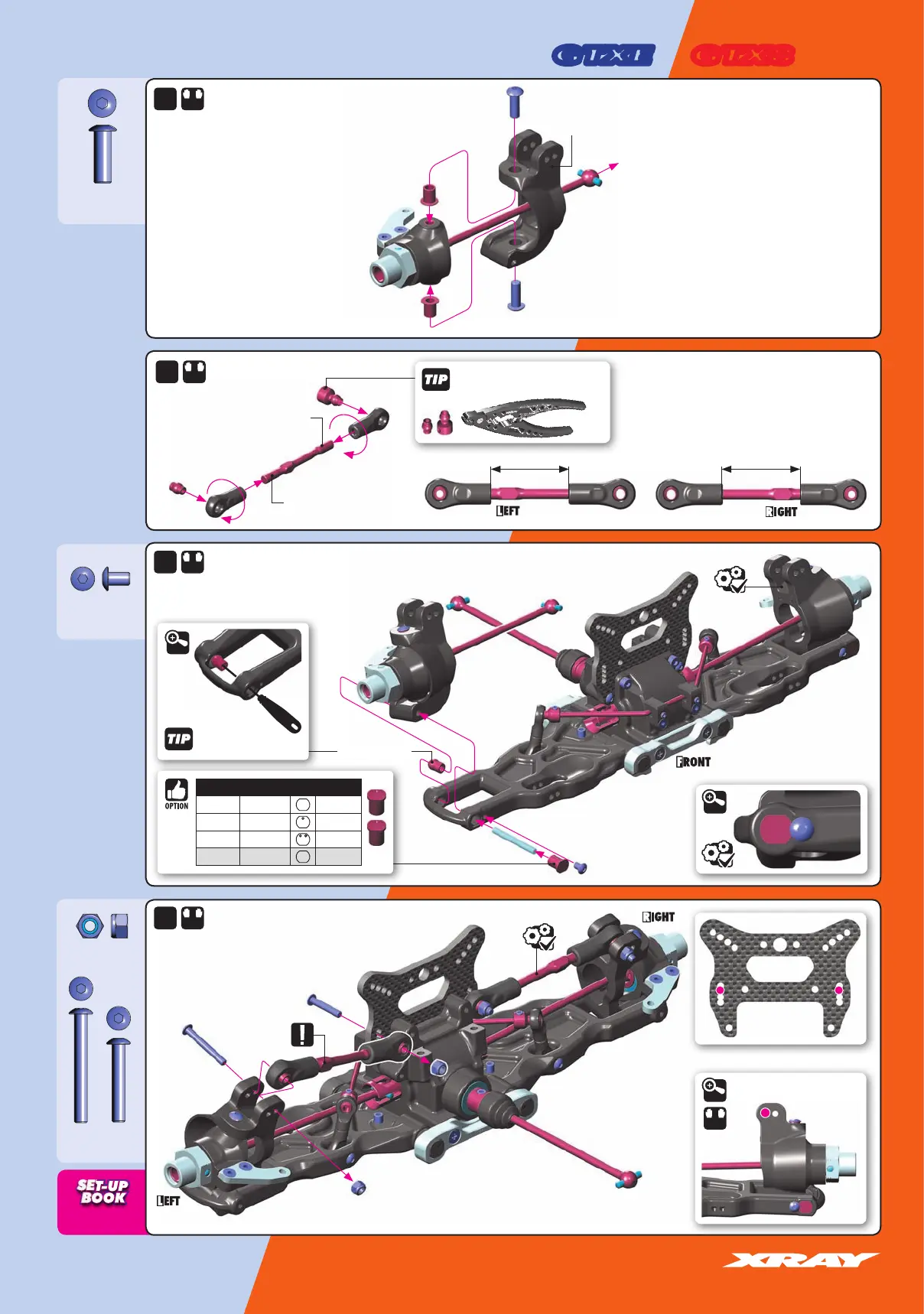

6. FRONT SUSPENSION
GTX8GTXE
LEFT THREAD
RIGHT THREAD
34.4mm34.4mm
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
➊
➊
➌
➌
Marked “R“
➋
L=R
2x
L=R
2x
SHORT
LONG
L=R
2x
902305
SH M3x5
960030
N M3
DETAIL
902325
SH M3x25
902318
SH M3x18
STEP ➊ DETAIL
➋
➌
➊
➍
➎
L=R
2x
NOTE
ORIENTATION
3x18mm
3x25mm
INITIAL SETTING
INITIAL SETTING
DETAIL
L=R
ECCENTRIC BUSHINGS
#352170 0° - STEEL
OPTION
#352174 1° - STEEL
OPTION
#352175 2° - STEEL
OPTION
#352179 0° - COMP.
INCLUDED
DETAIL
Press pivot ball into
arm until it snaps into place
2.5 mm

Xray GTX8 Specifications

General

Width	300mm
Weight	~2080g
Drive Type	4WD
Chassis Material	Aluminum
Terrain	Off-Road
Remote Control Frequency	2.4GHz
Body Material	Polycarbonate
Tire Material	Rubber
Class	Off-road
