Xray GTX8 User Manual

23
352664
303128-K

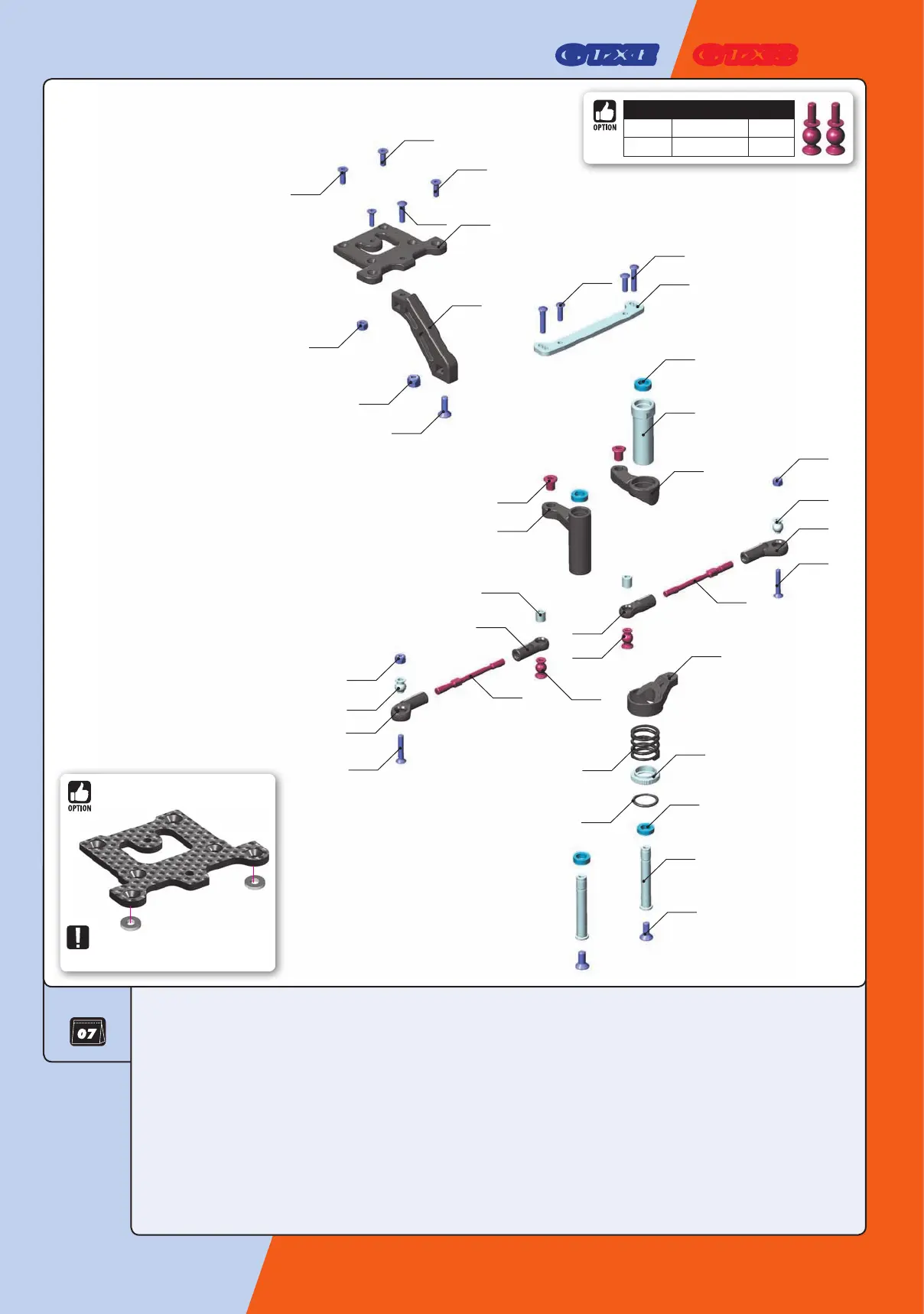

7. STEERING
303128-K ALU SHIM 3x6x6.0MM - BLACK (10)
351344 COMPOSITE UPPER PLATE
352084 COMPOSITE FRONT BRACE
352505 SERVO SAVER COMPLETE SET
352514 COMPOSITE SERVO SAVER - GRAPHITE
352576 STEERING PLATE BUSHING (2)
352580 ALU STEERING PLATE - SWISS 7075 T6
352612 ADJ. TURNBUCKLE M4 L/R 45 MM - HUDY SPRING STEEL™ (2)
352652 BALL STUD 6.8MM (4)
352653 BALL STUD 6.8MM WITH BACKSTOP - M3 (2)
352664 COMPOSITE STEERING BALL JOINT 6.8MM - V3 (2)
352666 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM (2)
902308 HEX SCREW SH M3x8 (10)
902312 HEX SCREW SH M3x12 (10)
902318 HEX SCREW SH M3x18 (10)
903310 HEX SCREW SFH M3x10 (10)
BAG
903312 HEX SCREW SFH M3x12 (10)
903318 HEX SCREW SFH M3x18 (10)
903410 HEX SCREW SFH M4x10 (10)
903412 HEX SCREW SFH M4x12 (10)
940610 BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
960030 NUT M3 (10)
960040 NUT M4 (10)
970121 O-RING 12.1 x 1.6 (10)
Must be used also 2pcs of #303136 shim 3x7x1mm.
NOTE
#351348
GRAPHITE UPPER PLATE
352576
352514
352666
960030
352653
352652
903318
960030
960040
352612
352612
903310
903312
352505
940610
352514
352580
902318
902308
352664
352514
352505
352505
970121
940610
352505
903410
903312
351344
352084
903412
352653
902312
352652
352666
960030
903318
BALL STUD 6.8mm WITH BACKSTOP
#352658 L=6MM - M3x8 OPTION
#352659 L=6MM - M3x11 OPTION
GTX8GTXE
