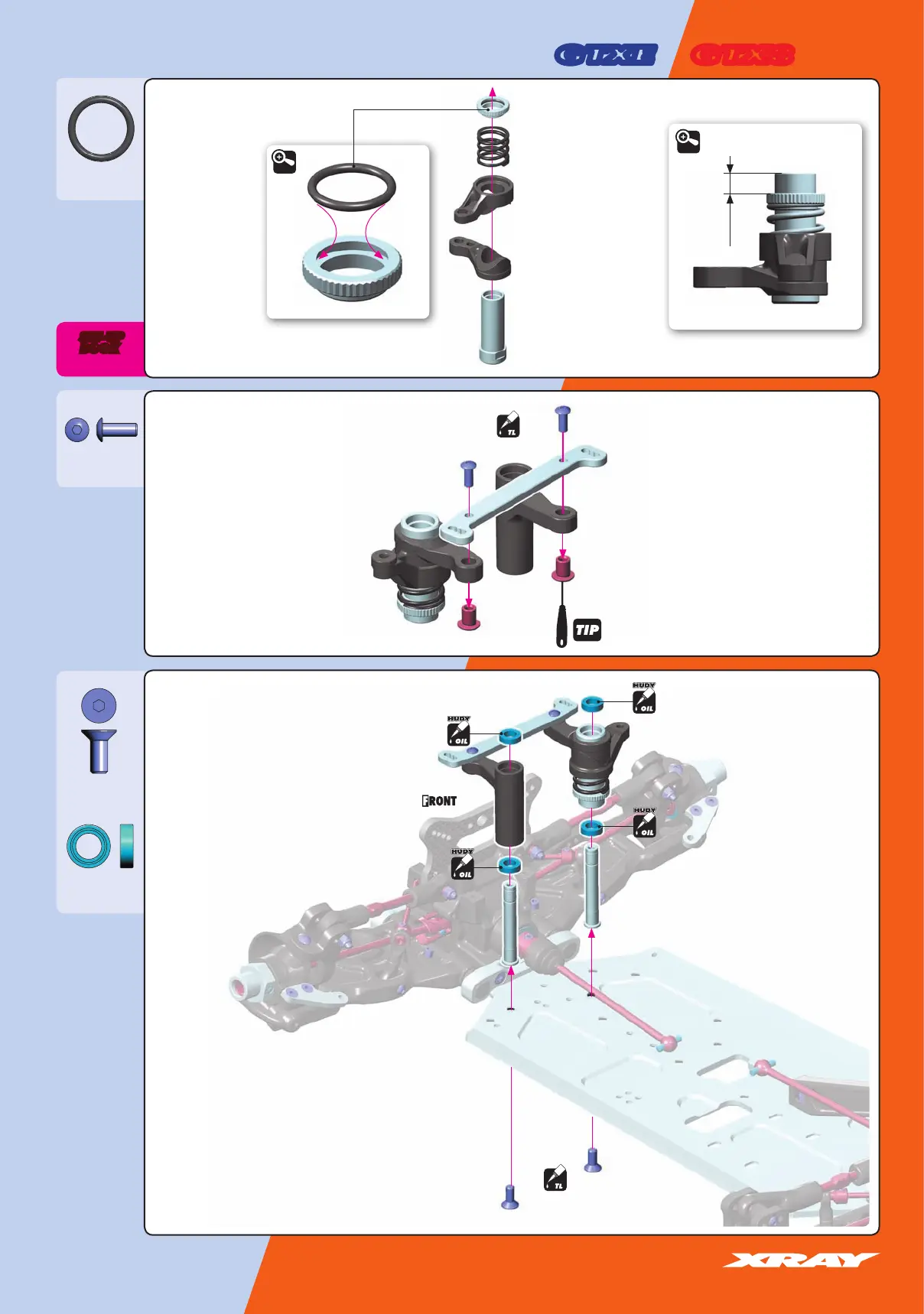

24
SERVO SAVER
BOOK
SET-UP
7. STEERING
902308
SH M3x8
940610
BB 6x10x3
903410
SFH M4x10
970121
O 12.1x1.6
4~5mm
INITIAL PRELOAD SETTING
DETAIL
DETAIL
3.0mm
HUDY Tool Allen 3.0mm
For servicing use
Bearing Oil (HUDY #106230)
GTX8GTXE

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Xray GTX8 and is the answer not in the manual?

Xray GTX8 Specifications

General IconGeneral
Width300mm
Weight~2080g
Drive Type4WD
Chassis MaterialAluminum
TerrainOff-Road
Remote Control Frequency2.4GHz
Body MaterialPolycarbonate
Tire MaterialRubber
ClassOff-road
