Xray GTX8 User Manual

26
GTX8

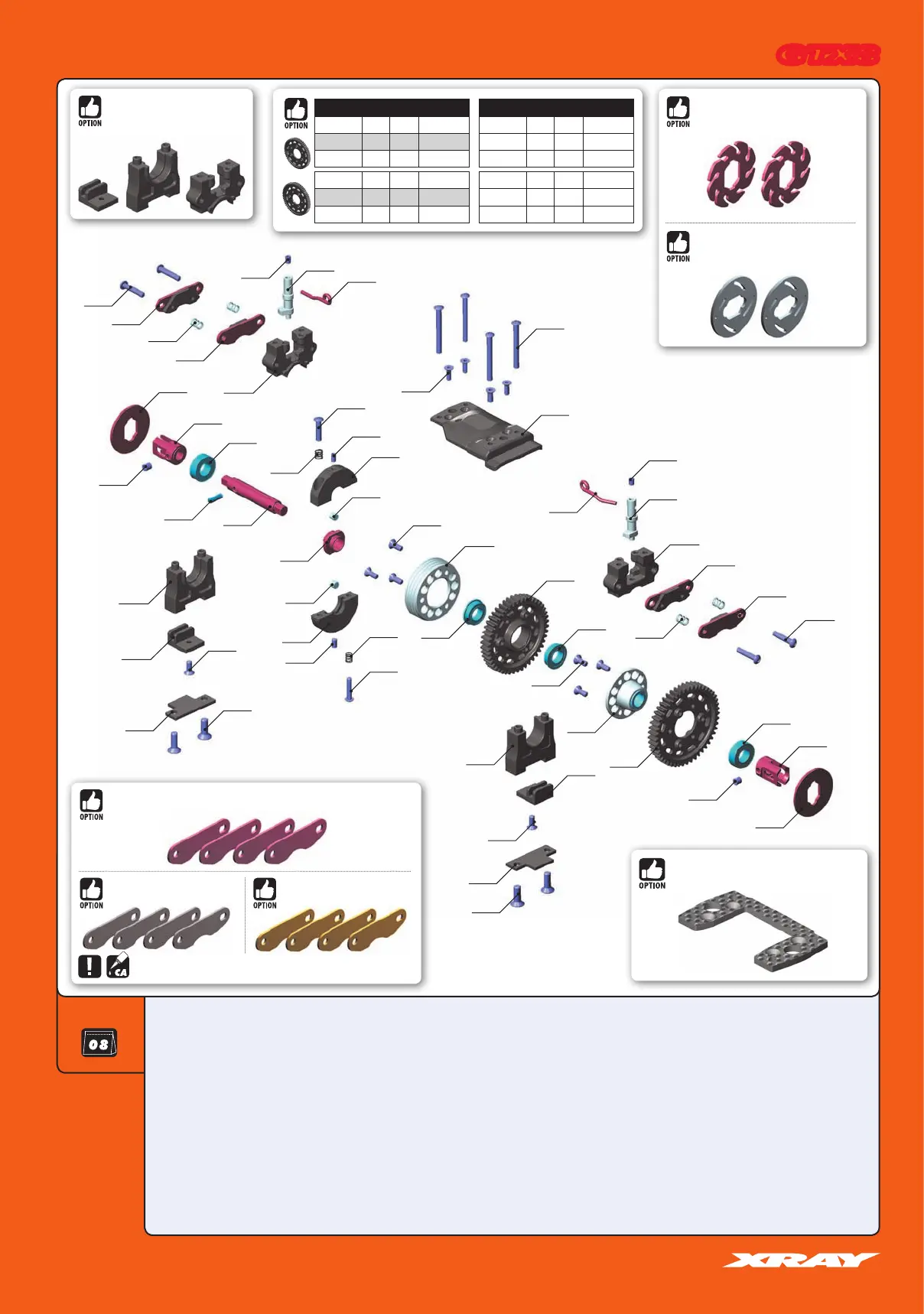

8. CENTER DIFF & BRAKE
BAG
345530 ALU DRIVE FLANGE WITH ONE-WAY BEARING - SWISS 7075 T6
345540 COMPOSITE 2-SPEED GEAR BOX SHOE - SET
345546 COMPOSITE 2-SPEED GEAR 46T (2nd) - H
345549 COMPOSITE 2-SPEED GEAR 49T (1st)
345570 ADAPTER 2-SPEED
345581 GEAR BOX SPRING C=13.0 (2)
354010 CENTER DIFF MOUNTING PLATE - SET
354033 GT COMPOSITE 2-SPEED HOLDER PLATE (2)
354061 ALU BRAKE CAM POST & ROD (2+2) HARD COATED
354110 VENTILATED BRAKE DISK - LASER CUT - PRECISION-GROUND
354131 GLUED BRAKE PADS SET-ULTRA EFFICIENT (4)
354210 GT 2-SPEED SHAFT - HUDY SPRING STEEL™
354220 CARRIER FOR 2-SPEED GEAR (2nd) - SWISS 7075 T6
354250 GT COMPOSITE 2-SPEED UPPER PLATE
354260 GT CENTRAL TRANSM. OUTDRIVE ADAPTER - HUDY SPRING STEEL™
372176 SPRING 4.25 COILS 3.6x6x0.4MM; C=1.5 - GOLD (SOFT) (2)
901304 HEX SCREW SB M3x4 (10)
901305 HEX SCREW SB M3x5 (10)
901404 HEX SCREW SB M4x4 (10)
902314 HEX SCREW SH M3x14 (10)
902316 HEX SCREW SH M3x16 (10)
902330 HEX SCREW SH M3x30 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903412 HEX SCREW SFH M4x12 (10)
930816 BALL-BEARING 8x16x5 RUBBER SEALED - OIL (2)
950814 BALL-BEARING 8x16x5 STEEL SEALED - GREASE (2)
981310 PIN 3x10 (10)
983404 ROLLER PIN 4x4 MM (2)
354010
354010
902316
354010
354010
#354252
GRAPHITE CENTER MOUTING PLATE 2.5mm
354110
354260
930816
354250
901304
354061
901304
354061
354061
354131
354131
930816
354260
354010
902330
902314
901305
345540
983404
903306
354220
345546
950814
903308
903412
345581
902314
902316
372176
354131
354131
901404
981310
354210
354033
345570
983404
950814
903306
345530
345549
354010
903308
354033
903412
901404
354110
345540
901305
345581
354061
372176
903308
GRAPHITE 2-SPEED GEARS
#345645 45T 2ND OPTION
#345646 46T 2ND OPTION
#345647 47T 2ND OPTION
#345648 48T 1ST OPTION
#345649 49T 1ST OPTION
#345650 50T 1ST OPTION
COMPOSITE 2-SPEED GEARS
#345545 45T 2ND OPTION
#345546 46T 2ND INCLUDED
#345547 47T 2ND OPTION
#345548 48T 1ST OPTION
#345549 49T 1ST INCLUDED
#345550 50T 1ST OPTION
#354010-G
COMPOSITE CENTER DIFFERENTIAL
MOUNTING PLATE SET - GRAPHITE
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354132
BRAKE PAD “SLS” (4)
#354130
BRAKE PAD FIBER (4)
#354113
SUPER-LIGHTWEIGHT VENTILATED BRAKE
DISK - PRECISION-GROUND (2)
#354112
LIGHTWEIGHT VENTILATED BRAKE DISK
LASER CUT - PRECISION-GROUND (2)
