27
GTX8

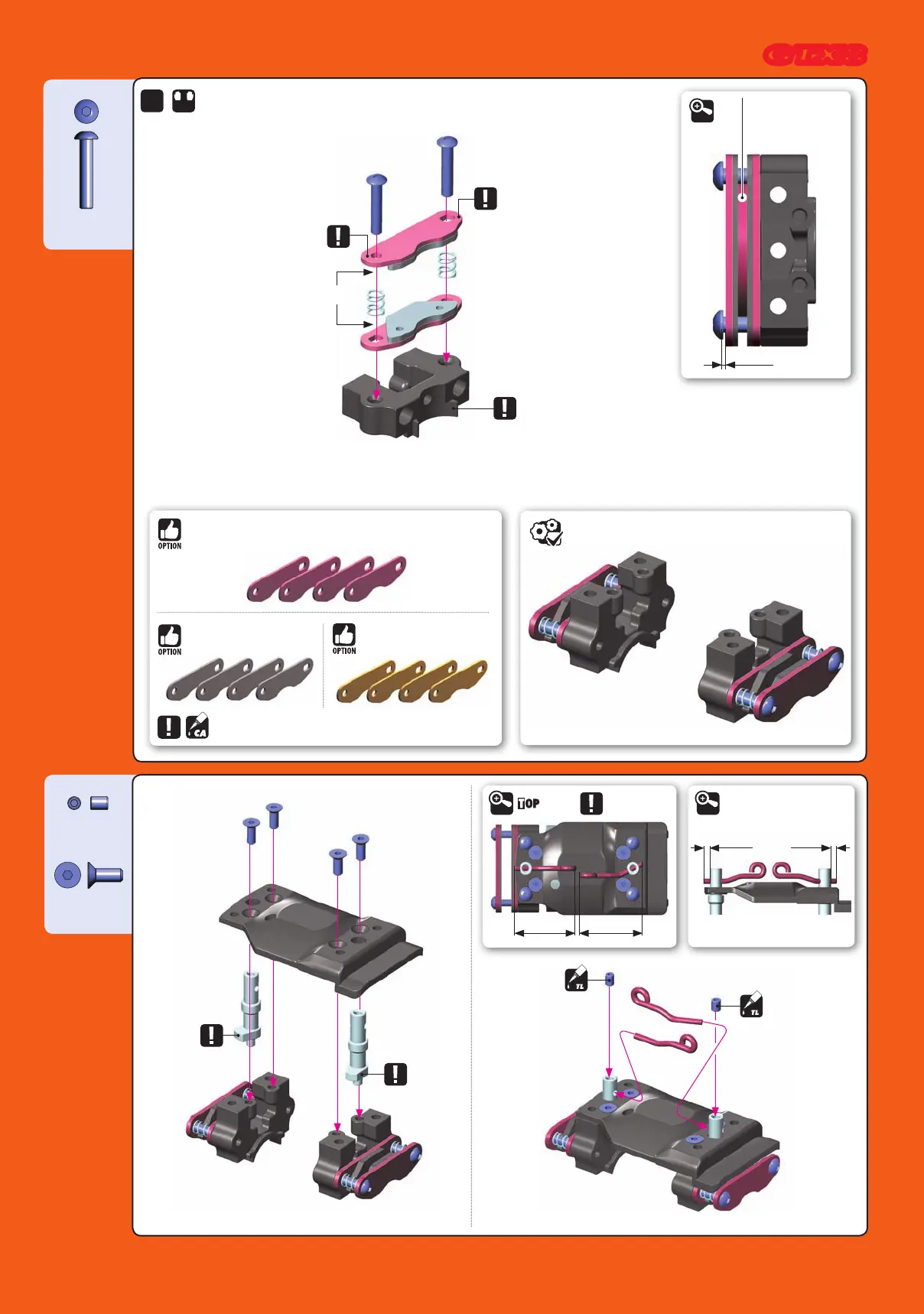

8. CENTER DIFF & BRAKE
902316
SH M3x16
2x
F=R
Fibre pads together
OVAL HOLE
NOTE ORIENTATION
ROUND HOLE
NOTE ORIENTATION
NOTE ORIENTATION
ASSEMBLY VIEW
Temporarily insert brake
disk between pads to set
correct gap
0.5 mm
DETAIL
#354132
BRAKE PAD “SLS” (4)
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354130
BRAKE PAD FIBER (4)
901304
SB M3x4
903308
SFH M3x8
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
VIEW
SHORT LONG
DETAIL DETAIL
1.0mm 2.0mm
