28

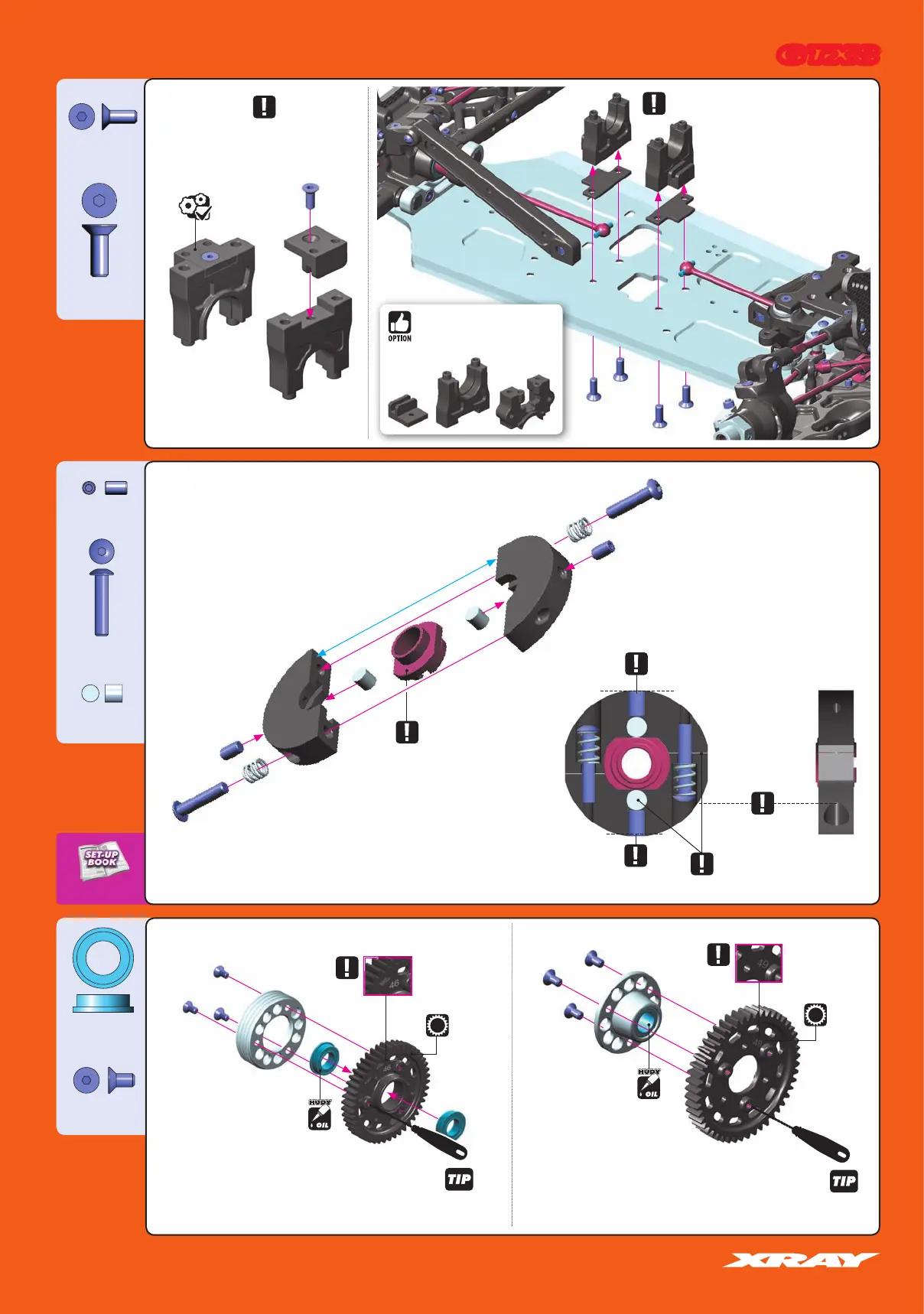

2-SPEED TRANSMISSION
901305
SB M3x5
902314
SH M3x14
983404
RP 4x4
903306
SFH M3x6
950814
BB 8x14x4
ARM REAMER
ARM REAMER
➊
➊
➋
➋
➌
➍
➍
➎
➎
Setscrews must
NOT protrude
Top of screw head
should be level with
hole bottom edge
Do not overtighten gap-setting
setscrews. Only tighten until roller
pins contact the center hub.
SHIFT-POINT SCREW
SHOE-GAP SETSCREW
Use HUDY Reamer #107600 to slightly chamfer
the edges on all 3 holes for screws from inside.
Use HUDY Reamer #107600 to slightly chamfer
the edges on all 3 holes for screws from inside.
46
49
GTX8
8. CENTER DIFF & BRAKE
NOTE ORIENTATION
NOTE ORIENTATION
NOTE ORIENTATION
NOTE ORIENTATION
3x8mm
4x12mm
NOTE ORIENTATION
OF ALL PARTS
903412
SFH M4x12
903308
SFH M3x8
For servicing use
BEARING OIL (HUDY #106230)
For servicing use
ONE-WAY LUBE (HUDY #106231)
#354010-G
COMPOSITE CENTER DIFFERENTIAL
MOUNTING PLATE SET - GRAPHITE
To Next Page
