Xray GTX8 User Manual

40
902312
SH M3x12
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
GTX8

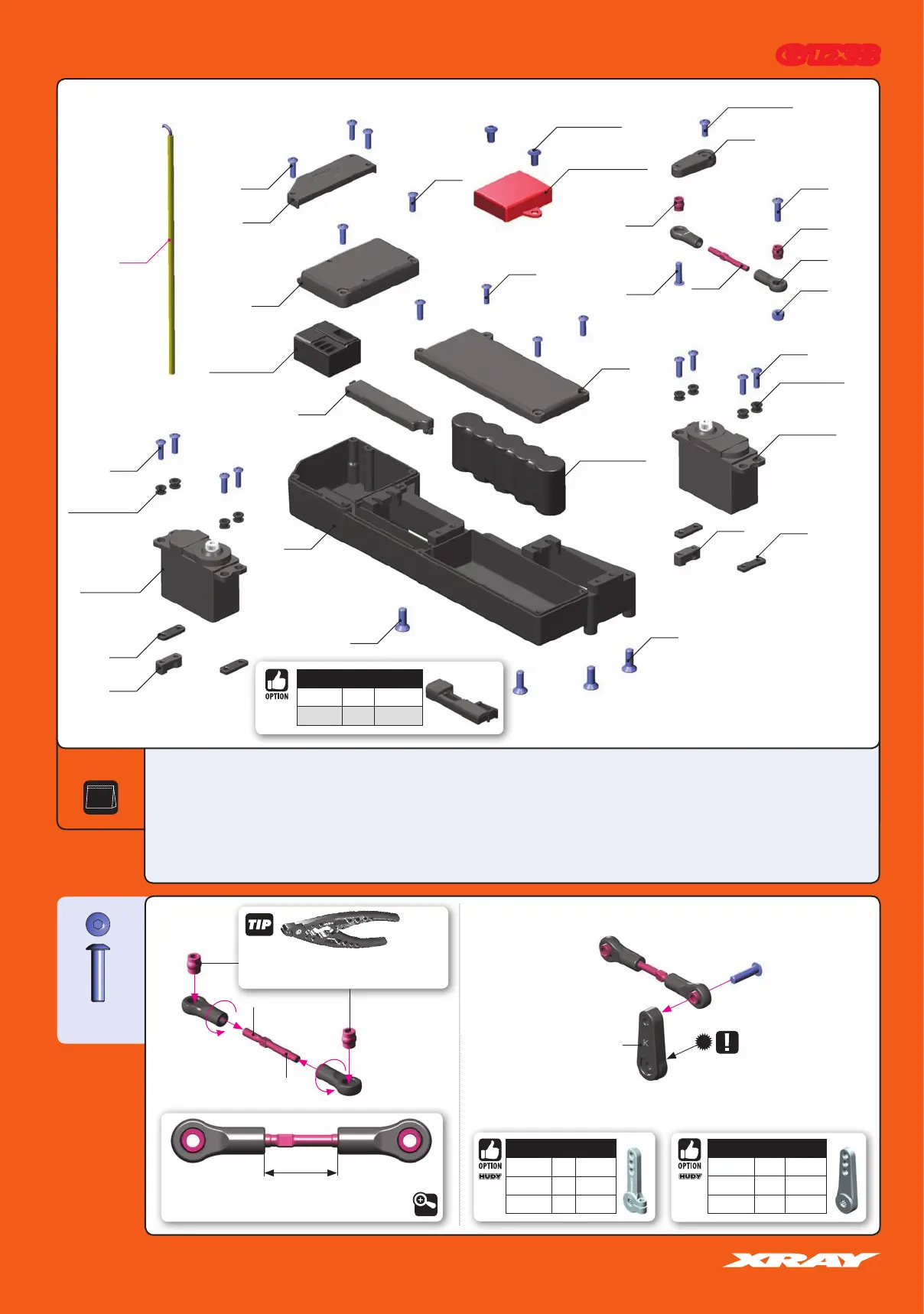

10. RADIO CASE
10
BAG
302611 ADJ. TURNBUCKLE L/R 35 MM - HUDY SPRING STEEL™ (2)
336120 COMPOSITE STEERING SERVO HOLDER - SET - V2
352460 PIVOT BALL 5.8 (10)
352670 SERVO BALL JOINT 5.8MM (4)
356003 COMPOSITE RADIO CASE SET
356050 BATTERY CABLE WITH SWITCH (OPTION)
356120 STEERING SERVO MOUNT - SET
356200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
LEFT THREAD
RIGHT THREAD
Use appropriate servo arm:
K - (23T)
H - (24T)
F - (25T)
389135 CONNECTING CABLE RECEIVER/BATT. PACK (OPTION)
902306 HEX SCREW SH M3x6 (10) (OPTION)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
902314 HEX SCREW SH M3x14 (10)
903412 HEX SCREW SFH M4x12 (10)
960030 NUT M3 (10)
306310 ANTENNA TUBE (2)
The length of the linkages varies
according to the type of servo.
approx. 19.5mm
LEFT THREADRIGHT THREAD
DETAIL
NOTE
ORIENTATION
Receiver battery
(NOT INCLUDED)
Servo Grommet
(NOT INCLUDED)
306310
356003
356003
902310
902312
902310
902306
(NOT INCLUDED)
356003
356003
356003
903412
903412
902314
336120
356120
902314
356120
336120
Throttle Servo
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
Servo Grommet
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
356200
960030
352670
352460
352460
902314
902312
302611
Personal transponder
(NOT INCLUDED)
RADIO CASE - SET
#356004 SOFT OPTION
#356003 HARD INCLUDED
Install the all pivot balls with Professional
Multi Tool (HUDY #183011)

Xray GTX8 Specifications

General

Width	300mm
Weight	~2080g
Drive Type	4WD
Chassis Material	Aluminum
Terrain	Off-Road
Remote Control Frequency	2.4GHz
Body Material	Polycarbonate
Tire Material	Rubber
Class	Off-road
