44
SHOCK OIL
Gently push the shock shaft
completely into the shock
body. Excess oil will flow
through the hole in the
shock cap.
Keep the shock shaft
pushed in the shock body
and tighten the shock cap
completely.
The rebound will be at
approximately 0%.
➐
HALF TIGHTEN TIGHTEN FULLY
100%
Follow the steps below to set the shock rebound to the default setting of 0%.
970180
O 18x1.8

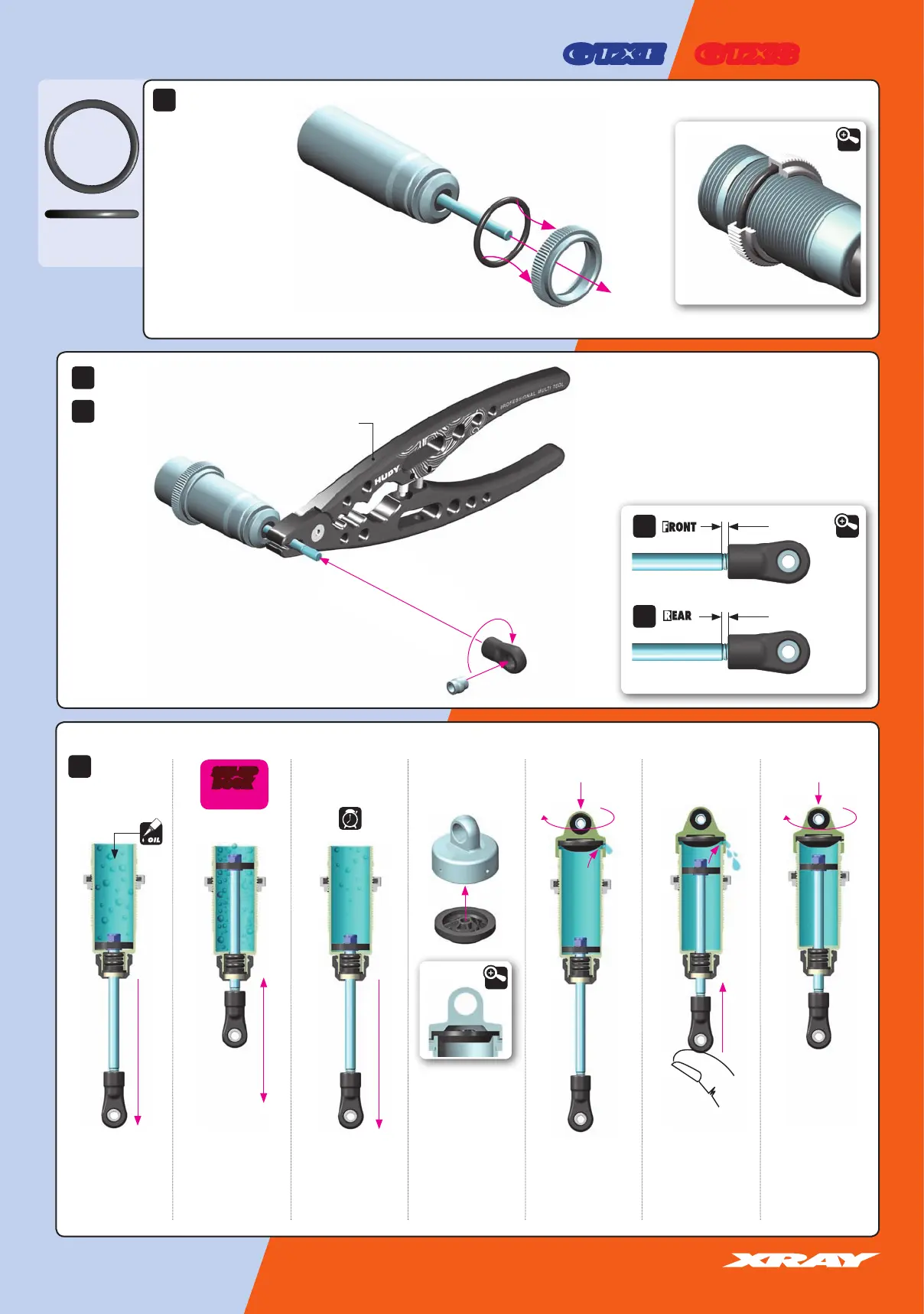

11. SHOCK ABSORBERS
SHOCK
Oil 800cSt
Extend the shock shaft
completely. Fill the shock
body with the shock oil. For
the shocks use 800cSt oil.
Move the shock shaft up and
down a few times to release
the air bubbles trapped
beneath the piston.
Orient the filled shock
vertically for several
minutes with the shock
shaft fully extended. The
remaining air bubbles will
release.
Install the shock membrane
into the groove in the
upper shock cap.
Gently place the shock cap
assembly onto the filled
shock body. Excess oil will
spill from the shock. Screw
the shock cap onto the
body by only a few turns.
➊ ➋ ➌ ➍ ➎ ➏
3~5x
UP & DOWN
50%
DEFAULT SHOCK REBOUND SETTING 0% (LOW REBOUND)
DETAIL
DETAIL
0.5mm
0.5mm
BOOK
SET-UP
4x
4x
2x
2x
GTX8GTXE
FRONT SHOCKS
2x
REAR SHOCKS
2x
Professional Multi Tool
(HUDY #183011)
DETAIL
To Next Page
