54
902310
SH M3x10
960030
N M3

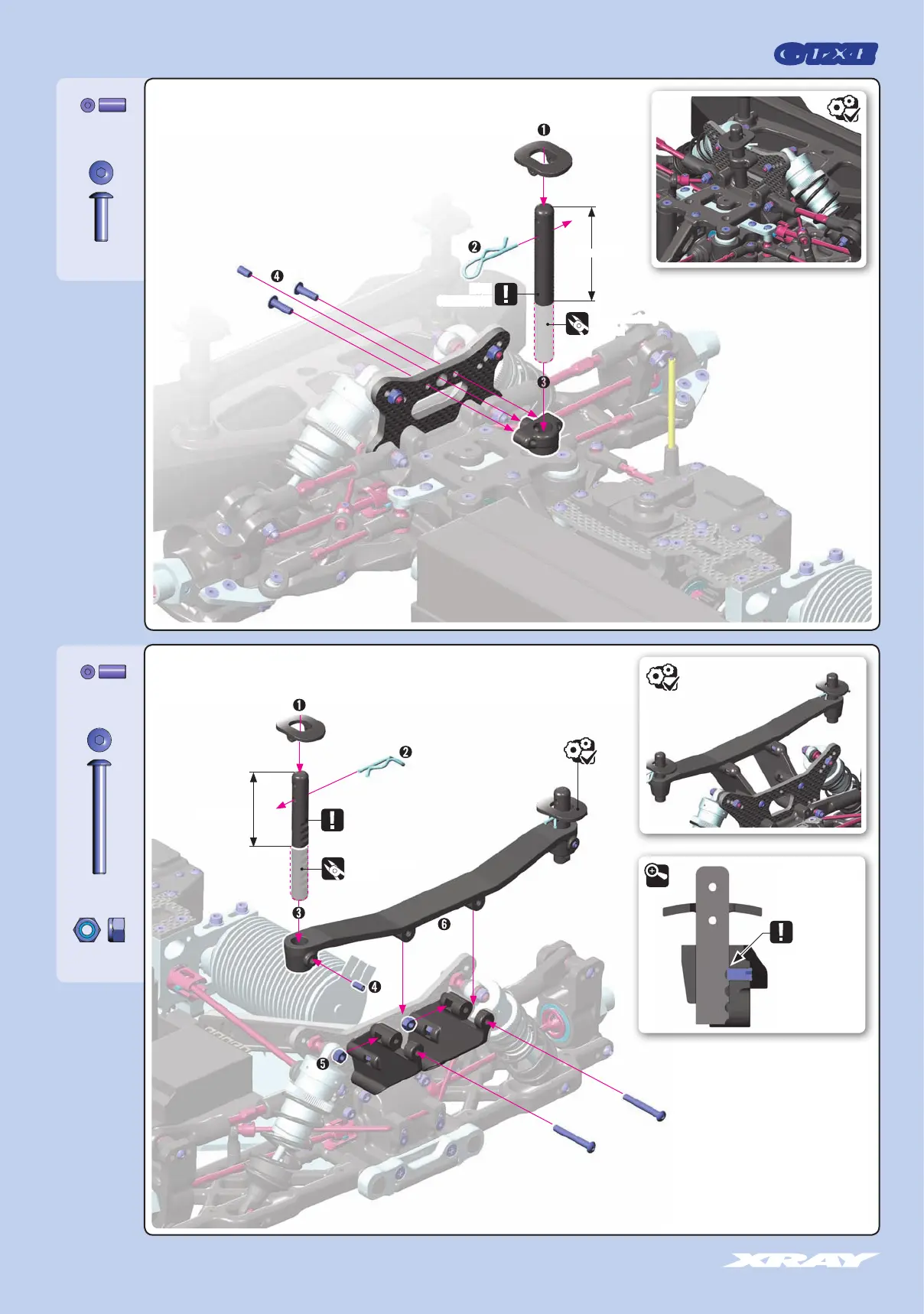

12. FINAL ASSEMBLY
902325
SH M3x25
Cut off remaining
material
Cut off remaining
material
➐
approx. 52mm
approx. 37mm
NOTE
ORIENTATION
NOTE
ORIENTATION
DETAIL
NOTE
ORIENTATION
901306
SB M3x6
901306
SB M3x6
GTXE
