Page #53 background imageLoading...
Page #53 background image
53
960040
N M4
960030
N M3
3x12mm
3x6mm
3x6mm
4x14mm
4x16mm
M3
M4
DETAIL
901306
SB M3x6
902312
SH M3x12
902316
SH M3x16
903414
SFH M4x14
903416
SFH M4x16

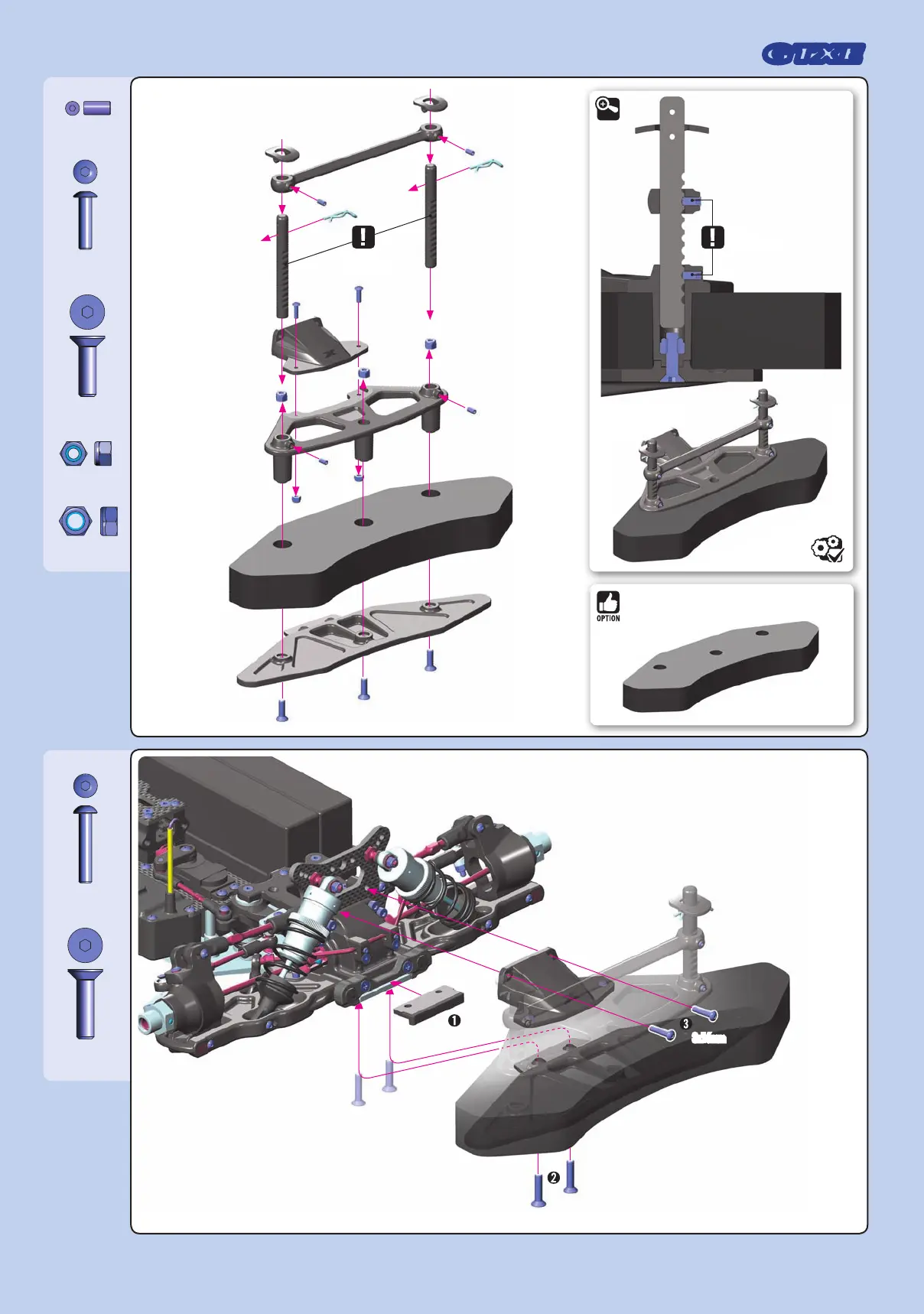

12. FINAL ASSEMBLY
NOTE
ORIENTATION
NOTE
ORIENTATION
3x16mm
#351222
GT FOAM BUMPER - LIGHT
GTXE

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Xray GTX8 and is the answer not in the manual?

Xray GTX8 Specifications

General IconGeneral
Width300mm
Weight~2080g
Drive Type4WD
Chassis MaterialAluminum
TerrainOff-Road
Remote Control Frequency2.4GHz
Body MaterialPolycarbonate
Tire MaterialRubber
ClassOff-road
