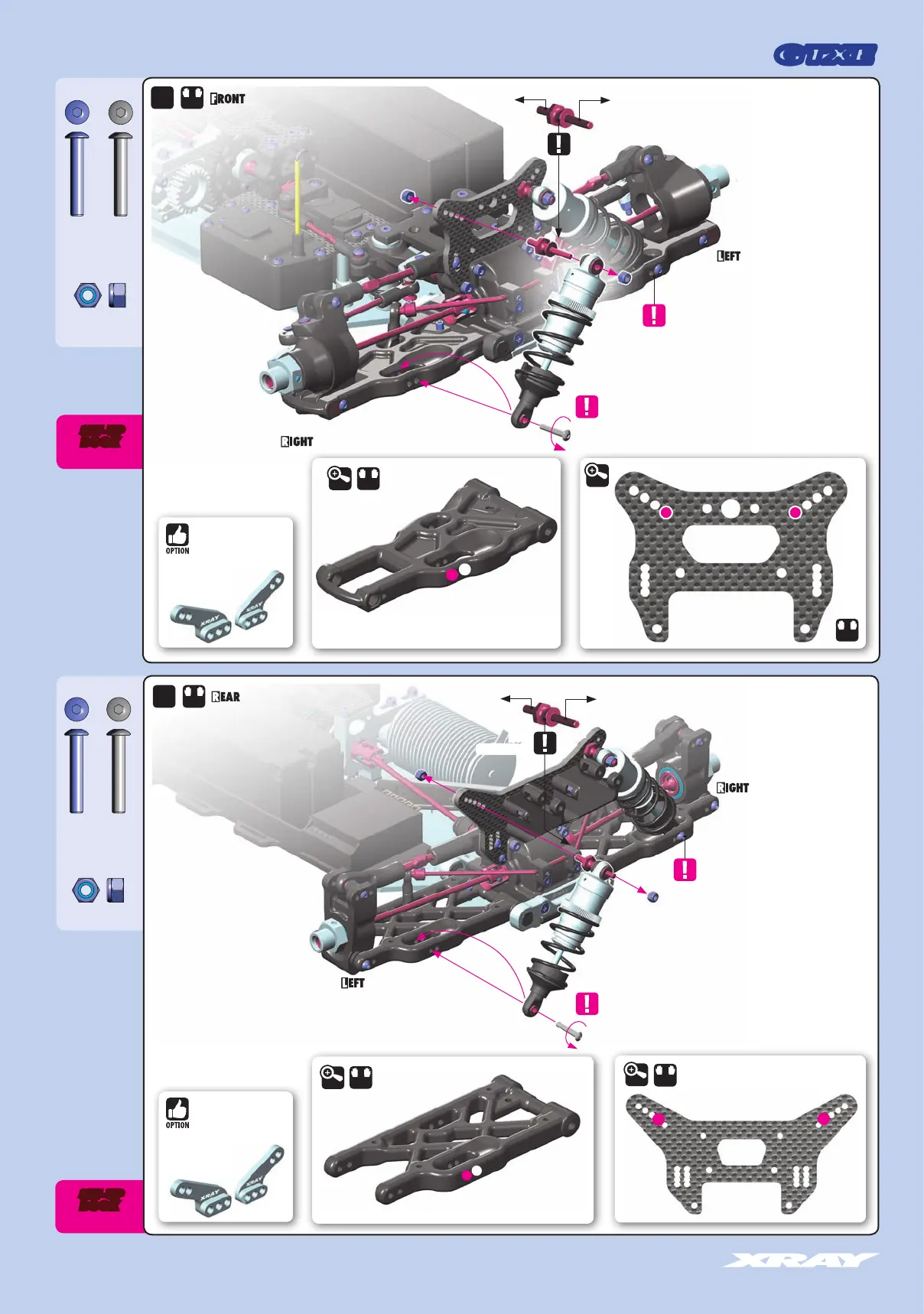

52
SHOCK ABSORBERS
BOOK
SET-UP
SHOCK ABSORBERS
960030
N M3
902319
SH M3x18
LEFT thread
902318
SH M3x18
SHORTER
LONGER
SHORTER
LONGER
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD
Use STANDARD
M3x18 screw
3x18mm
L=R
L=R
2x
2x
902319
SH M3x18
LEFT thread
960030
N M3
902318
SH M3x18
12. FINAL ASSEMBLY
On the rear left arm use the SILVER M3x18
screw - this screw has LEFT THREAD
Use STANDARD
M3x18 screw
M3x18mm
INITIAL SETTING
DETAIL
L=R
BOOK
SET-UP
DETAIL
L=R
INITIAL SETTING
NOTE
ORIENTATION
NOTE
ORIENTATION
INITIAL SETTING
DETAIL
L=R
INITIAL SETTING
DETAIL
L=R
GTXE
# 352390
GT ALU SHOCK PLATE -
SWISS 7075 T6 (L+R)
# 352390
GT ALU SHOCK PLATE -
SWISS 7075 T6 (L+R)
