7
DIFFERENTIAL OIL
GTX8GTXE
➎
STEP DETAIL
DETAIL
➊
➋
➌
➍
➎
➏

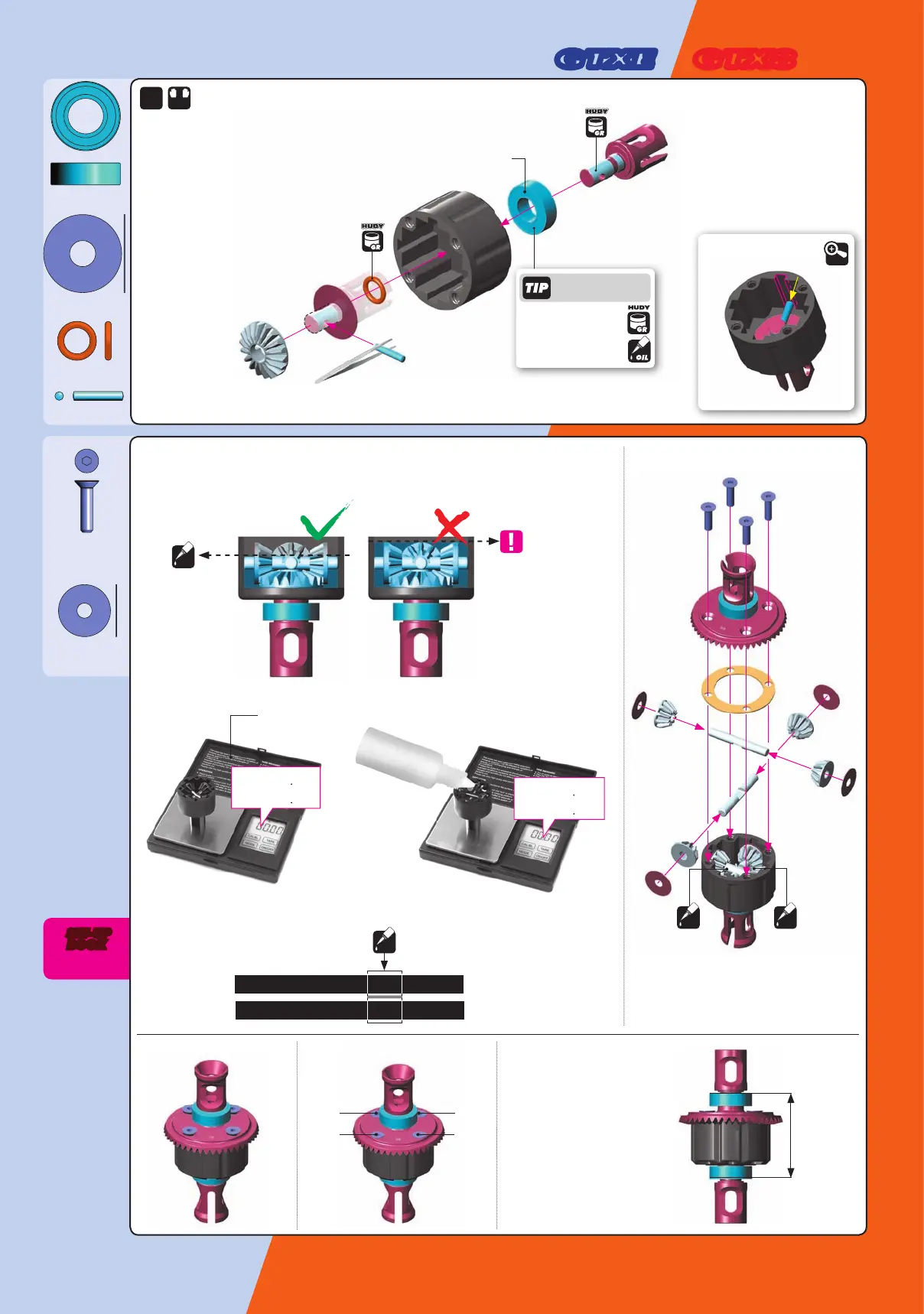

1. DIFFERENTIALS
964030
S 3.5x12x0.2
903312
SFH M3x12
2x
Front diff 300.000cSt
Rear diff 50.000cSt
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
F=R
BOOK
SET-UP
Fill the differentials
with oil just above the
satellite gears.
IMPORTANT!
VERY IMPORTANT!
OIL
INCORRECT
CORRECT
Do not overfill the differential.
If there is too much oil in the
differential, it may leak after
it cools down after use.
Use the following silicone oils included in the kit for initial settings:
FRONT diff: 300.000cSt / REAR diff: 50.000cSt
#107865 HUDY Ultimate Digital Pocket Scale 300g±0.01g
To ensure you have the same amount of oil from rebuild to rebuild, do the following:
1. Put the diff (without oil) on the scale and check the weight:
- FRONT DIFF approx. 39.10g
- REAR DIFF approx. 39.10g
2. Slowly pour oil into the diff and watch the weight.
The approximate weight of the diff+oil is REAR
DIFF approx. 41.10g and FRONT DIFF approx.
41.10g
REAR
REAR
FRONT
g
g
g
g
FRONT
39.10g + 2.0g = 41.10g
39.10g + 2.0g = 41.10g
OIL
FRONT DIFF
REAR DIFF
39.10
39.10
41. 10
41. 10
940817
BB 8x16x5
964060
S 6x18x0.2
980212
P 2x11.6
OIL OIL
Rear diff:
Silicone oil 50.000cSt
Fill just above the satellite
gears.
Front diff:
Silicone oil 300.000cSt
Fill just above the satellite
gears.
After assembly the differentials should
have a length of 32.3~32.5 mm
measured from the ends of the installed
ball-bearings. If differentials are
longer, retighten the 4 screws holding
the crown gears.
32.3~32.5 mm
➊
➋
➌
➍
Tighten the screws equally Finish tightening in this order
971061
O 6x1.55
Ball-bearing with RUBBER covers.
Use HUDY Ball-Bearing
Grease or Oil for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
#106230 - Bearing Oil
To Next Page
