IMPORTANT NOTES – ELECTRICAL
• Insulate any exposed electrical wiring (using heat shrink tubing or electrical tape) to prevent dangerous short circuits.
• Use a recommended charger for the receiver and transmitter batteries and follow the instructions correctly. Over-charging, incorrect charging, or
using inferior chargers can cause the batteries to become dangerously hot.
• Regularly check the charger for potential hazards such as damage to the cable, plug, casing or other defects. Ensure that any damage is rectifi ed
before using the charger again.
• Do not allow the transmitter batteries to become low on charge, otherwise you risk losing control of the model.
• Do not allow any metal part to short circuit the receiver batteries or other electrical/electronic device on the model.
WARRANTY
XRAY guarantees this model kit to be free from defects in both material and workmanship within 30 days of purchase. The total monetary value under
warranty will in no case exceed the cost of the original kit purchased. This warranty does not cover any components damaged by use or modifi cation or as
a result of wear. Part or parts missing from this kit must be reported within 30 days of purchase. No part or parts will be sent under warranty without proof
of purchase. Should you fi nd a defective or missing part, contact the local distributor. Service and customer support will be provided through local hobby
store where you have purchased the kit, therefore make sure to purchase any XRAY products at your local hobby store. This model racing car is considered
to be a high-performance racing vehicle. As such this vehicle will be used in an extreme range of conditions and situations, all which may cause premature
wear or failure of any component. XRAY has no control over usage of vehicles once they leave the dealer, therefore XRAY can only offer warranty against
all manufacturer‘s defects in materials, workmanship, and assembly at point of sale and before use. No warranties are expressed or implied that cover
damage caused by what is considered normal use, or cover or imply how long any model cars‘ components or electronic components will last before
requiring replacement.
Due to the high performance level of this model car you will need to periodically maintain and replace consumable components. Any and all warranty
coverage will not cover replacement of any part or component damaged by neglect, abuse, or improper or unreasonable use. This includes but is
not limited to damage from crashing, chemical and/or water damage, excessive moisture, improper or no maintenance, or user modifi cations which
compromise the integrity of components. Warranty will not cover components that are considered consumable on RC vehicles. XRAY does not pay nor
refund shipping on any component sent to XRAY or its distributors for warranty. XRAY reserves the right to make the fi nal determination of the warranty
status of any component or part.
Limitations of Liability
XRAY makes no other warranties expressed or implied. XRAY shall not be liable for any loss, injury or damages, whether direct, indirect, special, incidental,
or consequential, arising from the use, misuse, or abuse of this product and/or any product or accessory required to operate this product. In no case shall
XRAY‘s liability excess the monetary value of this product.

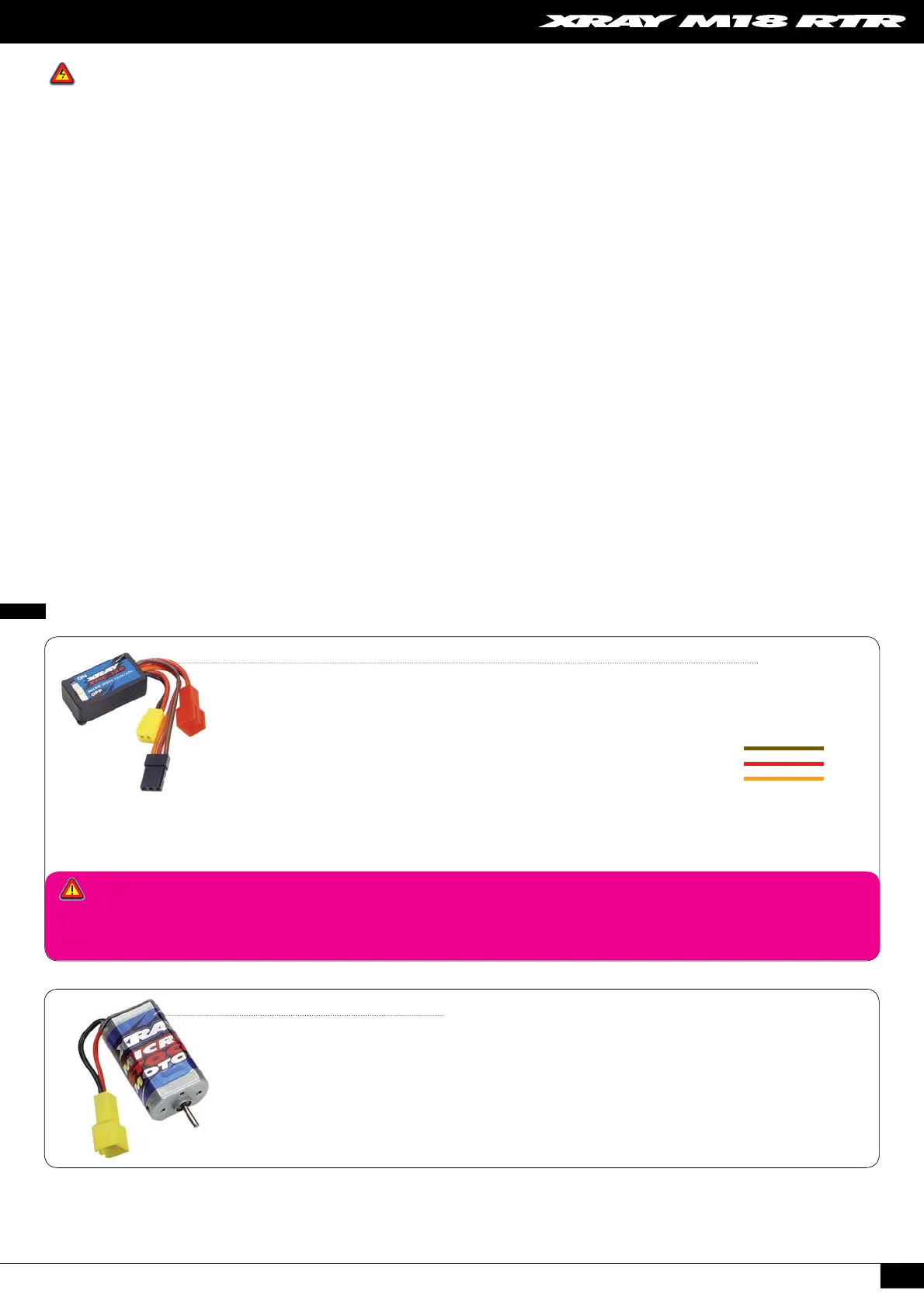

XMC180 ELECTRONIC SPEED CONTROLLER WITH REVERSE
The XRAY XMC180 is an ESC (electronic speed controller) that has been specially designed for the M18 micro race
car. Based on SMD technology, the result is a very small high-quality electronic device. The ESC features reverse,
proportional throttle and braking, and battery elimination circuitry (BEC).
XMC180 Technical Data
Input Power: 4-6 cell battery NiMH or NiCD / 4.8V-7.2V
Min. Resistance : 0.138 / 7.5V
Max. Resistance : 0.206 / 6V
Continuous Current : max. 3.6A
Peak Current : max. 27A / 0.05 sec.
PWM Frequency : 1900 Hz
BEC : 5V / 0.5A
Temperature Range : 0-40 °C / 32-72°F
Wire Lead Colors
Brown = ground
Red = power
Orange = signal
INCLUDED IN THE KIT
MICRO STOCK MOTOR
The high-performance micro stock motor provides high performance and long life. The motor includes an integrated
capacitor board so you do not need to solder any additional capacitors. The motor can be easily mounted on the
original composite motor holder of the M18. This motor works with 4-5 cells (nominal voltage 4.8-6.0V).
VERY IMPORTANT!
The XMC180 ESC is designed for use only with the micro stock motor and 5-cell battery pack. DO NOT use this speed control for micro modifi ed or
super size motor, as this will damage the speed controller. DO NOT use this speed control for 6-cell and more battery packs as this will damage the
speed controller.
