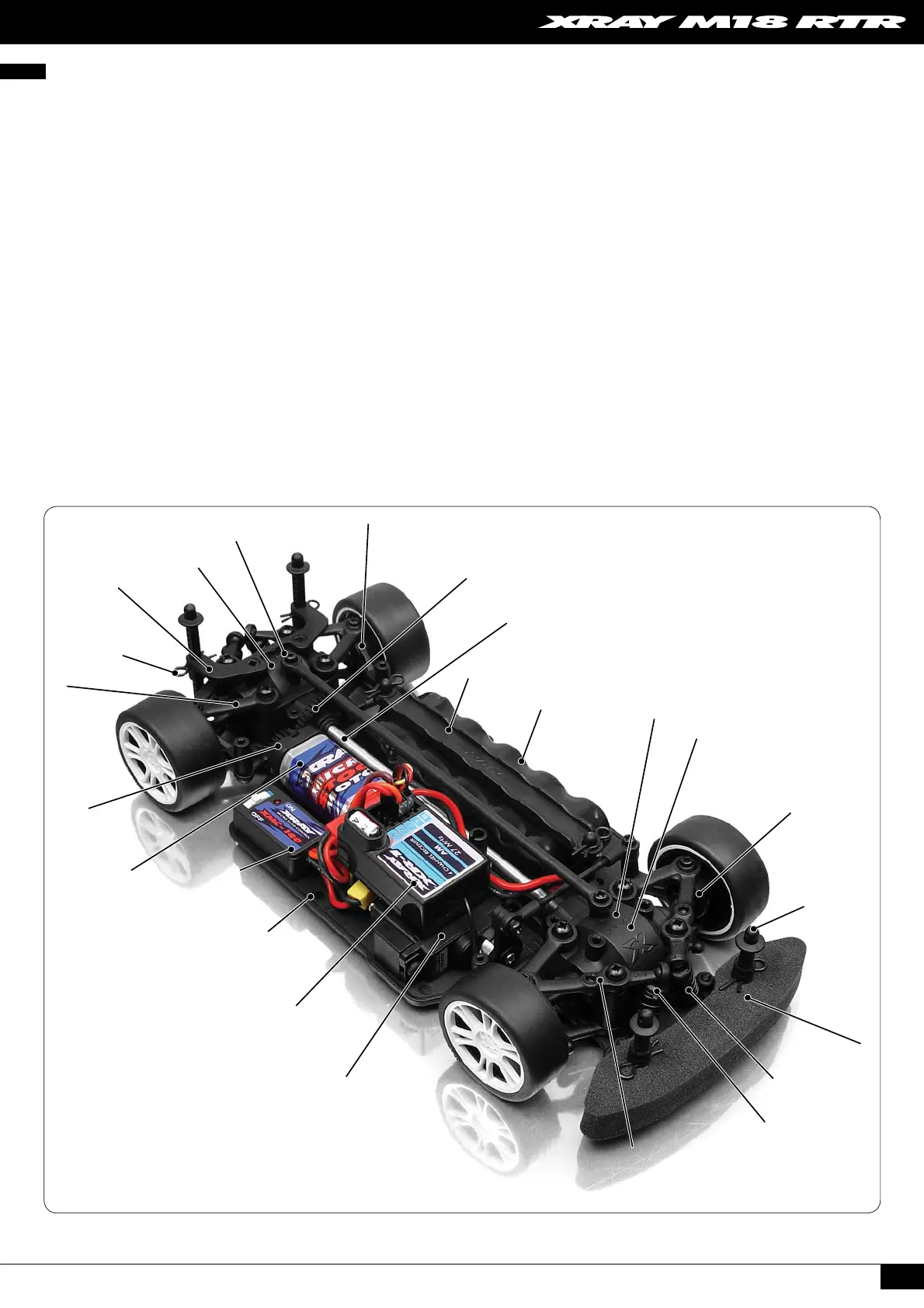

M18 COMPONENTS
• Foam bumper – protects the front end of the car in the event of front collision
• Body posts – adjustable height posts support the body shell
• Body clip – small metal clips that go through the holes in the body posts, securing the body to the body posts
• Shock absorbers – coil-over shock absorbers provide smooth suspension movement when driving the car through corners and going over bumps
• Shock springs – wound metal coil springs provide damping for the suspension when going over bumpers or around corners
• Front suspension arms – molded composite front suspension arms provide smooth suspension movement and suspension rigidity
• Front diff case – molded composite case that encloses the front gear differential
• Front differential (inside) – molded composite gear differential allows the front wheels (inner and outer) to rotate at different speeds when turning a
corner, just a like real car
• Steering block – molded composite steering blocks support the front wheels and driveshafts, allowing smooth wheel rotation and left/right steering
• Chassis – molded composite main chassis plate provides a solid base for the other car components to attach to
• Servo – high-quality XRAY servo provides smooth, fast steering control
• Receiver – high-quality XRAY radio receiver receives signals from transmitter and controls the attached motor speed controller and steering servo.
• Speed control – high-quality XRAY motor speed controller controls the operation of the motor
• Motor – high-quality XRAY micro stock motor provides power to the car’s wheels through the transmission
• Motor holder – molded composite motor holder secures the motor to the chassis and allows fi ne gear-mesh adjustment
• Battery pack – high-quality XRAY battery pack contains 5 individual cells connected in series, providing 6.0V of power for your car
• Battery brace – molded composite battery brace secure the battery pack to the chassis
• Spur gear – molded composite spur gear, driven by the motor, drives the car’s transmission
• Main drive shaft – machined aluminum main drive shaft connects the front and rear transmissions, providing full-time 4WD power
• Rear diff case – molded composite case that encloses the rear gear differential
• Rear differential (inside) – molded composite gear differential allows the rear wheels (inner and outer) to rotate at different speeds when turning a
corner, just a like real car
• Rear uprights – molded composite uprights support the rear wheels and driveshafts, allowing smooth wheel rotation
• Rear body post holder – molded composite plate holds the rear body posts, allows height adjustment
• Rear suspension arms – molded composite rear suspension arms provide smooth suspension movement and rigidity
