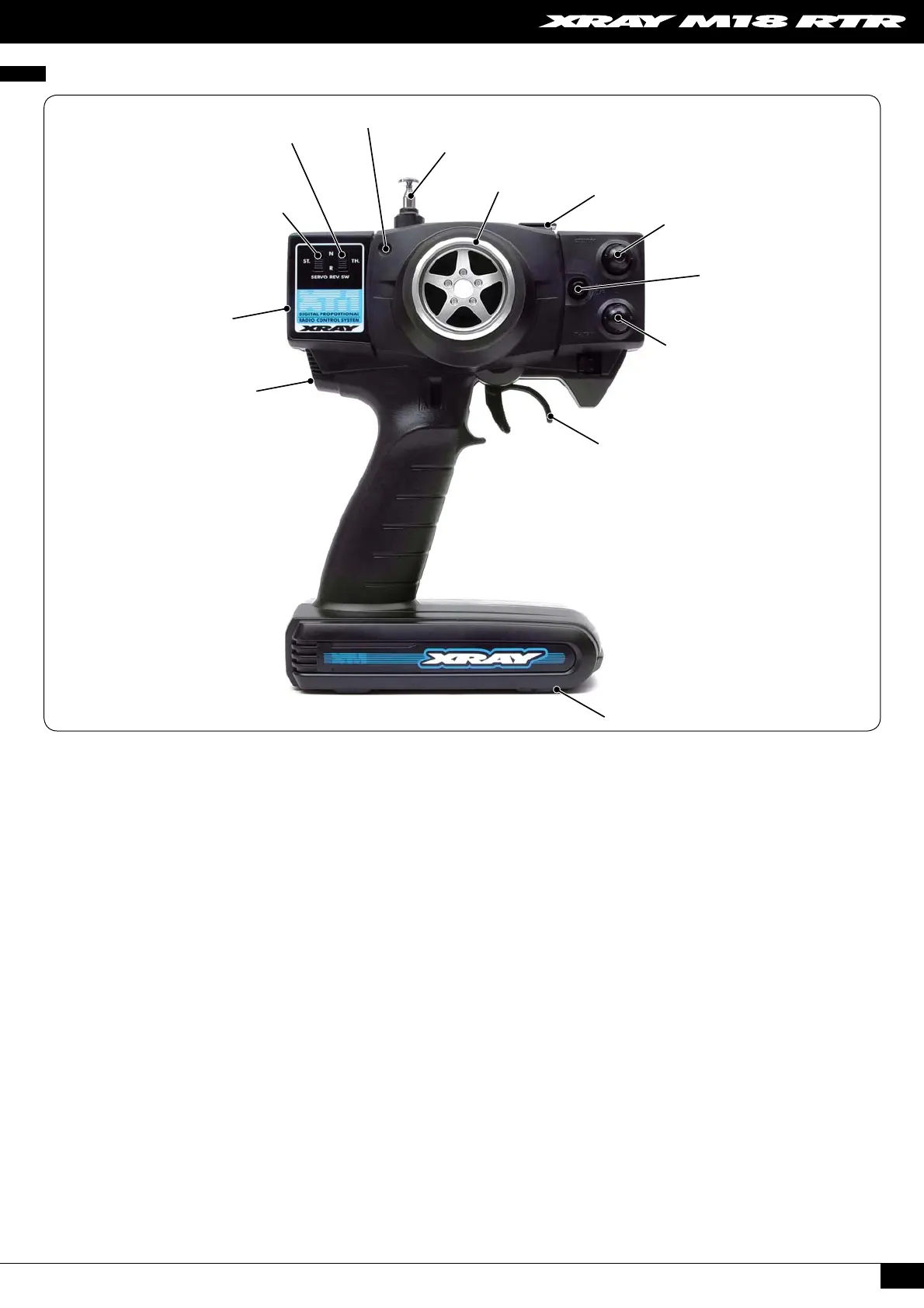

XT1 TRANSMITTER CONTROLS
Transmitter Antenna
Transmits the radio signal from the transmitter. Always extend the
transmitter antenna before you operate the transmitter; otherwise you
risk create interference to another modeller.
Transmitter Crystal
Solid-state plug-in crystal allows you to change the frequency on which
your transmitter broadcasts. The receiver must contain the matching
frequency crystal.
Steering Trim
Adjusts the steering left/right in small increments so the model runs
straight when the transmitter steering wheel is at rest (centered).
Throttle Trim
Adjusts the throttle neutral position up/down in small increments so
the car does not move when the transmitter throttle trigger is at rest
(neutral)
Throttle Trigger
Controls the forward/reverse movement of the car. Car moves forward
when you pull the throttle trigger, and moves in reverse when you push
the throttle trigger.
Steering Wheel
Controls the left/right steering of the car.
XRAY RADIO SYSTEM
Power Switch
Turns the transmitter on or off.
Steering D/R (Dual Rate)
Adjusts the steering sensitivity.
External Charging Jack
Recharges the transmitter battery if you are using a rechargeable battery
pack.
Steering Reverse
Changes the direction of the car’s steering in relation to the way you turn
the transmitter steering wheel. Always be sure the steering reverse is in
the “R“ position.
Throttle Reverse
Changes the car’s forward/reverse direction in relation to the way you
move the transmitter throttle trigger. Always be sure the throttle reverse
is in the “R“ position.
Battery Cover
Covers the transmitter battery compartment
Battery Indicator
LED indicates the transmitter battery voltage level. If the Red LED does
not light up, please replace the transmitter batteries (8x AA batteries).
Transmitter Antenna
Steering Wheel
Transmitter Crystal
Steering Trim
Steering D/R (Dual Rate)
Throttle Trim
Throttle Trigger
Battery Cover
Power Switch
Steering Reverse
Throttle Reverse
Battery Indicator
External Charging Jack
