31
14.
1.
14.
2.
14.
3.

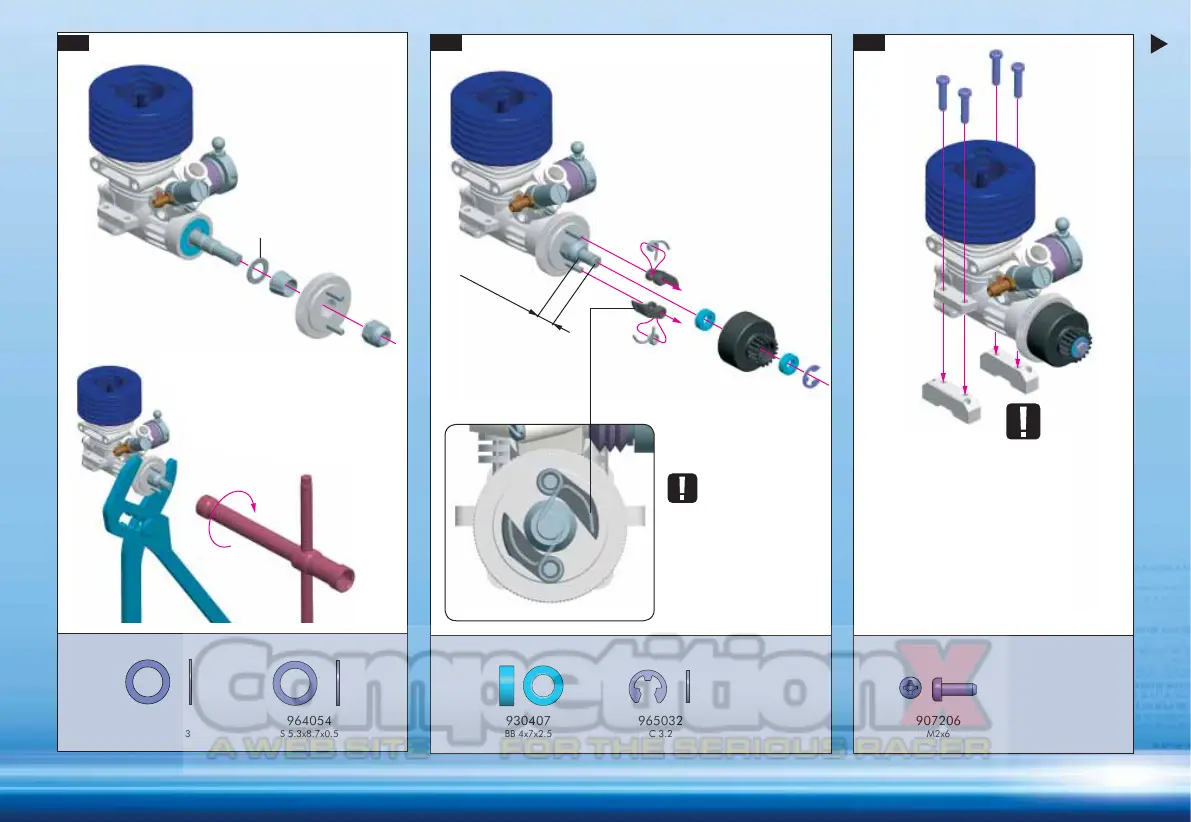

Use suffi cient shims to
obtain minimal clutchbell
endplay - movement of
clutchbell along crankshaft.
5.3 x 8.7 x 0.3/0.5
Tighten the fl ywheel using
HUDY wrench #107581
Note the orientation of the
clutch shoes. The short side
of spring must be in the
groove of the fl ywheel nut.
7.5~7.7mm
After assembling the fl ywheel, the end of
the crankshaft should protrude
7.5~7.7mm from the nut. Insert shims
as in previous step, to adjust this
clearance appropriately.
Note orientation
of the upper
engine mounts.
964053
S 5.3x8.7x0.3
964054
S 5.3x8.7x0.5
930407
BB 4x7x2.5
965032
C 3.2
907206
M2x6
907206
M2x6
To Next Page
