36
.
14.
6.

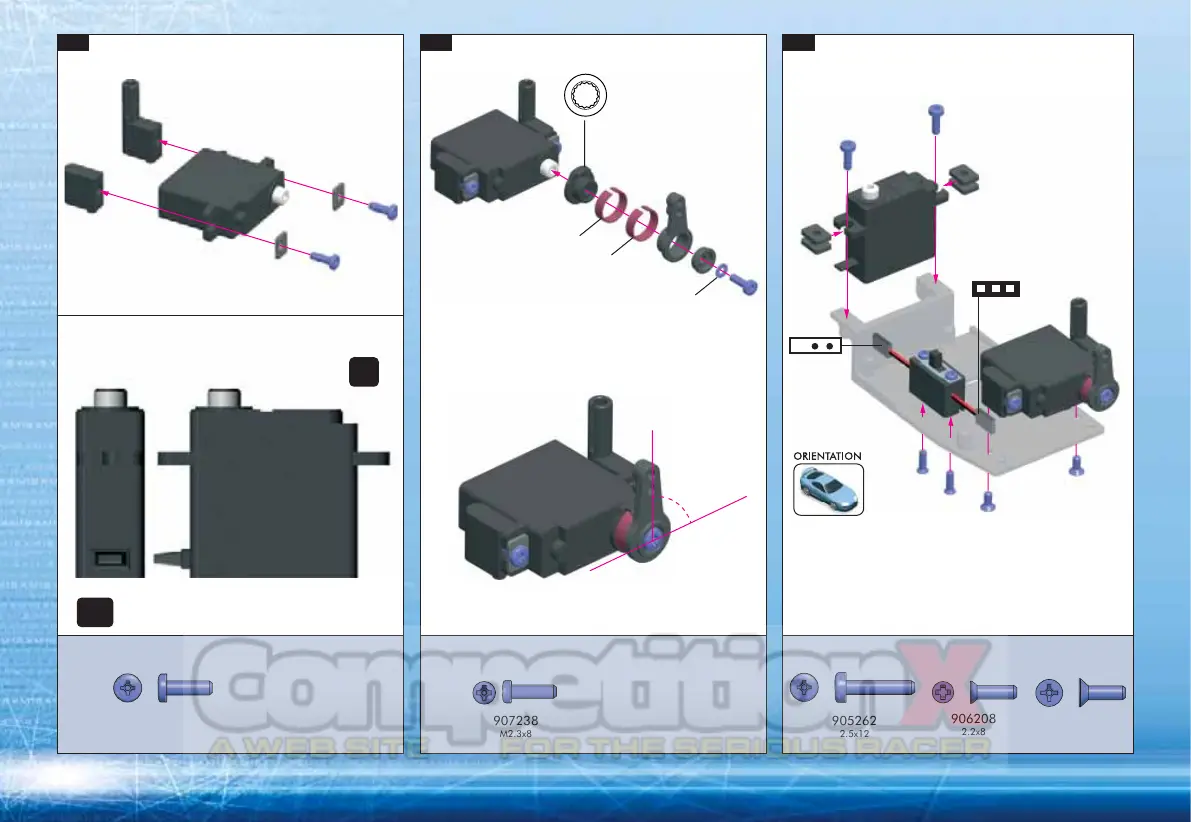

USE A MICRO SERVO THAT IS SIMILAR TO
OR SMALLER THAN THE SERVO SHOWN
14.
5.
1:1
TIP
14.
4.
90°
Shim
from servo
USE #389170 XRAY MICRO SERVO
Use servo horn
for your servo
Large ring
Small ring
After you connect the servo and it is in neutral, the servo horn
must be perpendicular to the servo body.
Switch with connecting cable and two 2.2x8 screws included
only in kit #380921.
Servos and rubber tabs included only in kit #380291
Male
connector
Female
connector
905258
2.5x8
907238
M2.3x8
906258
2.5x8
906208
2.2x8
905262
2.5x12
906208
2.2x8
906258
2.5x8
To Next Page
