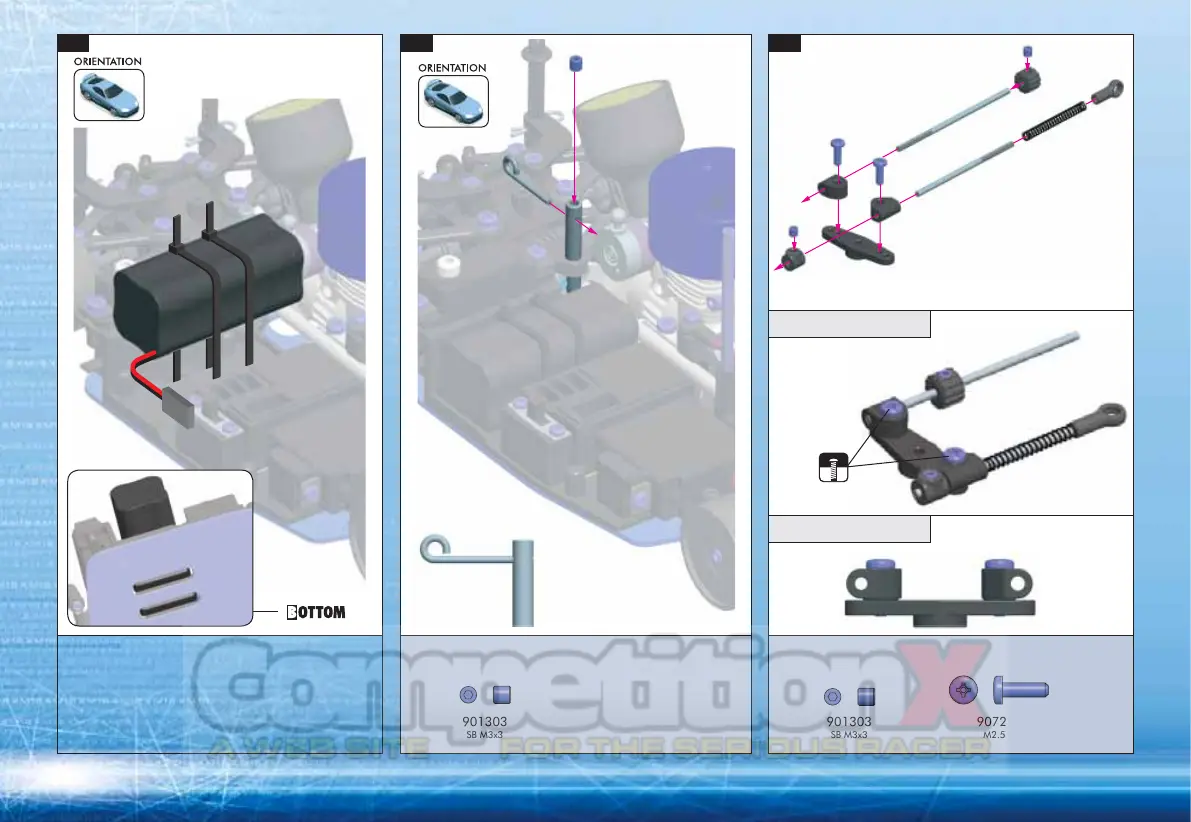

Xray NT18 - Page 37

38
14.
10.
14.
11.
14.
12.
0mm (fl ush)
Brake rod
Throttle rod
DETAIL
ASSEMBLED VIEW
Receiver battery pack #389150
included in kit #380291
Thread brake rod into pivot
until fl ush with end (as shown)
SIDE VIEW
Do not overtighten
pivot screws; pivots
must move freely
without binding
901303
SB M3x3
901303
SB M3x3
907258
M2.5x8
