Xray X12 User Manual

5
BUILD VIDEO
▶
FRONT SUSPENSION

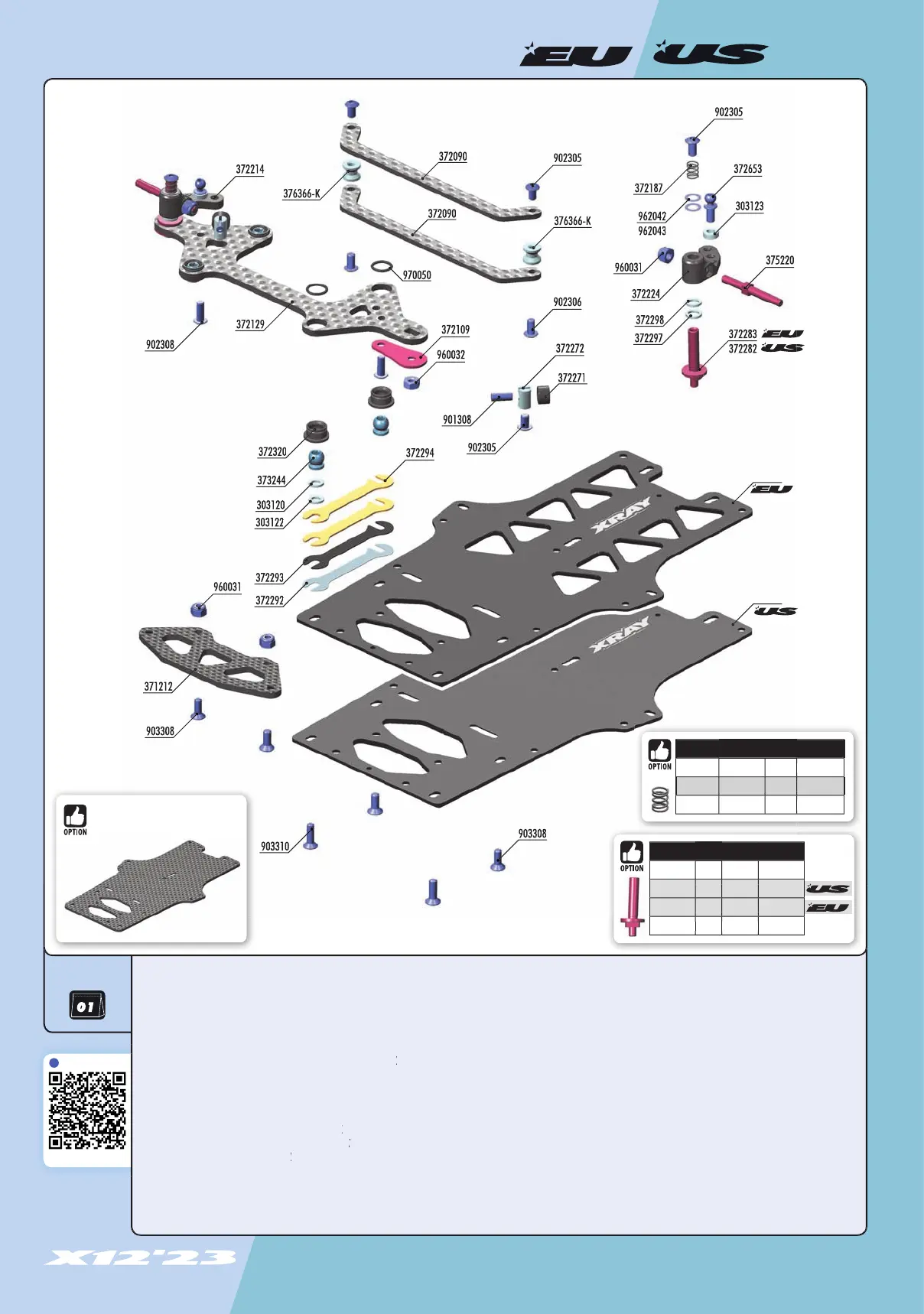

1. FRONT SUSPENSION
372293
372292
903308
371212
903310
303122
303120
373244
372320
902308
901308
902305
376366-K
962042
962043
372187
372297
372298
372224
960031
372283
372282
372129
960031
902305
902305
372653
303123
375220
960032
372090
372090
372214
902306
372272
372271
371120
903308
371119
970050
372109
372294
376366-K
BAG
303120
SET OF AL
U SHIM (0.5MM, 1.5MM, 2.5MM)
303122
AL
U SHIM 3x6x1.0MM (10)
303123
AL
U SHIM 3x6x2.0MM (10)
371212
GRAPHITE BUMPER L
OWER HOLDER 2.5MM
372090
FRONT BRACE - GRAPHITE 2.2MM
372109
STEEL L
OWER SUSPENSION ARM BRACE (2)
372129
GRAPHITE L
OWER SUSPENSION ARM PLATE FOR STEERING LOCK 2.5MM
372187
FRONT COIL SPRING FOR 4MM PIN C=1.8-2.0 - SIL
VER (2)
FRONT COIL SPRING FOR 4MM PIN C=1.8-2.0 - SILVER (2)FRONT COIL SPRING FOR 4MM PIN C=1.8-2.0 - SIL
372214
COMPOSITE STEERING BL
OCK FOR 4MM KING PIN - RIGHT - GRAPHITE
372224
COMPOSITE STEERING BL
OCK FOR 4MM KING PIN - LEFT - GRAPHITE
372271
COMPOSITE STEERING BL
OCK BACKSTOP (2)
372272
AL
U STEERING LOCK (2)
372282
X12 KING PIN 4MM - 1° - NICKEL COA
TED (2)
X12 KING PIN 4MM - 1° - NICKEL COATED (2)X12 KING PIN 4MM - 1° - NICKEL COA
372283
X12 KING PIN 4MM - 1.5° - NICKEL COA
TED (2)
X12 KING PIN 4MM - 1.5° - NICKEL COATED (2)X12 KING PIN 4MM - 1.5° - NICKEL COA
372292
STEEL SHIM 0.2MM - SIL
VER (2)
STEEL SHIM 0.2MM - SILVER (2)STEEL SHIM 0.2MM - SIL
372293
STEEL SHIM 0.4MM - BLACK (2)
372294
STEEL SHIM 0.6MM - GOLD (2)
372297
AL
U SHIM 4x6x1.0MM (10)
372298
AL
U SHIM 4x6x0.5MM (10)
372320
COMPOSITE ARM BUSHING (4)
372653
BALL END 4.2MM WITH 8MM THREAD (2)
373244
BALL END 6.0MM WITH HEX - HUD
Y SPRING STEEL™ (2)
375220
FRONT WHEEL AXLE (2)
376366-K
AL
U MOUNT 6.0MM - BLACK (2)
901308
HEX SCREW SB M3x8 (10)
902305
HEX SCREW SH M3x5 (10)
902306
HEX SCREW SH M3x6 (10)
902308
HEX SCREW SH M3x8 (10)
903308
HEX SCREW SFH M3x8 (10)
903310
HEX SCREW SFH M3x10 (10)
960031
AL
U NUT M3 (10)
960032
NUT M3 (10)
962042
W
ASHER S 4x6x0.1 (10)
962043
W
ASHER S 4x6x0.2 (10)
970050
O
-RING 5x1 (10)
371119 X12 ALU SOLID CHASSIS 2.0MM - 7075 T6
371120 X12 ALU FLEX CHASSIS 2.0MM - 7075 T6
FRONT COIL SPRINGS
#372186
C=1.5-1.7
GOLD OPTION
GOLD OPTION
#372187
C=1.8-2.0
SILVER INCLUDED
SILVER INCLUDED
#372188
C=2.1-2.3
BLACK OPTION
BLACK OPTION
#371121
GRAPHITE CHASSIS
CAMBER - KING PIN AXLES
#372285 0.5º 4 DOTS OPTION
#372285 0.5º 4 DOTS OPTION
#372285 0.5º 4 DOTS OPTION
#372285 0.5º 4 DOTS OPTION
#372282 1º 3 DOTS INCLUDED
#372282 1º 3 DOTS INCLUDED
#372282 1º 3 DOTS INCLUDED
#372282 1º 3 DOTS INCLUDED
#372283 1.5º 1 DOT INCLUDED
#372283 1.5º 1 DOT INCLUDED
#372283 1.5º 1 DOT INCLUDED
#372283 1.5º 1 DOT INCLUDED
#372284 2º 2 DOTS OPTION
#372284 2º 2 DOTS OPTION
#372284 2º 2 DOTS OPTION
#372284 2º 2 DOTS OPTION
