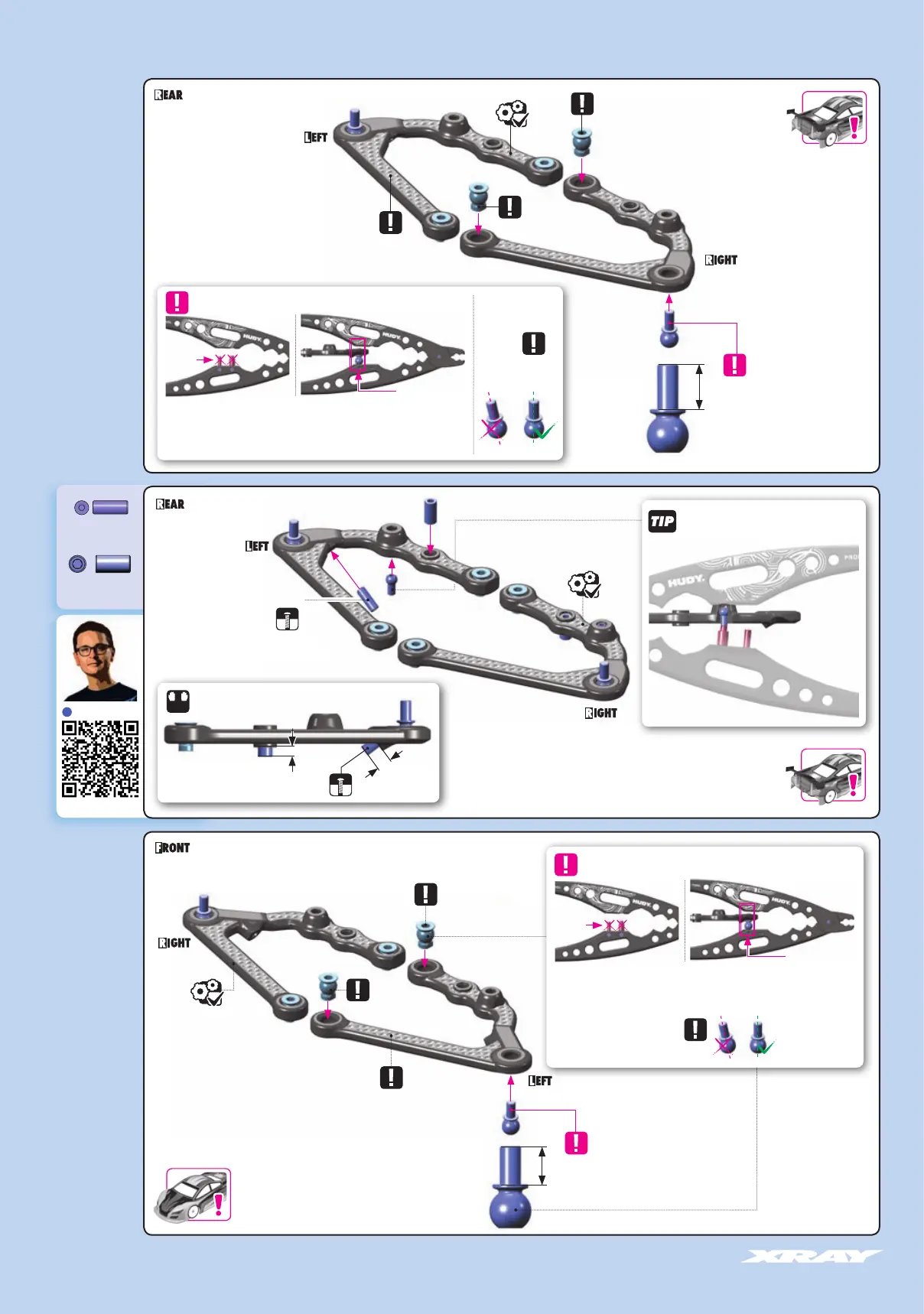

Xray X4F'25 - Page 10

10
LOWER ARMS
VIDEO TECH TIP
▶
901408
SB M4x8
901308
SB M3x8
SUSPENSION ARMS
2x
2x
SUSPENSION ARMS
SUSPENSION ARMS
2. FRONT & REAR SUSPENSION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
6.5mm THREAD
5.5mm THREAD
NOTE
ORIENTATION
3x8mm
4x8mm
Make sure to
NOT OVERTIGHTEN
LEFT = RIGHT
L=R
2.6mm
4.0mm
Make sure to NOT OVERTIGHTEN
Install the pivot balls with Professional
Multi Tool (HUDY #183011).
Install the pivot balls with Professional Multi Tool (HUDY #183011).
To make sure that the pivot ball is pressed into the arm correctly, remove the
pins from the HUDY Multi Tool and use the exact press position like shown on
the picture. This way the ball will never go through the arm and will NOT create
any excessive play.
Remove
the pins.
PRESS POSITION
Install the pivot balls with Professional Multi Tool (HUDY #183011).
To make sure that the pivot ball is pressed into the arm correctly, remove the
pins from the HUDY Multi Tool and use the exact press position like shown on
the picture. This way the ball will never go through the arm and will NOT create
any excessive play.
Remove
the pins.
PRESS POSITION
Press
straight
Press
straight
