Page #16 background imageLoading...
Page #16 background image
DIRTCARPET
2x
4x
2x
16

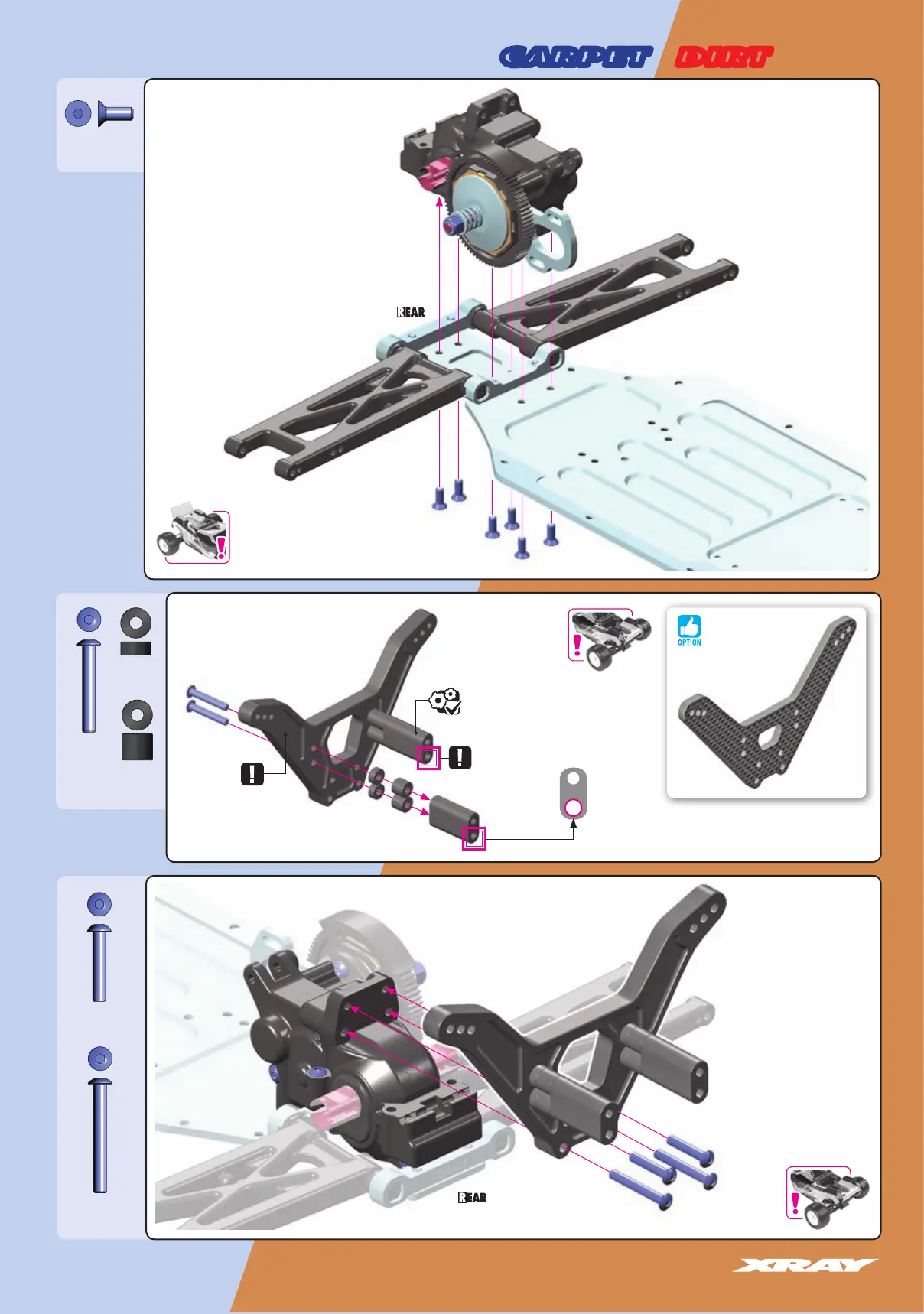

3. REAR SUSPENSION
NOTE
ORIENTATION
NOTE ORIENTATION
309319
SHIM 3x7x3
309319
SHIM 3x7x6
3mm
6mm
Larger diameter hole
Larger hole
Smaller hole
3x20mm
3x25mm
3x25mm
3x16mm
3x16mm
902325
SH M3x25
902316
SH M3x16
902320
SH M3x20
903308
SFH M3x8
6x
4x
4x
#323092
GRAPHITE SHOCK TOWER
REAR
3x8mm
