XS Power IntelliCHARGER User Manual

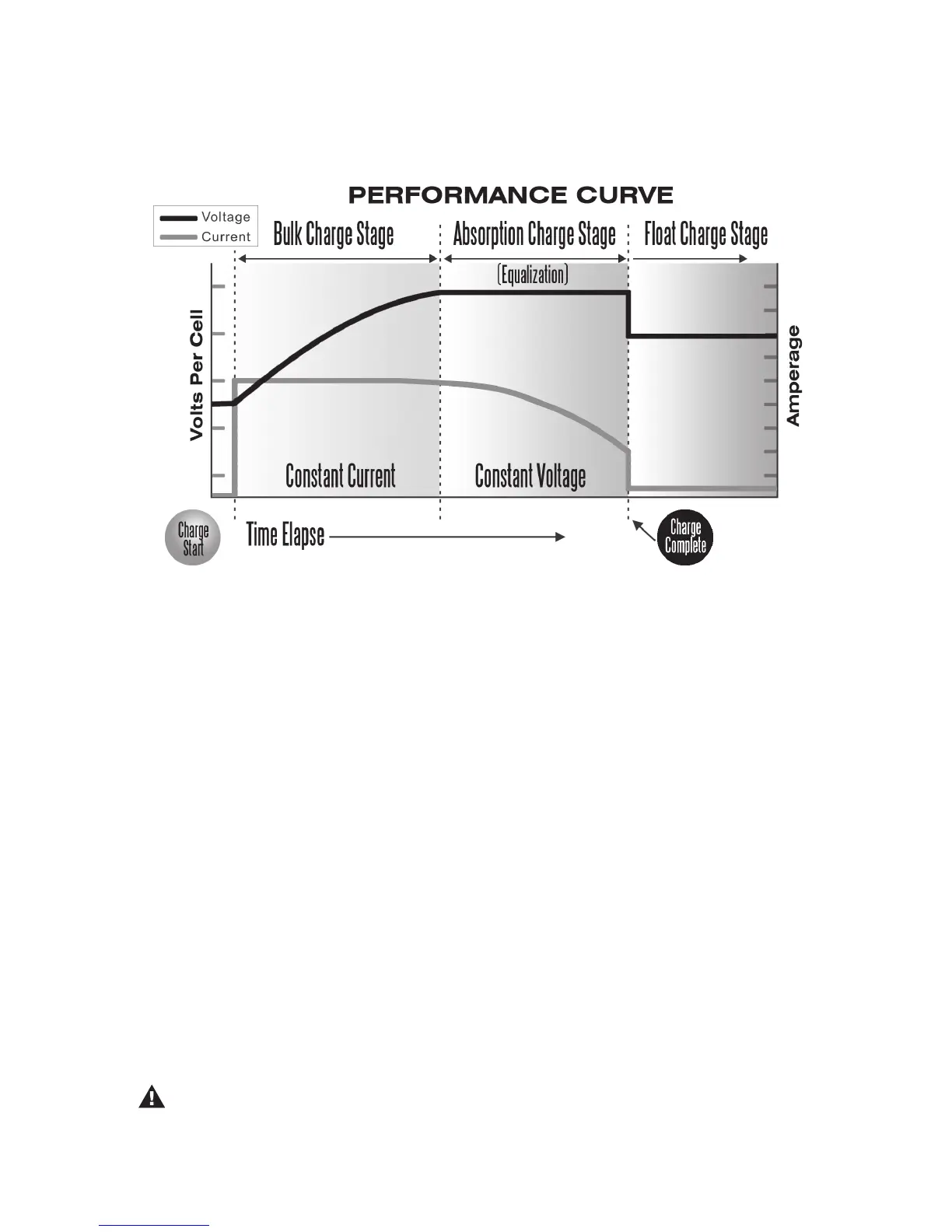

Figure B-1 Three-stage charging profile
FAQ’s
Can I change the clamps on the charger with quick disconnects?
Yes. We recommend soldering all electrical connections where possible.
Can I run my electric water pump and cooling fan while charging?
Yes with a word of caution. There are two issues. First the charger will only provide 25A maximum
chargecurrent.Anyamperagebeingconsumedbyextraelectricalloads(ie.electricwaterpumps,
etc.)willtakeawayfromtheamperageavailableforbatterycharging.Thebatterychargetimewill
be increased. In addition, the battery charger monitors the battery voltage and time to determine
when the battery is at 100% charge. Extra electrical loads on the system will give the charger
false information and therefore will prevent the charger from properly completing stage two.
Second, some electrical items can be damaged by high voltages. Data loggers, computers, and
other items may lose data or be seriously damaged if subjected to the 19.0~20.0VDC of charging
voltage. We do not recommend retrieving this information while charging. If in doubt about a
particular component, consult with its manufacturer concerning its maximum input voltage.
CAUTION: Data loggers, computers of all sorts, and light bulbs may be damaged by the 19.0~20.0VDC
of input voltage during charging. Do not operate these items while charging. We recommend disconnecting
the battery from the system while charging.
FAQ’s
XS Power IntelliCHARGER User Guide
FAQ
9
