XS Power IntelliSUPPLY PSC30 User Manual

Warning :
Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
DC Negative Bus
Warning :
Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
12V 14V 16V
C R P
Mode Selection
C = Charge Mode
R = Recovery Mode
P = Power Supply Mode
12V 14V 16V
C R P
Mode Selection
C = Charge Mode
R = Recovery Mode
P = Power Supply Mode
DC Output
XS Power IntelliSUPPLY User Guide
Chapter 1

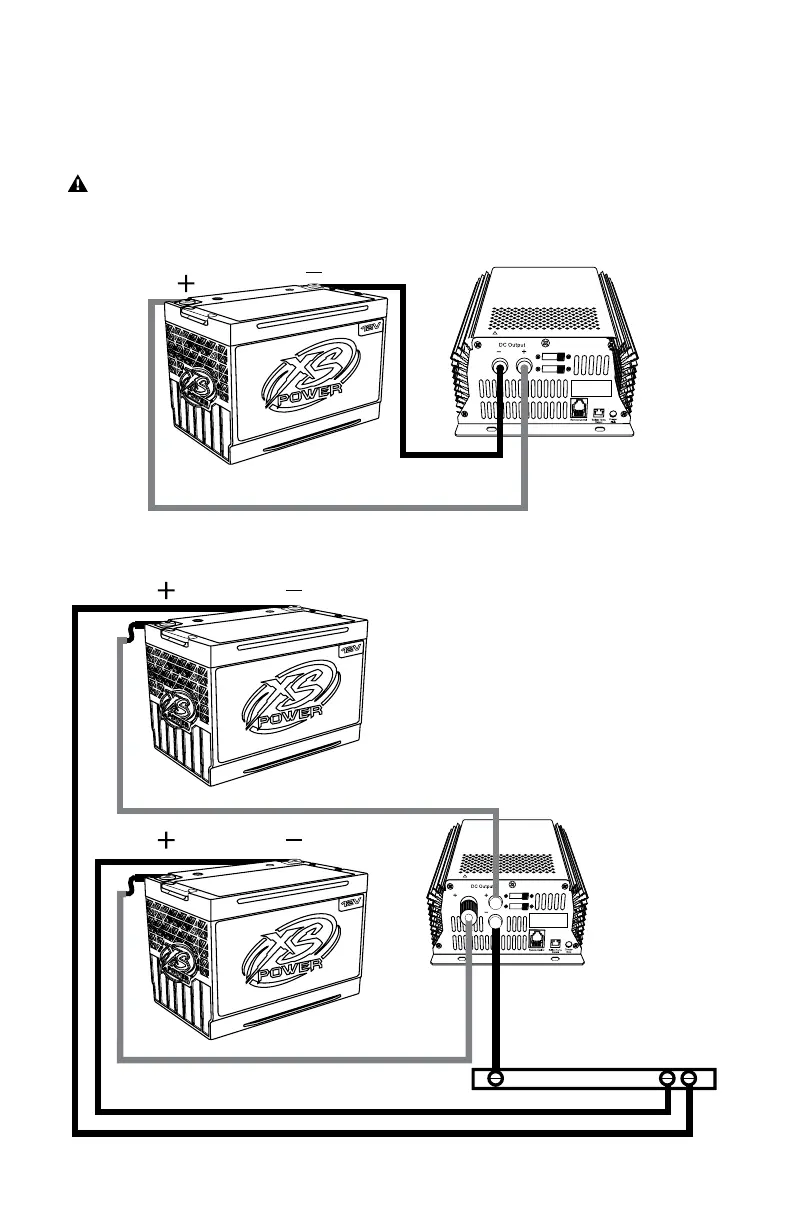

Installation Diagram
IMPORTANT: Before charging, read the instructions. Disconnect the PSC unit before making or
breaking the connections to the battery.
4
Negative
Positive
Warning :
Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
DC Negative Bus
Warning :
Don't reverse the (+) and (-) of the battery!
Or internal damage will result!
12V 14V 16V
C R P
Mode Selection
C = Charge Mode
R = Recovery Mode
P = Power Supply Mode
12V 14V 16V
C R P
Mode Selection
C = Charge Mode
R = Recovery Mode
P = Power Supply Mode
DC Output
PSC15 / PSC30
PSC60
Negative
Positive
Positive
Negative
Negative
The PSC60 can be used as a dual bank charger, meaning
it has a secondary output that allows independent charg-
ing of two isolated batteries or battery banks. When using
this feature, the charger will automatically sense how much
current to deliver to each battery or battery bank and will
provide different levels of current as needed to each until
both are fully charged. This feature is designed for use on
common voltage batteries only, so connecting a 12V and a
16V battery to one charger will result in improper charging
of one of the batteries and may cause irreversible damage.
