Front and Rear Panel
Switches and Indicators
XS Power IntelliSUPPLY User Guide
Chapter 1
WARNING: Don’t reverse the (+) and (--) of the battery! Or internal damage will result!
PSC15 / PSC30 Product Introduction
WARNING: Before installing and using the PSC unit, read all instructions and cautionary markings
on the unit, the batteries, and all appropriate sections of this guide.

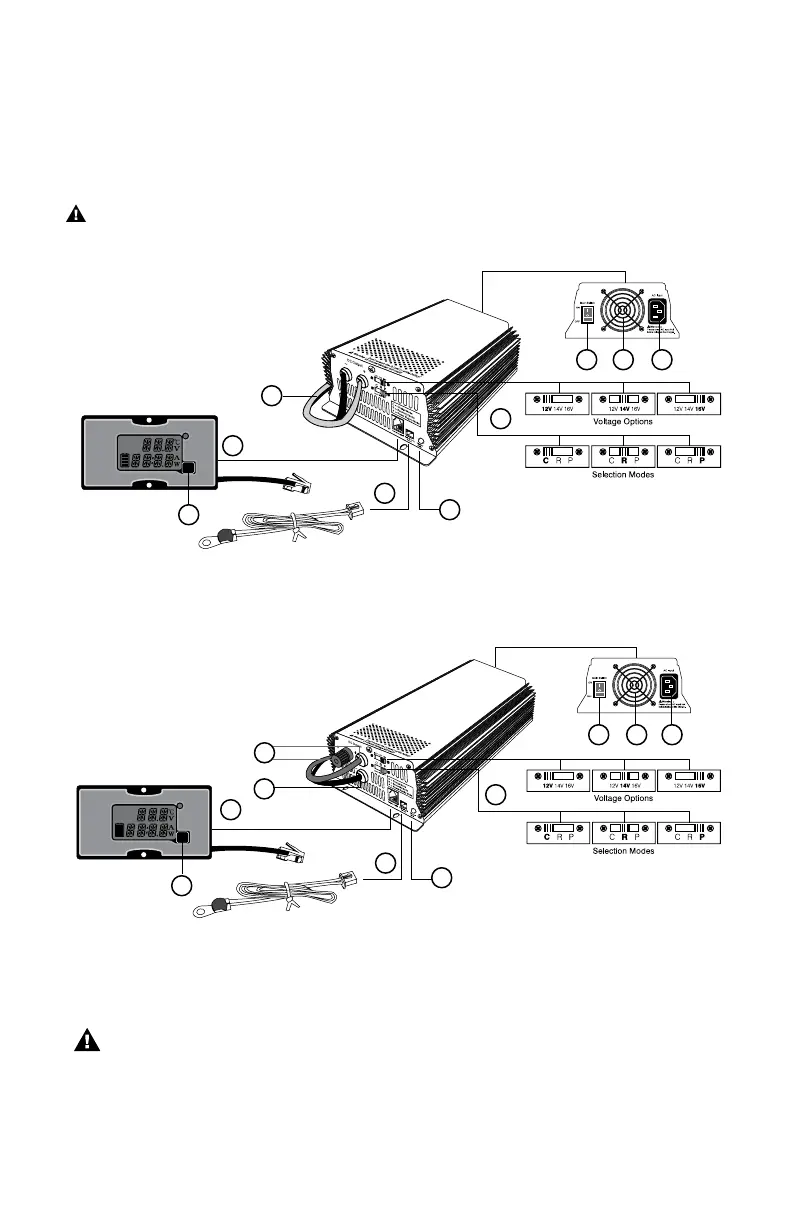

1- DC Output(+Red / - Black) 2- Main On/Off Switch 3- Unit Cooling Fan 4- AC Input 5- Mode/Voltage Selection
6- Charging Status 7- Battery Temperature Sensor(note1) 8- Slave Switch(note2) 9- LCD Remote Control
PSC60 Product Introduction
Note 1: Battery Temp. Sensor: To detect the battery temp. while charging, please connect the wire sensor to
the battery housing (the ring terminal should touch the battery housing) with adhesive or tape.
Note 2: The slave switch of the remote control just cuts out the output. If you want to turn off the charger
completely, please switch off main switch of charger body.
1- DC Output(+Red-Primary[1st] / Secondary[2nd]) 2- DC Output(- Black) 3- Main On/Off Switch 4- Unit
Cooling Fan 5- AC Input 6- Mode/Voltage Selection 7- Charging Status 8- Battery Temperature Sensor(note1)
9- Slave Switch(note2) 10- LCD Remote Control
2
1
4
5
6
7
8
9
3
10
2
1
4 5
6
7
8
9
3
1st
2nd

XS Power IntelliSUPPLY PSC30 Specifications

General

Brand	XS Power
Model	IntelliSUPPLY PSC30
Category	Power Supply
Language	English
