ENGLISH - 17
Make sure that hole size is minimum so that the
cable can pass through
E-2
Place cable holder 30cm away from the rear center of the antenna. Apply masking tape 5mm from
away the outside of holder
E-3
E-1
Drill a 20mm hole in the center of the tape
marking
D-2D-1

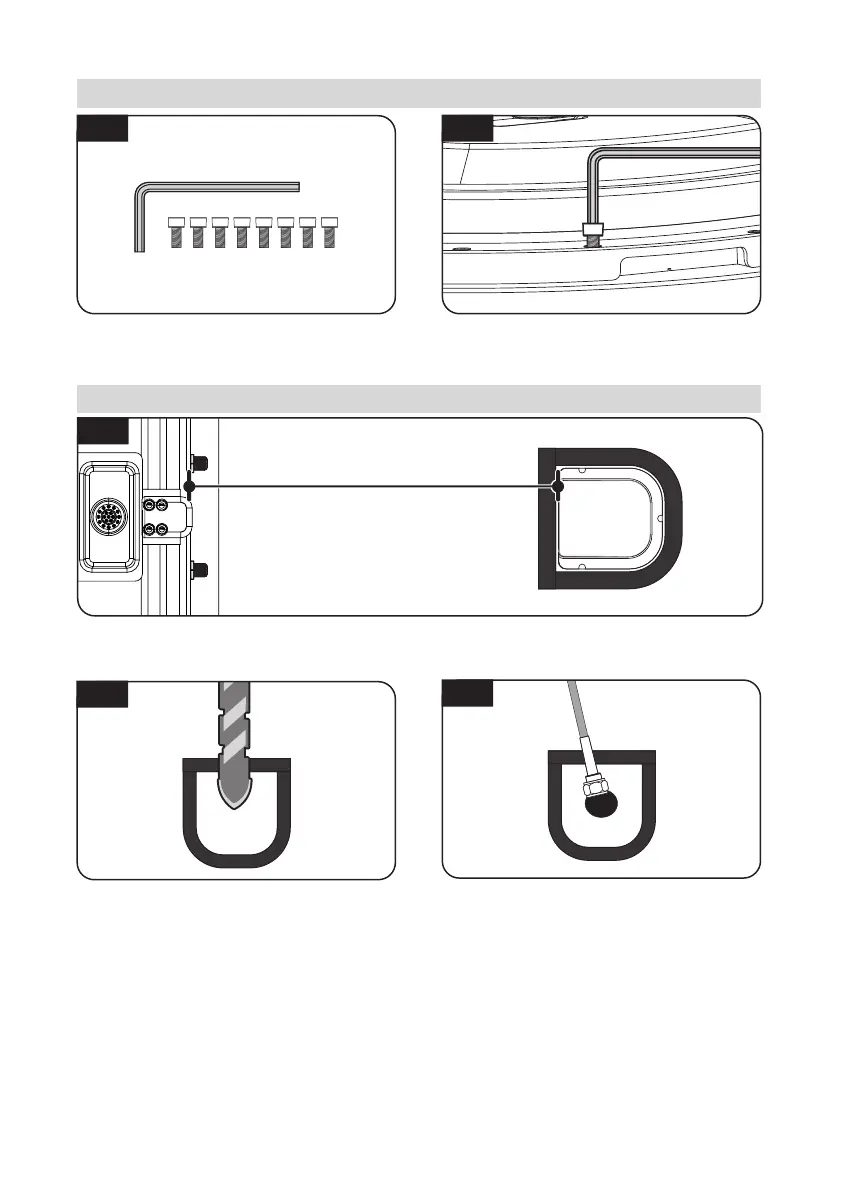

D. Fix mounting plate with 8 pcs of M6x15 bolt using allen wrench
E. Cable holder installation 1
Place the antenna on mounting plate and
tighten firmly each bolt by allen wrench
Parts required, allen wrench and eight(8) of
M6×15 bolt
approx. 30cm
To Next Page
