XT XT-6300 Series - LED Definition; Current Consumption; Device Mounting Options

6
Version 1.3
LED Definition
Current Consumption
OPERATING MODE
CURRENT CONSUMPTION
Deep Sleep
3 mA
Standby
10 mA
Active Transmit/Receive
65 m

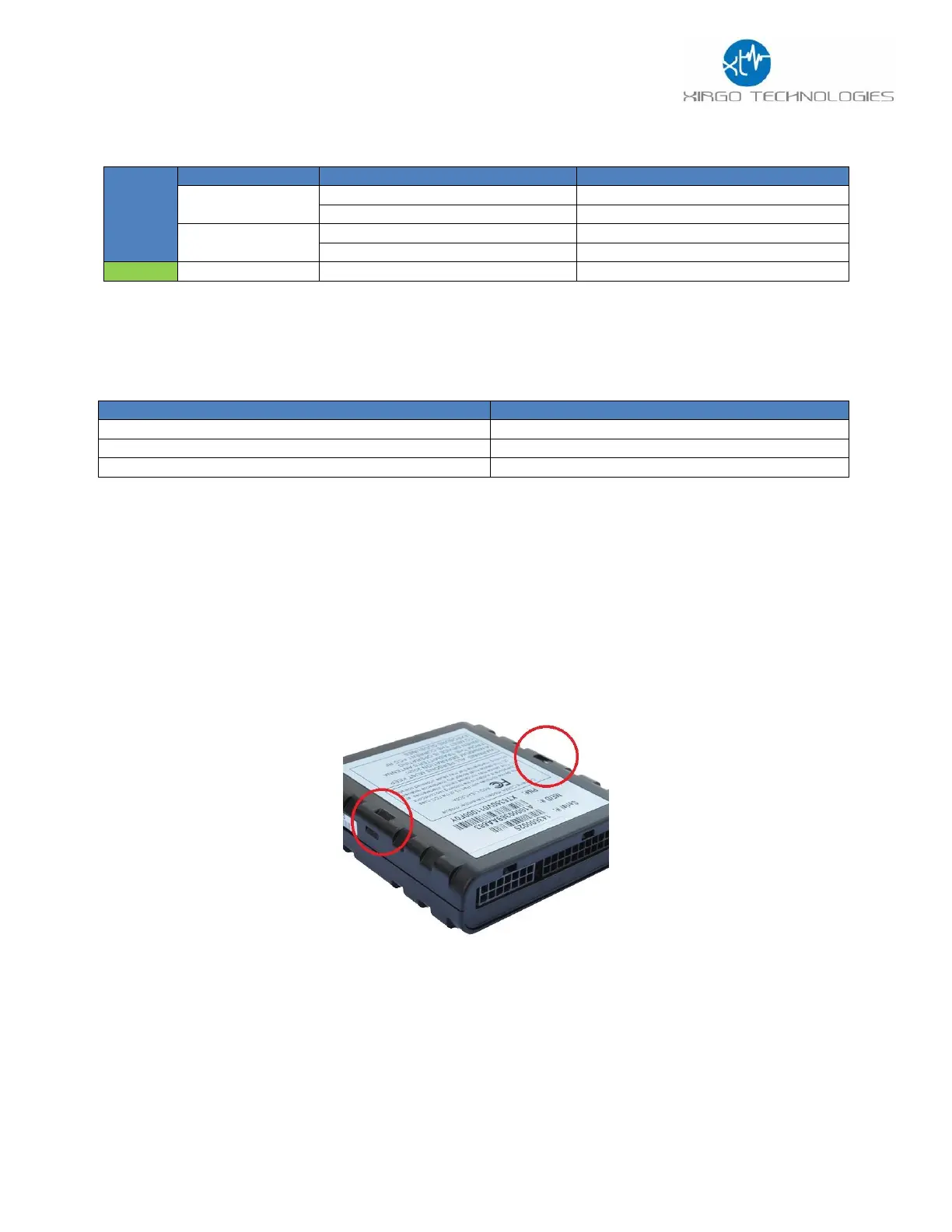

Device Mounting Options
The XT6350 must be securely installed. The XT650 accelerometer will not calibrate if unit is loose
and moves when vehicle is in motion. When mounting the XT6350 use the space provided to
insert a tie strap to secure the device.
BASE
UNIT
LED
Description
Status
Cellular (Amber)
Searching for Cellular Network
LED OFF
Cellular Carrier Lock
Solid
GPS (Green)
Searching for satellite
Solid
GPS Lock
Blinking
Optional
Bluetooth (Blue)
TBD
TBD
