Xterra ERG160 User Manual

ERG160 Rower
13

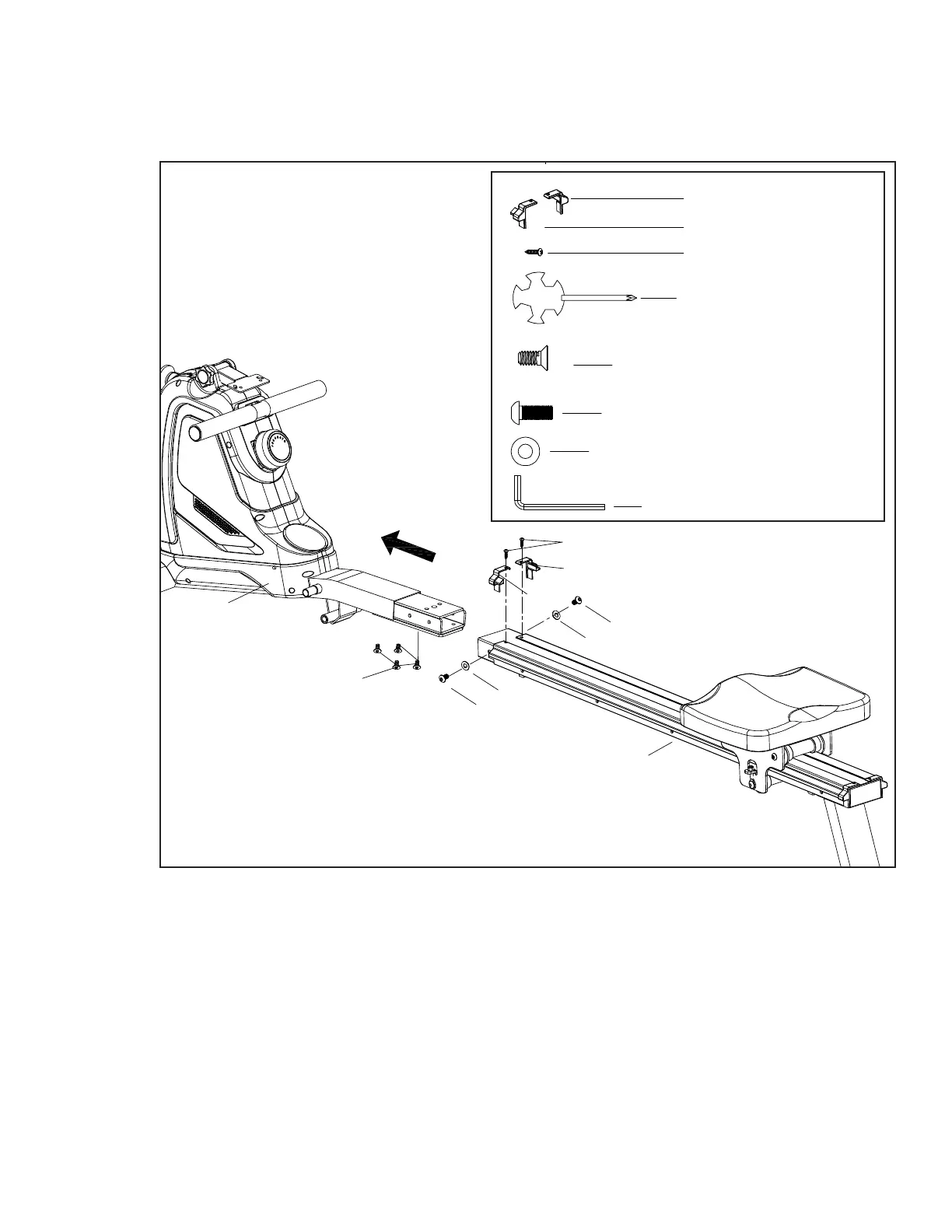

1. Insert the Slide Rail (2) into the Main Frame (1), secure with 2 Flat Washers (44)
and 2 Allen Bolts (46) and 4 Allen Bolts (92).
2. Attach the Stop Brackets (11 & 15) to the Sliding Rail (2) and secure them with
2 Self-tapping Screws (59).
ERG160 Assembly Instructions
Slide Rail
4
#46 M8*15 2pcs
#99 S5 1pc
#44 OD20*ID8.5*1.5 2pcs
#92 M8*15 4pcs
STEP-4
2
1
46
44
46
44
92
59
15
11
#59 ST4.0*16 2p
cs
#11 1pc
#15 1pc
#100 1pc
#46 M8*15 2pcs
#99 S5 1pc
#44 OD20*ID8.5*1.5 2pcs
#92 M8*15 4pcs
STEP-4
2
1
46
44
46
44
92
59
15
11
#59 ST4.0*16 2pcs
#11 1pc
#15 1pc
#100 1pc
