TR6.8 Treadmill
9

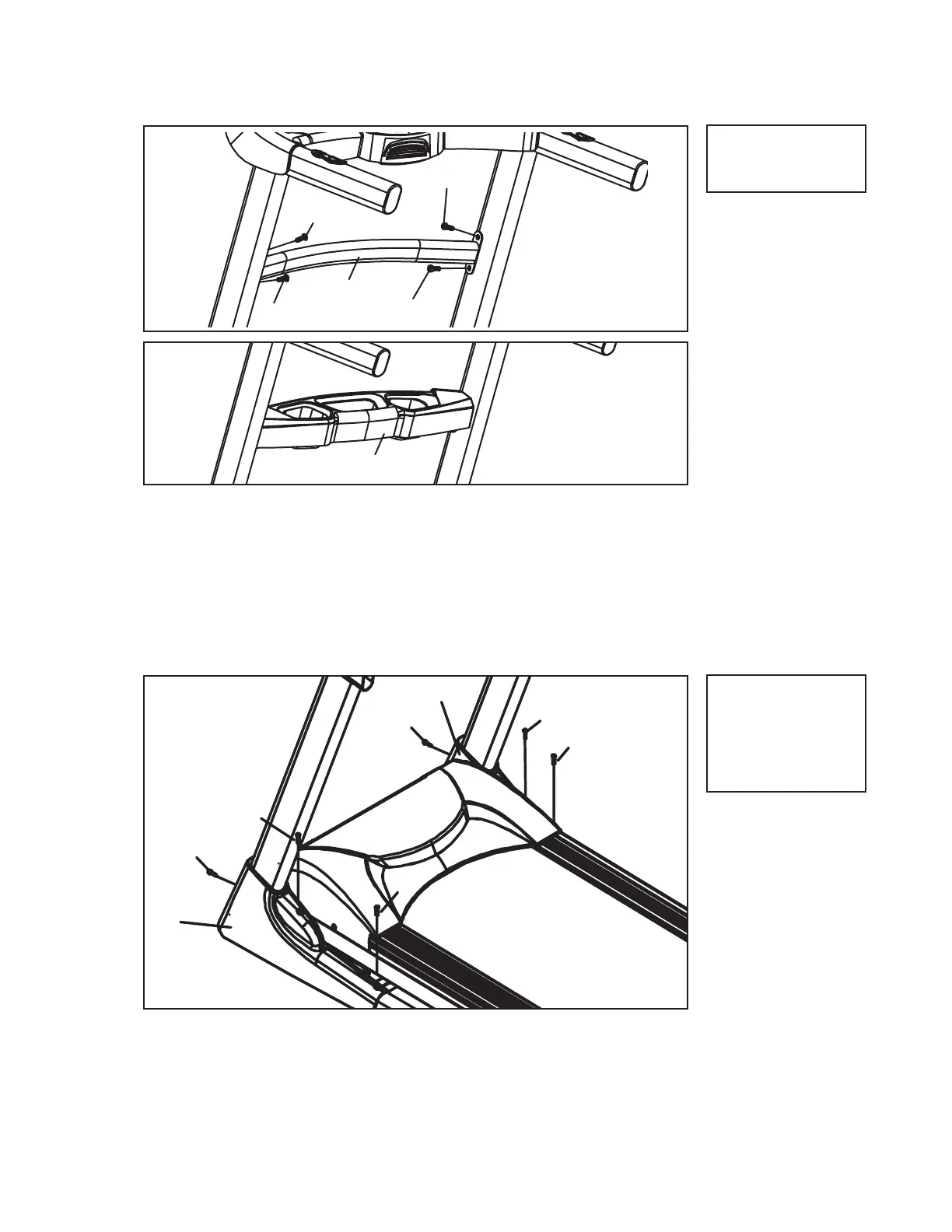

Support Tube & Accessory Tray
6
Hardware Step 6
#93. 5/16” x 15mm
Button Head Socket
Bolt (4 pcs)
1. Install the Console Mast Support Tube (7) between the right and left
Console Mast Tubes. Insert and partially tighten the four Button Head
Bolts (93). When each bolt is inserted, go ahead and tighten the bolts
with the combination Allen Wrench and Phillips Head Screw Driver.
2. Slide the Accessory Tray (160) over the Console Mast Support Tube.
Covers
7
Hardware Step 7
#88. 5 x 16mm
Tapping Screw
(4 pcs)
#95. M5 x 10mm
Phillips Head Screw
(2 pcs)
1. Go back and fully tighten the six Button Head Bolts that connect the Left
and Right Console Mast Tubes to the Base Frame using the
Combination Allen Wrench & Phillips Head Screwdriver (96).
2. Attach the Console Mast Covers to the Upright Tubes (42 & 43) with four
Tapping Screws (88) & two Phillips Head Screws (95). Tighten using the
Combination Allen Wrench & Phillips Head Screw Driver (96).
88
95
88
88
88
95
43
42
93
93
7
160
To Next Page
