Xtralis ADPRO PRO - Field of View and Termination

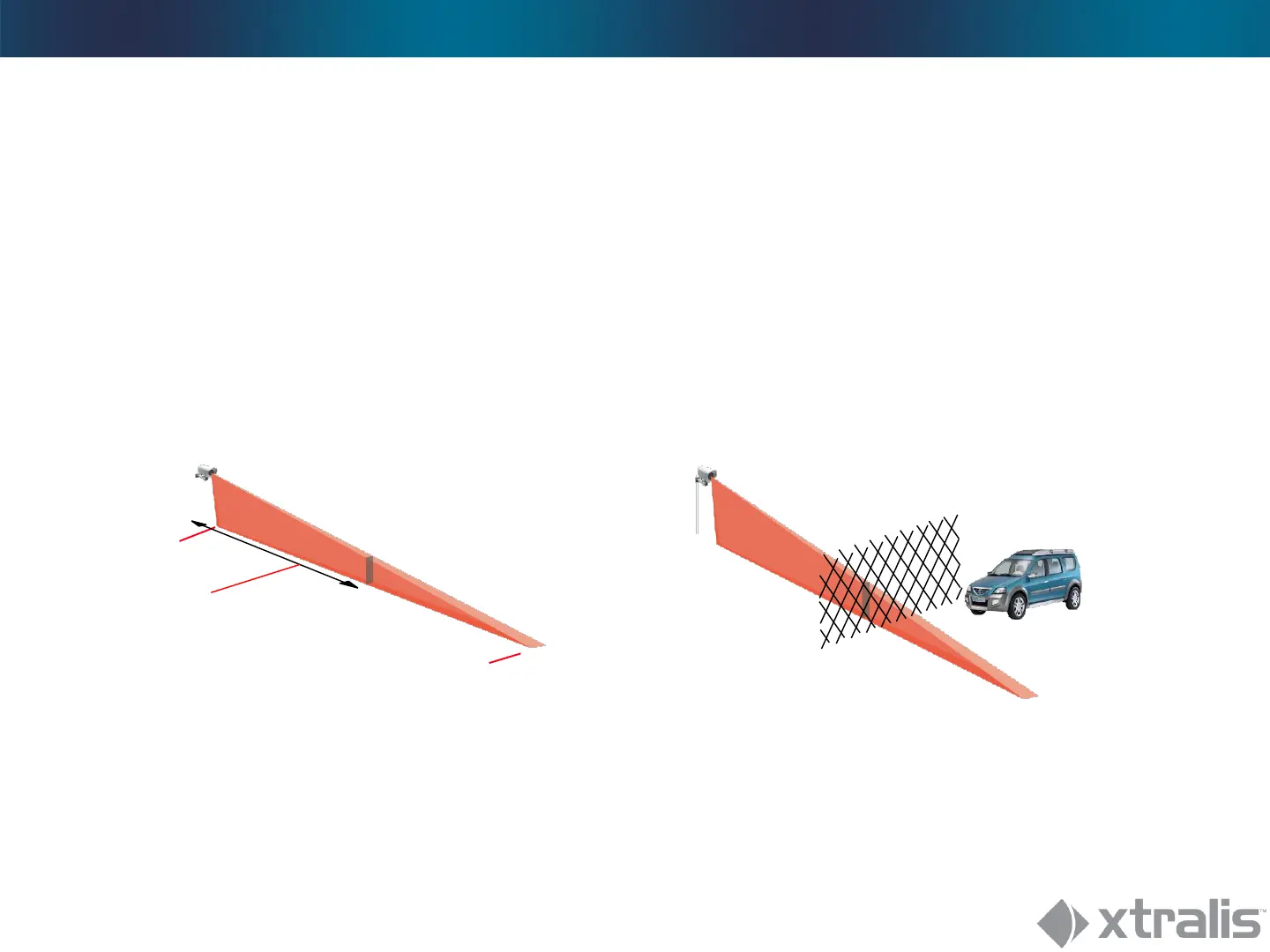

Design Consideration – Wedge shaped Coverage 1
Field of View and Termination
Curtains may detect beyond desired range unless pointed towards
terminating structure! Use of artificial termination if necessary!
Begin of
coverage
Effective end of
coverage (as far
as 1.6 x Nominal
range)
Nominal range
(for example 100
m / 330 ft)

