Xtreamer Prodigy User Manual

Schedule Recording
To enter the Timer list, press RIGHT navigation button when watching TV programs, and
select Schedule Recording from the Side Panel option menu. Here you can Add, Edit, Delete
recording schedules, Change all schedule status and View schedule recording history.

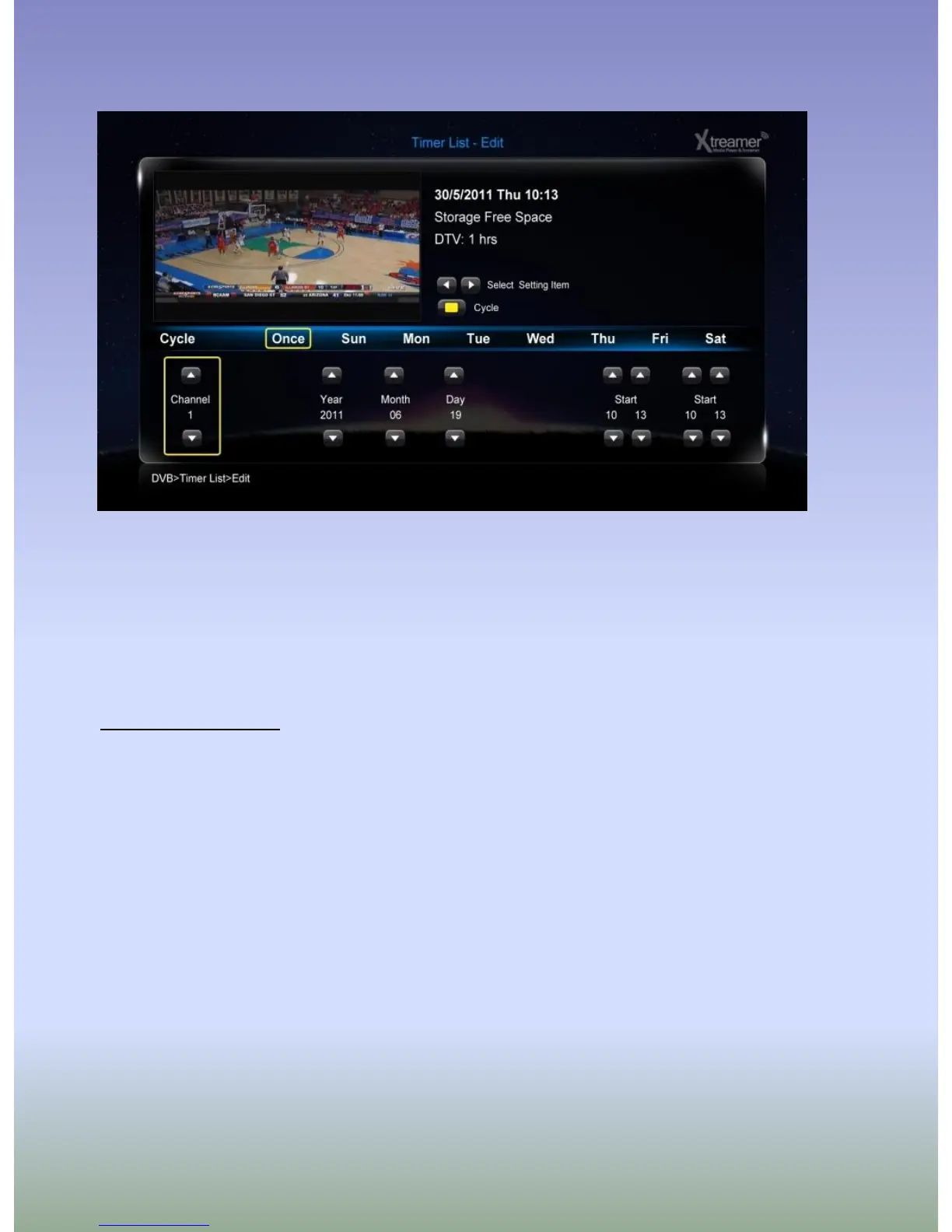

Create a New Schedule
In timer list, press the RECORD button on the remote control to add a new schedule
recording, then the schedule setting screen appears.
Use the Left /Right button on the remote control to move between fields and press the Up /
Down cursor buttons to adjust each setting.
Source
Select the video source or TV channels for the recording.
Start Time
Enter the date and time of the recording.
Length
Enter the length of the recording
Preview
This small preview window will show the current program of the selected channel.

Xtreamer Prodigy Specifications

General

HDD size	3.5 \
HDD interface	Serial ATA
Storage media type	HDD
Built-in storage media	No
Card reader integrated	Yes
Total storage capacity	0 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC
Maximum storage capacity	3 TB
Number of HDDs installed	0
Connectivity technology	Wired
AV output	1
HDMI version	1.4
USB 2.0 ports quantity	2
Networking features	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Audio decoders	Dolby Digital 5.1, Dolby TrueHD
Audio output channels	7.1 channels
Internal memory	512 MB
Internal memory type	DDR3
TV tuner type	DVB-T
Processor frequency	750 MHz
Cables included	HDMI, USB
Number of products included	1 pc(s)
Product color	Silver
Supported radio bands	FM
Audio formats supported	AAC, HE-AAC, LPCM, MP2, MP3, OGG, PCM, WAV, WMA
Image formats supported	BMP, GIF, JPG, PNG, TIF
Video formats supported	ASF, AVI, DAT, FLV, ISO, M4V, MKV, MOV, MP4, MPG, TP, TRP, TS, WMV
Video compression formats	DivX, MPEG1, MPEG2, MPEG4, WMV, Xvid
Subtitle formats supported	smi, srt, ssa, sub, sub+idx
Analog signal format system	NTSC, PAL
AC input voltage	100 - 240 V

Weight and Dimensions

Weight	- g
